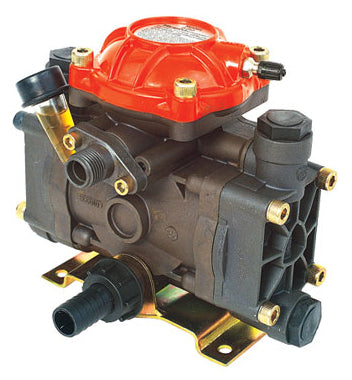

Hypro D252GRGI58 Pump, 5/8 shaft

Hypro D252GRGI58 Pump, 5/8 shaft

Brand:
Hypro
Weight:
14.0 lb
Item #
9910D252GRGI58
1 1

Hypro D252GRGI58 Pump, 5/8 shaft

Hypro D252GRGI58 Pump, 5/8 shaft

Brand:
Hypro
Weight:
14.0 lb
Item #
9910D252GRGI58

$787.20
$787.20 List Price: $1,486.58

Earn 2,362 points with this purchase.

See Details

View full details

Product Overview

Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps and related parts; however, the pumps and repair parts are still available with will not feature factory labeling.

** When you order this pump, you will receive the most current version, AR252-GR-GCI5/8 **

Manufacturer description

6.5 gpm, 362 psi. Hypro/AR medium pressure diaphragm pumps are recommended for spraying herbicides, pesticides, liquid fertilizers, and many other hard-to-handle fluids.

Includes gearbox with 5/8" hollow shaft to mount on 2 to 3.4 hp engines and AR1990 pressure regulator

Resources

Download Product Manual

Features

  • Max flow: 6.5 gpm
  • Max pressure: 362 psi
  • Includes gearbox with 5/8" hollow shaft to mount on 2 to 3.4 hp engines and AR1990 pressure regulator
  • Port sizes: 3/4" HB inlet, 1/2" NPT outlet
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, BlueFlex material
  • Housing: Anodized aluminum
  • Head & Manifold material: Plastic coated aluminum
  • Max fluid temperature: 140°F
  • Weight: 14 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Plug
    • Ref No: 4
    • Part No: 9910620301
    • Qty Req: 2
    Our price: $4.36 List price: $5.23
  • O-Ring
    • Ref No: 5
    • Part No: 9910800380
    • Qty Req: 1
    Our price: $11.83 List price: $14.20
  • Flange
    • Ref No: 6
    • Part No: 9910800020
    • Qty Req: 1
    Our price: $85.60 List price: $93.30
  • 3/4" Solid Shaft
    • Ref No: 7
    • Part No: 9910800172
    • Qty Req: 1
    Our price: $225.61 List price: $282.38
  • Spacer
    • Ref No: 8
    • Part No: 9910800160
    • Qty Req: 1
    Our price: $3.49 List price: $4.48
  • Nut
    • Ref No: 12
    • Part No: 9910390440
    • Qty Req: 4
    Our price: $1.64 List price: $1.97
  • Seal
    • Ref No: 15
    • Part No: 9910800200
    • Qty Req: 1
    Our price: $22.89 List price: $26.37
  • Roller Bearing
    • Ref No: 16
    • Part No: 9910800180
    • Qty Req: 1
    Our price: $31.03 List price: $34.79
  • Stud
    • Ref No: 17
    • Part No: 9910550330
    • Qty Req: 4
    Our price: $3.25 List price: $4.17
  • Piston
    • Ref No: 18
    • Part No: 9910802070
    • Qty Req: 2
    Our price: $51.28 List price: $65.76
  • Connecting Rod
    • Ref No: 19
    • Part No: 9910800140
    • Qty Req: 2
    Our price: $38.75 List price: $49.69
  • Piston Pin
    • Ref No: 20
    • Part No: 9910800130
    • Qty Req: 2
    Our price: $17.61 List price: $21.71
  • Roller Bearing
    • Ref No: 21
    • Part No: 9910480370
    • Qty Req: 1
    Our price: $36.15 List price: $38.08
  • O-Ring
    • Ref No: 22
    • Part No: 9910480440
    • Qty Req: 5
    Our price: $1.91 List price: $2.27
  • Bolt
    • Ref No: 23
    • Part No: 9910680360
    • Qty Req: 1
    Our price: $3.98 List price: $4.78
  • Bolt
    • Ref No: 24
    • Part No: 9910800220
    • Qty Req: 7
    Our price: $3.65 List price: $4.38
  • Sleeve
    • Ref No: 26
    • Part No: 9910800110
    • Qty Req: 2
    Our price: $59.64 List price: $64.27
  • Retaining Bolt
    • Ref No: 27
    • Part No: 9910800090
    • Qty Req: 1
    Our price: $8.97 List price: $11.50
  • Plate
    • Ref No: 28
    • Part No: 9910800350
    • Qty Req: 2
    Our price: $9.65 List price: $12.37
  • Piston Ring
    • Ref No: 30
    • Part No: 9910802080
    • Qty Req: 2
    Our price: $10.86 List price: $13.67
  • Diaphragm Desmopan (Std.)
    • Ref No: 31
    • Part No: 9910800085
    • Qty Req: 2
    Our price: $26.91 List price: $34.50
  • Diaphragm Buna (Opt.)
    • Ref No: 31
    • Part No: 9910800080
    • Qty Req: 2
    Our price: $22.19 List price: $26.19
  • Sleeve
    • Ref No: 32
    • Part No: 9910802050
    • Qty Req: 2
    Our price: $44.00 List price: $56.42
  • Oil Sight Glass
    • Ref No: 34
    • Part No: 9910801960
    • Qty Req: 1
    Our price: $18.00 List price: $22.70
  • Ring Nut
    • Ref No: 35
    • Part No: 9910800520
    • Qty Req: 2
    Our price: $8.82 List price: $11.31
  • O-Ring
    • Ref No: 36
    • Part No: 9910390180
    • Qty Req: 1
    Our price: $1.64 List price: $1.65
  • Barb Nut
    • Ref No: 37
    • Part No: 9910550450
    • Qty Req: 1
    Our price: $4.55 List price: $5.84
  • Hose Barb (Inlet) 3/4"
    • Ref No: 38
    • Part No: 9910800340
    • Qty Req: 1
    Our price: $7.84 List price: $10.11
  • Plug
    • Ref No: 39
    • Part No: 9910800540
    • Qty Req: 1
    Our price: $3.02 List price: $3.87
  • Valve Body
    • Ref No: 40
    • Part No: 9910800400
    • Qty Req: 1
    Our price: $76.74 List price: $85.69
  • Washer
    • Ref No: 41
    • Part No: 9910550331
    • Qty Req: 2
    Our price: $1.64 List price: $1.81
  • Valve
    • Ref No: 43
    • Part No: 9910800430
    • Qty Req: 1
    Our price: $9.57 List price: $11.31
  • Ring Nut
    • Ref No: 45
    • Part No: 9910800500
    • Qty Req: 1
    Our price: $8.44 List price: $10.82
  • Knob
    • Ref No: 46
    • Part No: 9910800510
    • Qty Req: 1
    Our price: $8.97 List price: $11.50
  • Pin
    • Ref No: 47
    • Part No: 9910390330
    • Qty Req: 1
    Our price: $2.74 List price: $2.99
  • O-Ring
    • Ref No: 48
    • Part No: 9910800560
    • Qty Req: 1
    Our price: $1.64 List price: $1.97
  • Positioning Rod
    • Ref No: 49
    • Part No: 9910800490
    • Qty Req: 1
    Our price: $8.72 List price: $11.18
  • Hose Barb ( Outlet ) 3/8"
    • Ref No: 50
    • Part No: 9910800530
    • Qty Req: 1
    Our price: $7.30 List price: $10.11
  • Hose Barb (Bypass) 5/8”
    • Ref No: 51
    • Part No: 9910800670
    • Qty Req: 1
    Our price: $6.16 List price: $8.63
  • Ring Nut
    • Ref No: 52
    • Part No: 9910800680
    • Qty Req: 1
    Our price: $8.82 List price: $11.31
  • O-Ring
    • Ref No: 53
    • Part No: 9910740290
    • Qty Req: 1
    Our price: $2.09 List price: $2.31
  • ATM Scale Adhesive
    • Ref No: 54
    • Part No: 9910800480
    • Qty Req: 1
    Our price: $2.06 List price: $2.08
  • Lower Spring Guide
    • Ref No: 56
    • Part No: 9910800440
    • Qty Req: 1
    Our price: $5.79 List price: $7.43
  • Spring
    • Ref No: 57
    • Part No: 9910800450
    • Qty Req: 1
    Our price: $8.15 List price: $10.45
  • Upper Spring Guide
    • Ref No: 58
    • Part No: 9910800460
    • Qty Req: 1
    Our price: $7.17 List price: $9.20
  • Adjustment Knob
    • Ref No: 59
    • Part No: 9910800470
    • Qty Req: 1
    Our price: $10.91 List price: $13.99
  • Retaining Ring
    • Ref No: 60
    • Part No: 9910480550
    • Qty Req: 1
    Our price: $1.83 List price: $2.08
  • Pump Body
    • Ref No: 61
    • Part No: 9910800010
    • Qty Req: 1
    Our price: $321.03 List price: $326.71
  • Cap
    • Ref No: 62
    • Part No: 9910550057
    • Qty Req: 1
    Our price: $11.83 List price: $15.17
  • Accumulator Diaphragm (Buna-N)
    • Ref No: 63
    • Part No: 9910800190
    • Qty Req: 1
    Our price: $21.57 List price: $27.66
  • Upper Air Chamber
    • Ref No: 64
    • Part No: 9910800230
    • Qty Req: 1
    Our price: $65.69 List price: $69.03
  • Valve
    • Ref No: 65
    • Part No: 9910800650
    • Qty Req: 1
    Our price: $28.46 List price: $36.49
  • Bolt
    • Ref No: 67
    • Part No: 9910540290
    • Qty Req: 4
    Our price: $3.23 List price: $3.66
  • O-Ring
    • Ref No: 70
    • Part No: 9910800210
    • Qty Req: 2
    Our price: $1.64 List price: $1.97
  • Gear
    • Ref No: 80
    • Part No: 9910800280
    • Qty Req: 1
    Our price: $207.02 List price: $237.45
  • Key, for GX160, D30, etc
    • Ref No: 96
    • Part No: 9910881090
    • Qty Req: 1
    Our price: $10.94 List price: $13.02
  • Driver Gear
    • Ref No: 101
    • Part No: 9910800810
    • Qty Req: 1
    Our price: $265.41 List price: $316.58
  • Driver Gear 5/8"
    • Ref No: 101
    • Part No: 9910801230
    • Qty Req: 1
    Our price: $429.04 List price: $548.98
  • Gear Box Body
    • Ref No: 102
    • Part No: 9910800820
    • Qty Req: 1
    Our price: $249.70 List price: $270.56
  • Locating Bolt
    • Ref No: 103
    • Part No: 9910800800
    • Qty Req: 1
    Our price: $10.42 List price: $13.36
  • Seal
    • Ref No: 104
    • Part No: 9910480820
    • Qty Req: 1
    Our price: $27.82 List price: $32.93
  • Hose Barb 3/4"
    • Ref No: 10
    • Part No: 9910550460
    • Qty Req: 2
    Our price: $5.81 List price: $7.46
  • Bolt
    • Ref No: 105
    • Part No: 9910620440
    • Qty Req: 4
    Our price: $12.37 List price: $14.75
  • Flange, 1/2" NPT
    • Ref No: 105
    • Part No: 9910800691
    • Qty Req: 1
    Our price: $51.74 List price: $66.35
  • Bolt
    • Ref No: 10
    • Part No: 9910880280
    • Qty Req: 2
    Our price: $1.74 List price: $1.89
  • Shaft "GR-Version", 3/4"
    • Ref No: 108
    • Part No: 9910800171
    • Qty Req: 1
    Our price: $221.15 List price: $263.05
  • Hypro 9910-KIT1990 Control Unit
    • Ref No: NA
    • Part No: 9910KIT1990
    • Qty Req: 0
    Our price: $130.15 List price: $190.79
  • Bolt
    • Ref No: 11
    • Part No: 9910180431
    • Qty Req: 2
    Our price: $1.79 List price: $2.15
  • Washer
    • Ref No: 11
    • Part No: 9910380241
    • Qty Req: 2
    Our price: $1.64 List price: $2.08
  • Pulley Base
    • Ref No: 112
    • Part No: 9910800311
    • Qty Req: 1
    Our price: $36.00 List price: $46.16
  • Bolt
    • Ref No: 113
    • Part No: 9910320350
    • Qty Req: 4
    Our price: $1.56 List price: $1.86
  • Head
    • Ref No: 124
    • Part No: 9910801940
    • Qty Req: 2
    Our price: $55.52 List price: $73.78
  • O-Ring
    • Ref No: 12
    • Part No: 9910880830
    • Qty Req: 4
    Our price: $2.06 List price: $2.30
  • O-Ring
    • Ref No: 12
    • Part No: 9910550040
    • Qty Req: 1
    Our price: $1.92 List price: $2.18
