Hypro/Pentair is no longer distributing the 9910 series of diaphragm pumps, components, and related parts; however, the pump and repair parts are still available and will now feature factory labeling.

** When you order this pump, you will receive the most current version, AR250BP-C/C **

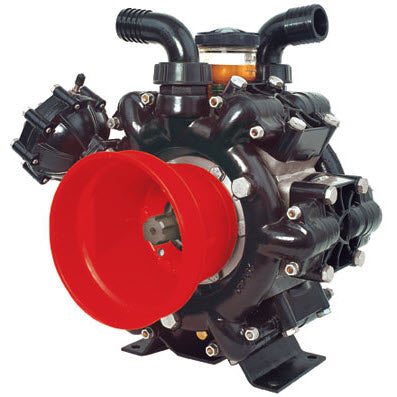

With low-cost maintenance and operation that's low in wear and tear, this Hypro/AR D250 Diaphragm Pump is a wise choice for your medium or large-sized sprayer assembly. It's tooled with a maximum flow rate of 66 GPM and an upper pressure limit of 290 PSI. That means it's ideal for medium-pressure spraying, especially for the deployment of liquid fertilizer, pesticide and herbicide.

Hypro/AR low pressure diaphragm pumps are recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to-handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs. Pressure and output are designed for optimum performance of medium to large sized sprayers. Hypro low pressure diaphragm pumps can be adapted for splined shaft, hollow shaft, and solid shaft drive options. Pumps include a pulsation dampener.

Download Product Manual

• Max flow: 66 gpm
• Max pressure: 290 psi
• Shaft: Dual 1-3/8" 6 spline male PTO shaft
• Port sizes: 2" HB inlet, 1-1/2" HB outlet
• Pump shaft rotation: CW and CCW
• Diaphragms: 6, semi-hydraulic, BlueFlex
• Housing: Anodized aluminum
• Mounting base: Included

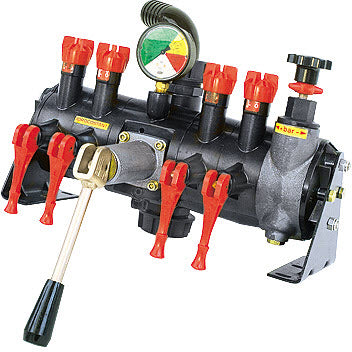

• Recommended control unit: 3300-0082/Idrominus (remote mount)
• Max fluid temperature: 140°F
• Weight: 92 lbs
