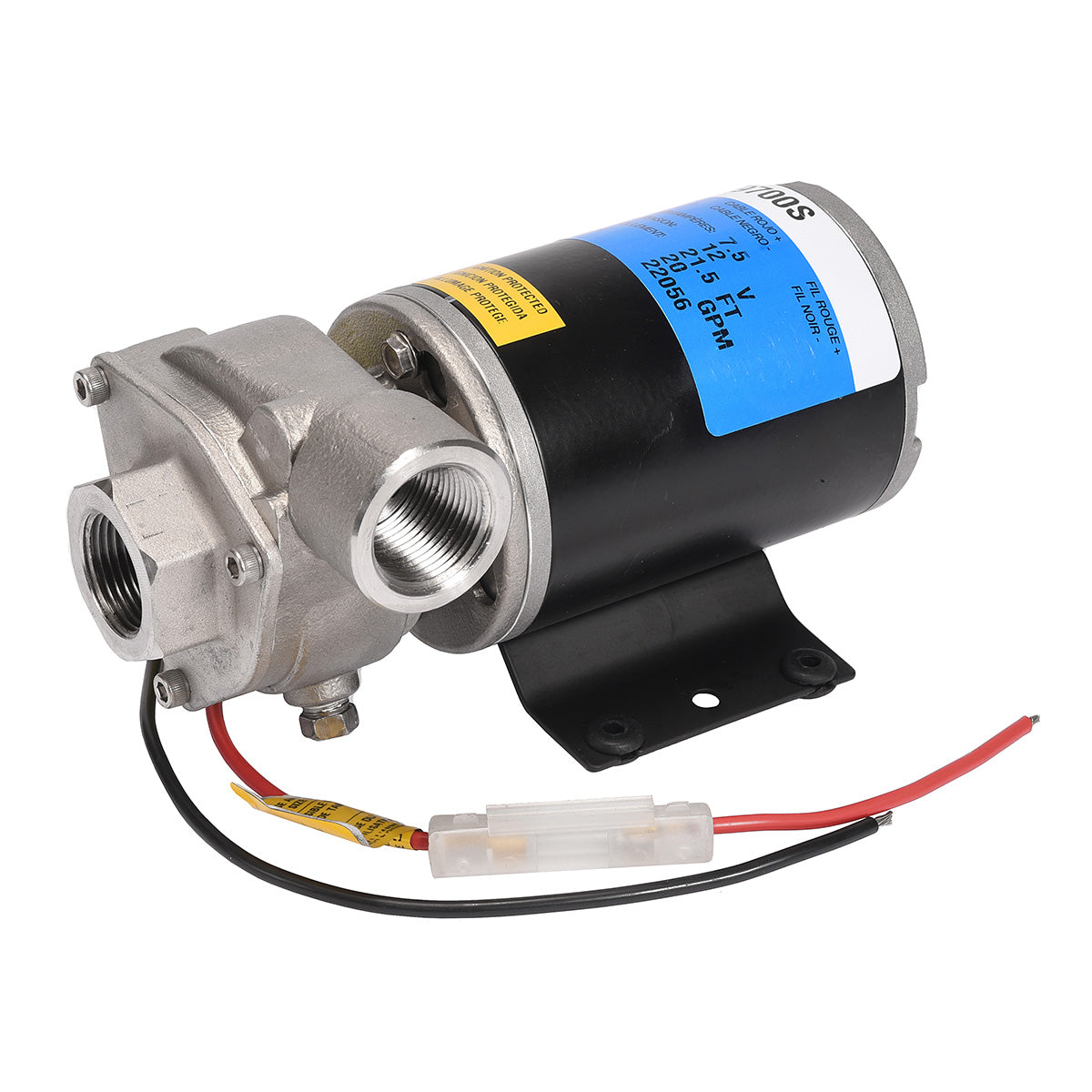

Hypro 9700S (Stainless Steel) Aqua-Tiger 12V Pump

Hypro 9700S (Stainless Steel) Aqua-Tiger 12V Pump

Brand:
Hypro
Weight:
6.3 lb
Item #
9700S
Skip to product information
1 of 1

Hypro 9700S (Stainless Steel) Aqua-Tiger 12V Pump

Hypro 9700S (Stainless Steel) Aqua-Tiger 12V Pump

Brand:
Hypro
Weight:
6.3 lb
Item #
9700S

Regular price $432.29
Sale price $432.29 Regular price List Price: $720.49

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 1,297 points with this purchase.

View full details

Collapsible content

Product Overview

A stainless steel impeller and housing are the main features of this Hypro Aqua-Tiger 12V pump that make it durable for your everyday needs. Designed for any general pumping situation, this pump requires a flooded intake. It's perfect for any application that doesn't require self-priming. The closed-coupled design for the 12-volt DC electric motor allows for a rotating discharge, making mounting simple. All the enclosed parts add to the low maintenance design and allow for excellent performance.

Manufacturer description

The Aqua-Tiger is suitable for general pumping applications where a flooded intake is provided. Typical applications include livewell filling and circulation and any other application not requiring a self-priming pump.

Features

  • Max flow: 19 gpm
  • Max pressure: 7 psi
  • Voltage: 12 VDC
  • Housing: Stainless steel
  • Impeller: Stainless steel
  • Seal: Mechanical
  • Max Draw: 11 amps
  • Port size: 3/4" FNPT
  • Weight: 5 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cover Screw
    • Ref No: 1
    • Part No: 22100124
    • Qty Req: 3
    Our price: $0.73 List price: $0.90
  • Cover
    • Ref No: 2
    • Part No: 23660
    • Qty Req: 1
    Our price: $69.05 List price: $85.25
  • O-Ring (Viton)
    • Ref No: 3
    • Part No: 19898SHU
    • Qty Req: 1
    Our price: $31.80 List price: $39.75
  • Impeller
    • Ref No: 4
    • Part No: 23659
    • Qty Req: 1
    Our price: $61.69 List price: $77.11
  • Mechanical Seal Assembly
    • Ref No: 5
    • Part No: 23665SSHU
    • Qty Req: 1
    Our price: $190.40 List price: $238.00
  • Pipe Plug
    • Ref No: 6
    • Part No: 21059
    • Qty Req: 1
    Our price: $4.13 List price: $5.10
  • Hex Head Screw
    • Ref No: 7
    • Part No: 22100123
    • Qty Req: 2
    Our price: $0.97 List price: $1.20
  • Housing
    • Ref No: 8
    • Part No: 23627
    • Qty Req: 1
    Our price: $121.09 List price: $149.50
  • Grommet
    • Ref No: 10
    • Part No: 21138
    • Qty Req: 4
    Our price: $0.97 List price: $1.20
  • Motor 12VDC (TENV)
    • Ref No: 11
    • Part No: 23697SSHU
    • Qty Req: 1
    Our price: $392.00 List price: $490.00
  • Set Screw
    • Ref No: 12
    • Part No: 19929
    • Qty Req: 1
    Our price: $1.32 List price: $1.45
