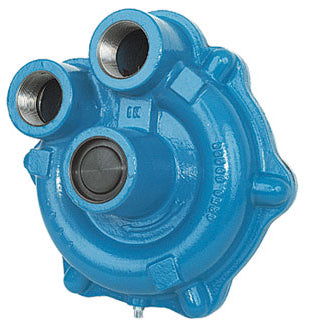

Hypro 9600C Centrifugal Pump

Hypro 9600C Centrifugal Pump

Item Code:
9600C
Weight:
28.0 lb
Manufacturer:
Hypro
Our price:
$0.00
List price:
$0.00
Overview:

***Pump is now obsolete. Parts still available.  Delavan offers a replacement.  Please see P/N 26556-4 or 26556-11.***

100 gpm, 100 psi. Max RPM 1000.

Pump Shaft rotation is CCW.

1-1/2" NPT inlet, 1-1/2" NPT outlet.

Hypro's turbine pump is a high-capacity, low-pressure spray pump that is designed specifically for tractors with a 1000 rpm PTO. The 9600C is built using a heavy-duty cast iron body and glass-filled Valox impeller for wear resistance. The shaft is stainless steel and the lip seals are Viton® for corrosion protection.

The 9600C is a direct drive pump for high-volume spraying or liquid transfer applications. The pump features include large 1-1/2" ports, a 15/16" shaft with 1/4" keyway. Heavy-duty sealed bearings are used for longer life in agricultural spraying applications.

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 3
  • Part No: 12010015
  • Qty Req: 1
Our price: $103.68 List price: $128.00
  • Ref No: 4
  • Part No: 05009600
  • Qty Req: 1
Our price: $82.62 List price: $97.50
  • Ref No: 10
  • Part No: 20080001
  • Qty Req: 2
Our price: $16.89 List price: $20.85
  • Ref No: 11
  • Part No: 21120003
  • Qty Req: 2
Our price: $18.62 List price: $22.99
  • Ref No: 12
  • Part No: 23000020
  • Qty Req: 1
Our price: $1.65 List price: $2.04
  • Ref No: 13
  • Part No: 22100026
  • Qty Req: 6
Our price: $1.13 List price: $1.39
