Hypro 9403C-540Q Centrifugal Pump

Hypro 9403C-540Q Centrifugal Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9403C540Q
1 1

Hypro 9403C-540Q Centrifugal Pump

Hypro 9403C-540Q Centrifugal Pump

Brand:
Hypro
Weight:
45.0 lb
Item #
9403C540Q

$1,234.70
$1,234.70 List Price: $2,244.91

Earn 3,704 points with this purchase.

See Details

View full details

Product Overview

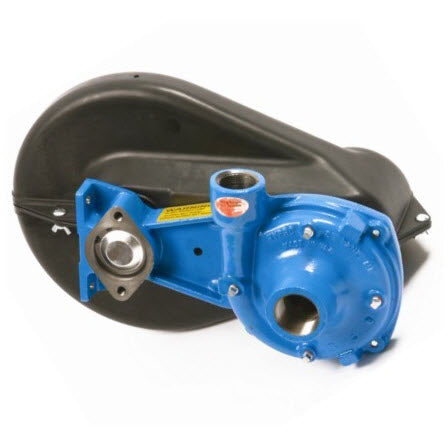

Hypro 9403C-540Q Belt-Driven Cast Iron Centrifugal Pump.

140 gpm, 104 psi. 1-1/2" NPT Inlet, 1-1/4" NPT Outlet.

1-3/8" 6-Spline Quick Coupler, 600 Max RPM. CCW Rotation.

Features:

-12-groove belt.

-Spring-loaded belt tensioner.

-Nylon Impeller on Cast Iron models, Polypropylene Impeller on S.S. and Poly models.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron, stainless steel and polypropylene that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. Polypropylene pumps are lightweight and provide excellent resistance to corrosive chemicals.

T

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (w / SS wear ring)
    • Ref No: 2
    • Part No: 01509000C
    • Qty Req: 1
    Our price: $260.71 List price: $321.87
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller, Nylon
    • Ref No: 4
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $58.51 List price: $72.24
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 6
    • Part No: 21200008
    • Qty Req: 1
    Our price: $35.62 List price: $43.97
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 6
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Slinger Seal
    • Ref No: 8
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Mounting Flange (Cast Iron Series)
    • Ref No: 9
    • Part No: 07509200C3
    • Qty Req: 1
    Our price: $195.81 List price: $241.74
  • Nameplate
    • Ref No: 10
    • Part No: 60310252
    • Qty Req: 1
    Our price: $2.30 List price: $2.84
  • Hex Head Cap Screw
    • Ref No: 11
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 3
    Our price: $12.57 List price: $15.52
  • Key (Cast Iron Series)
    • Ref No: 13
    • Part No: 16100015
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Pump Shaft
    • Ref No: 14
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 15
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 16
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Gasket
    • Ref No: 17
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • Pedestal Bracket
    • Ref No: 18
    • Part No: 07039400D
    • Qty Req: 1
    Our price: $361.32 List price: $446.07
  • Driver Shaft Bearings
    • Ref No: 19
    • Part No: 20010006
    • Qty Req: 2
    Our price: $25.58 List price: $31.58
  • Driver Shaft Bearing Retainer Ring
    • Ref No: 20
    • Part No: 18100012
    • Qty Req: 1
    Our price: $2.35 List price: $2.90
  • Bearing Spacer
    • Ref No: 21
    • Part No: 14100094
    • Qty Req: 1
    Our price: $39.67 List price: $48.98
  • End Cap
    • Ref No: 22
    • Part No: 28400053
    • Qty Req: 1
    Our price: $26.67 List price: $32.93
  • Bearing Bore Retaining Ring
    • Ref No: 23
    • Part No: 18200032
    • Qty Req: 1
    Our price: $4.65 List price: $5.74
  • Driver Pulley (540 rpm)
    • Ref No: 24
    • Part No: 31150031
    • Qty Req: 1
    Our price: $389.30 List price: $480.62
  • Key (Driver Pulley)
    • Ref No: 25
    • Part No: 16100033
    • Qty Req: 1
    Our price: $9.36 List price: $11.56
  • Retaining Ring (Driver Pulley)
    • Ref No: 26
    • Part No: 18100031
    • Qty Req: 1
    Our price: $4.92 List price: $6.07
  • Shaft (540 rpm)
    • Ref No: 27
    • Part No: 05559400F
    • Qty Req: 1
    Our price: $380.88 List price: $476.10
  • Shaft (540 Quick Coupler)
    • Ref No: 28
    • Part No: 05559400F1
    • Qty Req: 1
    Our price: $476.18 List price: $587.88
  • Coupler Ball, Plastic
    • Ref No: 28A
    • Part No: 32500004
    • Qty Req: 3
    Our price: $1.49 List price: $1.84
  • Collar Spring
    • Ref No: 28B
    • Part No: 19000115
    • Qty Req: 1
    Our price: $23.65 List price: $29.20
  • Collar
    • Ref No: 28C
    • Part No: 14000021
    • Qty Req: 1
    Our price: $74.16 List price: $91.55
  • Shaft
    • Ref No: NA
    • Part No: 05039400
    • Qty Req: 0
    Our price: $223.62 List price: $276.07
  • Driven Pulley (5/8" dia. bore)
    • Ref No: 30
    • Part No: 31150034
    • Qty Req: 1
    Our price: $148.29 List price: $183.08
  • Set Screw
    • Ref No: 31
    • Part No: 22300003
    • Qty Req: 2
    Our price: $1.12 List price: $1.38
  • Idler Bracket
    • Ref No: 32
    • Part No: 07069400C
    • Qty Req: 1
    Our price: $104.65 List price: $129.20
  • Grease Zerk Fitting
    • Ref No: 33
    • Part No: 24050003
    • Qty Req: 1
    Our price: $12.61 List price: $15.57
  • Retaining Ring
    • Ref No: 34
    • Part No: 18100036
    • Qty Req: 1
    Our price: $6.25 List price: $7.72
  • Idler Pulley
    • Ref No: 35
    • Part No: 31150036
    • Qty Req: 1
    Our price: $65.17 List price: $80.46
  • Spacer (Idler Pulley)
    • Ref No: 36
    • Part No: 14100095
    • Qty Req: 1
    Our price: $9.27 List price: $11.45
  • Torsion Spring
    • Ref No: 38
    • Part No: 19000156
    • Qty Req: 1
    Our price: $20.73 List price: $25.59
  • Idler Bolt/ Shaft
    • Ref No: 39
    • Part No: 22100111
    • Qty Req: 1
    Our price: $4.27 List price: $5.27
  • Belt shield
    • Ref No: 40
    • Part No: 28400075
    • Qty Req: 1
    Our price: $34.12 List price: $42.12
  • Belt Shield
    • Ref No: 41
    • Part No: 28400076
    • Qty Req: 1
    Our price: $34.12 List price: $42.12
  • Bracket for Belt Shield
    • Ref No: 42
    • Part No: 15200062
    • Qty Req: 1
    Our price: $20.14 List price: $24.87
  • Hex Head Cap Screw
    • Ref No: 43
    • Part No: 22100021
    • Qty Req: 1
    Our price: $1.14 List price: $1.41
  • Assembly Bolts for Shield
    • Ref No: 44
    • Part No: 22400017
    • Qty Req: 4
    Our price: $1.26 List price: $1.56
  • Assembly Nuts for Shield
    • Ref No: 45
    • Part No: 22520002
    • Qty Req: 4
    Our price: $1.22 List price: $1.50
  • Poly V-Belt (540 rpm)
    • Ref No: 46
    • Part No: 31000006
    • Qty Req: 1
    Our price: $101.38 List price: $125.16
  • Bolts for Pump to Bracket
    • Ref No: 47
    • Part No: 22100055
    • Qty Req: 2
    Our price: $0.95 List price: $1.17
  • Lock Washers for Bracket Bolts
    • Ref No: 48
    • Part No: 22600006
    • Qty Req: 2
    Our price: $0.99 List price: $1.22
  • Roll Pin
    • Ref No: 49
    • Part No: 16000070
    • Qty Req: 2
    Our price: $1.14 List price: $1.41
