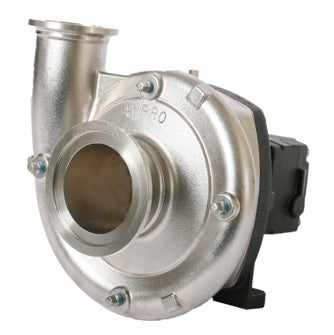

Hypro 9316S3U-M16 ForceField Hydraulic Driven Centrifugal Pump

Hypro 9316S3U-M16 ForceField Hydraulic Driven Centrifugal Pump

Brand:
Hypro
Weight:
40.0 lb
Item #
9316S3UM16
Skip to product information
1 of 1

Hypro 9316S3U-M16 ForceField Hydraulic Driven Centrifugal Pump

Hypro 9316S3U-M16 ForceField Hydraulic Driven Centrifugal Pump

Brand:
Hypro
Weight:
40.0 lb
Item #
9316S3UM16

Regular price $2,905.53
Sale price $2,905.53 Regular price List Price: $5,282.79

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 8,717 points with this purchase.

View full details

Collapsible content

Product Overview

Enjoy less downtime and minimize repair costs with the new ForceField® Wet Seal technology from Hypro. Whether you need to spray water, herbicides, insecticides, emulsives, wettable powders, liquid fertilizers or any other agricultural or industrial fluid, this centrifugal pump from Hypro can handle it. Available with a cast iron or stainless steel pump head and with multiple hydraulic motor options you can find a pump to fit your exact specifications. Hypro's unique and efficient design reduces the space that you need to mount the pump, making this one of the most convenient choices.

Manufacturer description

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro 9310 series ForceField® hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro "close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes the 9313, 9314 and 9316 pump models.
  • ForceField® Technology is a superior wet seal technology that provides the ultimate protection for the m

Features

  • Max flow: 307 gpm
  • Max pressure: 128 psi
  • Port sizes: 300 x 220 universal flange
  • Housing: Stainless Steel
  • Seal: ForceField® Technology - Self regulated wet seal chamber with Viton®/Silicon Carbide seal
  • Impeller: GTX
  • Hydraulic system: Open/Closed, Max 24 gpm
  • Hydraulic motor ports: SAE -8 inlet, SAE -10 outlet
  • Current Hypro equivalent pump: 9306S-HM3C-3U
  • Max fluid temperature: 140¬∞F
  • Weight: 40 lbs
