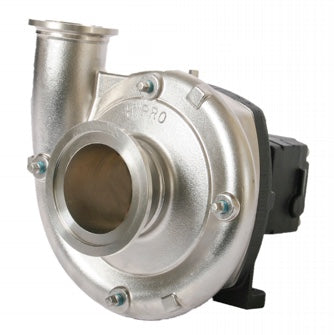

Hypro 9313SU-M16 ForceField Hydraulic Driven Centrifugal Pump

Hypro 9313SU-M16 ForceField Hydraulic Driven Centrifugal Pump

Item Code:
40.0 lb
Our price:
List price:

Enjoy less downtime and minimize repair costs with the new ForceField® Wet Seal technology from Hypro. Whether you need to spray water, herbicides, insecticides, emulsives, wettable powders, liquid fertilizers or any other agricultural or industrial fluid, this centrifugal pump from Hypro can handle it. Available with a cast iron or stainless steel pump head and with multiple hydraulic motor options you can find a pump to fit your exact specifications. Hypro's unique and efficient design reduces the space that you need to mount the pump, making this one of the most convenient choices.

Manufacturer Description:

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro 9310 series ForceField® hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro "close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes the 9313, 9314 and 9316 pump models.
  • ForceField® Technology is a superior wet seal technology that provides the ultimate protection for the mechanical seal and avoids costly downtime
  • Protects the mechanical seal against common failures related to dry run and chemical bonding by using a barrier fluid to keep it cool and lubricated
  • Actively maintains a pressure differential between the barrier fluid and the pump solution, which results in longer life and worry free operation
  • Depending on the model the pumps are capable of flows up to 311 GPM and pressures up to 150 PSI
  • Designed to be drop-in replacement for standard Hypro hydraulically driven centrifugal pumps


  • Max flow: 194 gpm
  • Max pressure: 103 psi
  • Port sizes: 220 x 200 universal flange
  • Housing: Stainless steel
  • Seal: ForceField® Technology - Self regulated wet seal chamber with Viton®/Silicon Carbide seal
  • Impeller: GTX
  • Hydraulic system: Open/Closed, Max 20 gpm
  • Hydraulic motor ports: SAE -8 inlet, SAE -10 outlet
  • Current Hypro equivalent pump: 9303S-HM3C-U
  • Max fluid temperature: 140°F
  • Weight: 40 lbs
