Hypro 9307CWS-GM12 Centrifugal Pump

Hypro 9307CWS-GM12 Centrifugal Pump

Brand:
Hypro
Weight:
87.0 lb
Item #
9307CWSGM12

$5,553.63
$5,553.63 List Price: $10,097.51

Earn 16,661 points with this purchase.

See Details

View full details

Product Overview

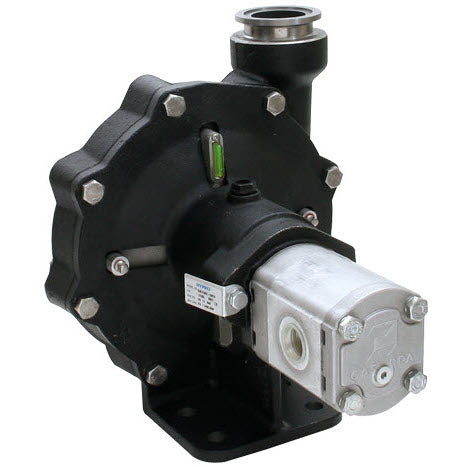

Hypro 9307CWS-GM12 Centrifugal Pump

Cast Iron, Hydraulically Driven with ForceField Technology.

370 gpm, 135 psi. Max Hydraulic 23 gpm. For Open/Closed Systems.  316 Stainless Steel Impeller.

300 Universal Flange Inlet x 220 Universal Flange Outlet.

NEW ForceField seal technology:

    Resources

    Download Product Manual

    Parts breakdown

    Diagram

    Diagram parts

    Parts list

    • Pump Casing (Universal Flange)
      • Ref No: 1
      • Part No: 01519300C
      • Qty Req: 1
      Our price: $2,284.07 List price: $2,819.84
    • Pipe Plug
      • Ref No: 2
      • Part No: 24060039
      • Qty Req: 4
      Our price: $75.56 List price: $93.28
    • Acorn Nut
      • Ref No: 3
      • Part No: 22530010
      • Qty Req: 1
      Our price: $55.39 List price: $68.38
    • Washer
      • Ref No: 4
      • Part No: 22700094
      • Qty Req: 1
      Our price: $13.27 List price: $16.38
    • Impeller
      • Ref No: 5
      • Part No: 04019307S
      • Qty Req: 1
      Our price: $1,390.90 List price: $1,717.15
    • Key
      • Ref No: 6
      • Part No: 16100058
      • Qty Req: 1
      Our price: $12.80 List price: $15.80
    • Drain Plug
      • Ref No: 13
      • Part No: 24060016
      • Qty Req: 2
      Our price: $11.21 List price: $13.84
    • O-Ring
      • Ref No: 14
      • Part No: 23358
      • Qty Req: 1
      Our price: $3.94 List price: $4.70
    • Shaft Assembly
      • Ref No: 17
      • Part No: 05029307
      • Qty Req: 1
      Our price: $437.17 List price: $539.72
    • Retaining Ring
      • Ref No: 18
      • Part No: 18200040
      • Qty Req: 1
      Our price: $34.18 List price: $42.20
    • Bearing
      • Ref No: 19
      • Part No: 20050006
      • Qty Req: 1
      Our price: $174.11 List price: $214.95
    • Pedestal
      • Ref No: 20
      • Part No: 07579300C
      • Qty Req: 1
      Our price: $1,117.13 List price: $1,379.17
    • Bolt
      • Ref No: 21
      • Part No: 22100131
      • Qty Req: 8
      Our price: $8.05 List price: $9.94
    • Plug, 5/8" Black Poly
      • Ref No: 23
      • Part No: 23000040
      • Qty Req: 1
      Our price: $3.62 List price: $4.46
    • Retainer Ring
      • Ref No: 24
      • Part No: 18100001
      • Qty Req: 2
      Our price: $2.26 List price: $2.78
    • Bearing
      • Ref No: 27
      • Part No: 20070063
      • Qty Req: 1
      Our price: $60.17 List price: $74.28
    • Hydraulic Motor
      • Ref No: 28
      • Part No: 25000286
      • Qty Req: 1
      Our price: $2,072.55 List price: $3,768.27
    • Hex Head Capscrew
      • Ref No: 29
      • Part No: 22100026
      • Qty Req: 2
      Our price: $1.67 List price: $2.06
