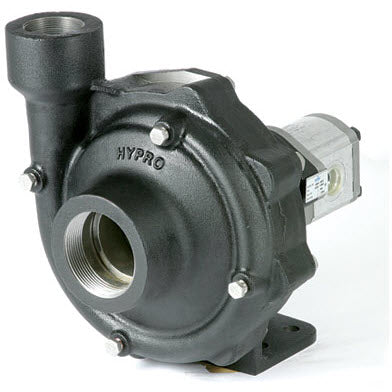

Hypro 9307C-GM10 Centrifugal Pump

Hypro 9307C-GM10 Centrifugal Pump

Brand:
Hypro
Weight:
86.0 lb
Item #
9307CGM10

Regular price $4,594.10
Sale price $4,594.10 Regular price List Price: $8,352.91

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 13,782 points with this purchase.

View full details

Collapsible content

Product Overview

370 gpm, 135 psi. Max Hydraulic 20 gpm. For Open/Closed Systems.

3" NPT inlet, 2" NPT outlet.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.

Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides.

The series includes models 9307C-GM10 and 9307C-GM10-U.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing
    • Ref No: 1
    • Part No: 01509300C
    • Qty Req: 1
    Our price: $1,680.54 List price: $2,074.74
  • Pipe Plug
    • Ref No: 2
    • Part No: 24060039
    • Qty Req: 4
    Our price: $51.31 List price: $63.35
  • Acorn Nut
    • Ref No: 3
    • Part No: 22530010
    • Qty Req: 1
    Our price: $47.73 List price: $58.93
  • Washer
    • Ref No: 4
    • Part No: 22700094
    • Qty Req: 1
    Our price: $11.43 List price: $14.11
  • Impeller
    • Ref No: 5
    • Part No: 04009300S
    • Qty Req: 1
    Our price: $1,198.34 List price: $1,479.43
  • Key
    • Ref No: 6
    • Part No: 16100058
    • Qty Req: 1
    Our price: $11.19 List price: $13.82
  • Mechanical Seal
    • Ref No: 8
    • Part No: 21200043
    • Qty Req: 1
    Our price: $396.00 List price: $396.00
  • Seal Plate
    • Ref No: 9
    • Part No: 07559300C
    • Qty Req: 1
    Our price: $470.08 List price: $580.34
  • Slinger
    • Ref No: 10
    • Part No: 22700093
    • Qty Req: 1
    Our price: $33.09 List price: $40.85
  • Retaining Ring
    • Ref No: 11
    • Part No: 18200040
    • Qty Req: 1
    Our price: $29.76 List price: $36.74
  • Bearing
    • Ref No: 12
    • Part No: 20050006
    • Qty Req: 1
    Our price: $150.06 List price: $185.26
  • Retainer Ring
    • Ref No: 13
    • Part No: 18100001
    • Qty Req: 2
    Our price: $1.92 List price: $2.37
  • Shaft Assembly
    • Ref No: 14
    • Part No: 05009305
    • Qty Req: 1
    Our price: $450.21 List price: $555.82
  • Bearing
    • Ref No: 15
    • Part No: 20070063
    • Qty Req: 1
    Our price: $51.86 List price: $64.02
  • Pedestal
    • Ref No: 16
    • Part No: 07579300C
    • Qty Req: 1
    Our price: $939.02 List price: $1,159.28
  • O-Ring
    • Ref No: 17
    • Part No: 17200209
    • Qty Req: 1
    Our price: $1.12 List price: $1.38
  • Plug, 5/8" Black Poly
    • Ref No: 18
    • Part No: 23000040
    • Qty Req: 1
    Our price: $3.11 List price: $3.84
  • Bolt
    • Ref No: 19
    • Part No: 22100131
    • Qty Req: 8
    Our price: $5.47 List price: $6.75
  • Hex Head Capscrew
    • Ref No: 20
    • Part No: 22100026
    • Qty Req: 2
    Our price: $1.18 List price: $1.46
  • Hydraulic Motor (GM10)
    • Ref No: 21
    • Part No: 25000036
    • Qty Req: 1
    Our price: $1,294.32 List price: $1,597.93
