Hypro 9307C-GM12 Centrifugal Pump

Hypro 9307C-GM12 Centrifugal Pump

Brand:
Hypro
Weight:
91.0 lb
Item #
9307CGM12
Skip to product information
1 of 1

Hypro 9307C-GM12 Centrifugal Pump

Hypro 9307C-GM12 Centrifugal Pump

Brand:
Hypro
Weight:
91.0 lb
Item #
9307CGM12

Regular price $4,594.10
Sale price $4,594.10 Regular price List Price: $8,352.91

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 13,782 points with this purchase.

View full details

Collapsible content

Product Overview

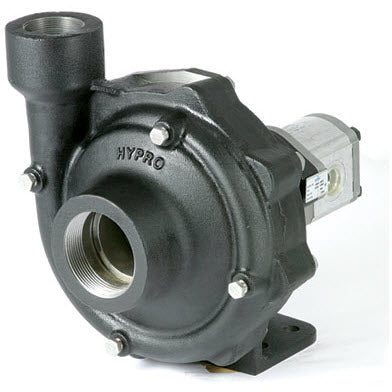

Hypro 9307C-GM12 Centrifugal Pump

Manufacturer description

This hydraulically-driven, cast iron centrifugal pump achieves a max of 370 gpm (1400 lpm) and a max of 135 psi (9.3 bar). The Hypro "close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

Features

  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • Port sizes: 3" NPT inlet, 2" NPT outlet
  • Max flow: 370 gpm
  • Max pressure: 135 psi
  • 300 x 220 universal flange available (U)
  • Max. fluid temperature: 140°F/60°C
  • Impeller: stainless steel
  • Motor: external gear
  • Max hyd: 23 gpm
  • Hydraulic ports: -10 SAE inlet and -12 SAE outlet
  • Max. motor psi: 3000 (bar: 207)
  • Pump seals: Life Guard silicon carbide standard
  • Life Guard seals are the industry standard on OEM equipment

Parts breakdown

Diagram

Diagram parts
