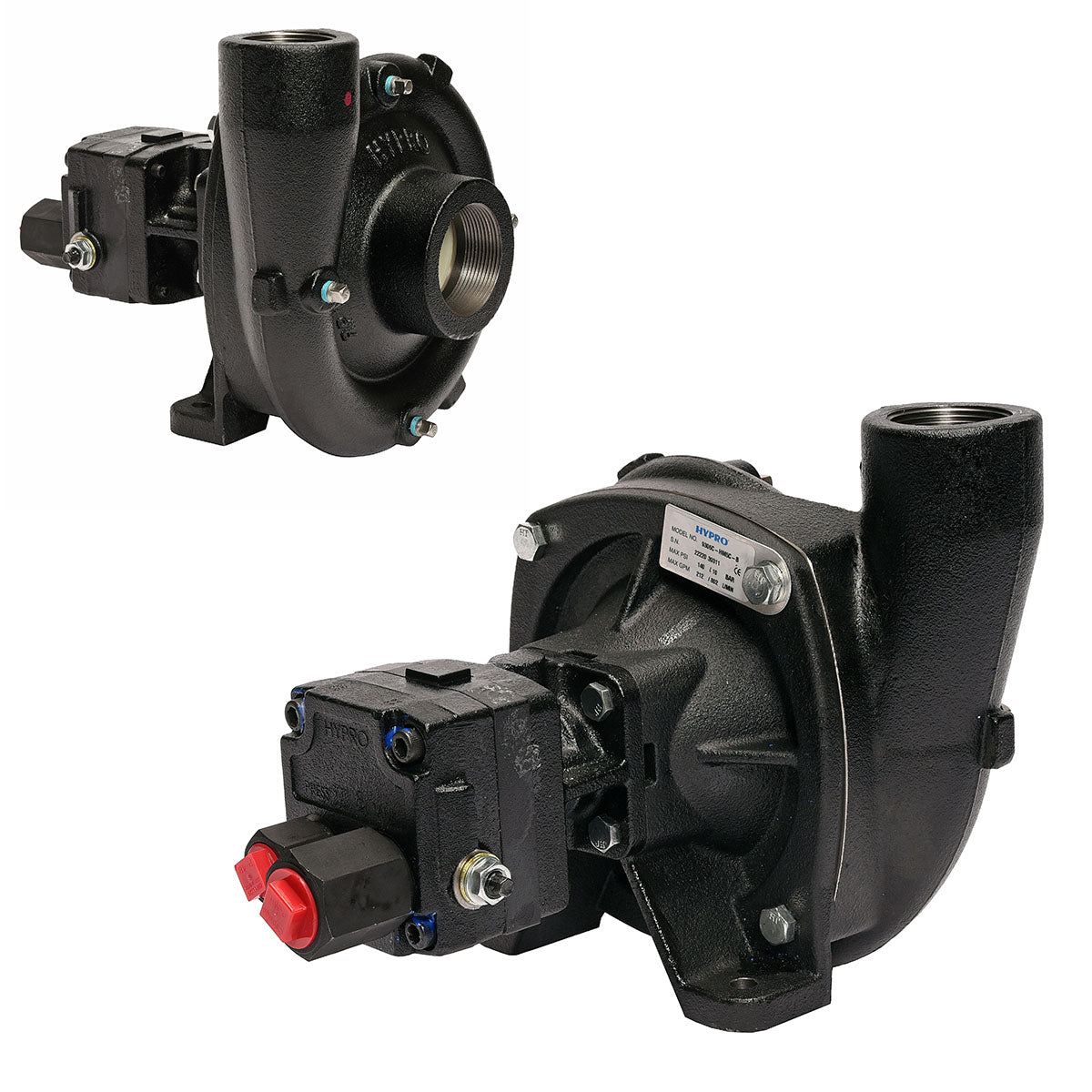

Hypro 9306C-HM5C-B Centrifugal Pump

Hypro 9306C-HM5C-B Centrifugal Pump

Brand:
Hypro
Weight:
34.0 lb
Item #
9306CHM5CB
1 review
Skip to product information
1 of 1

Hypro 9306C-HM5C-B Centrifugal Pump

Hypro 9306C-HM5C-B Centrifugal Pump

Brand:
Hypro
Weight:
34.0 lb
Item #
9306CHM5CB
1 review

Regular price $1,227.74
Sale price $1,227.74 Regular price List Price: $2,232.26

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,683 points with this purchase.

View full details

Collapsible content

Product Overview

Deliver a wide range of fluids efficiently and precisely with a centrifugal pump designed to handle water, emulsives, herbicides, insecticides, wettable powders, liquid fertilizer, and more. Smooth performance is delivered by the same reliable hydro-driven motor that is found in other centrifugal pumps in the Hypro Series 9300. This model can also be easily mounted on a sprayer or tractor, offering dependable performance in every setting.

Manufacturer description

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9306C-HM1C, 9306S-HM1C, 9306C-HM3C, 9306S-HM3C, 9306C-HM5C, and 9306S-HM5C.

Features

  • Max flow: 212 gpm
  • Max pressure: 140 psi
  • Port sizes: 2" FNPT inlet, 1-1/2" FNPT outlet
  • Housing: Cast iron
  • Seal material: Life Guard silicon carbide (B)
  • Impeller: Nylon
  • Hydraulic system: Open/Closed, Max 17 gpm
  • Hydraulic motor ports: 1/2"" NPT inlet, 3/4"" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 33 lbs

Parts breakdown

Diagram

Diagram parts
