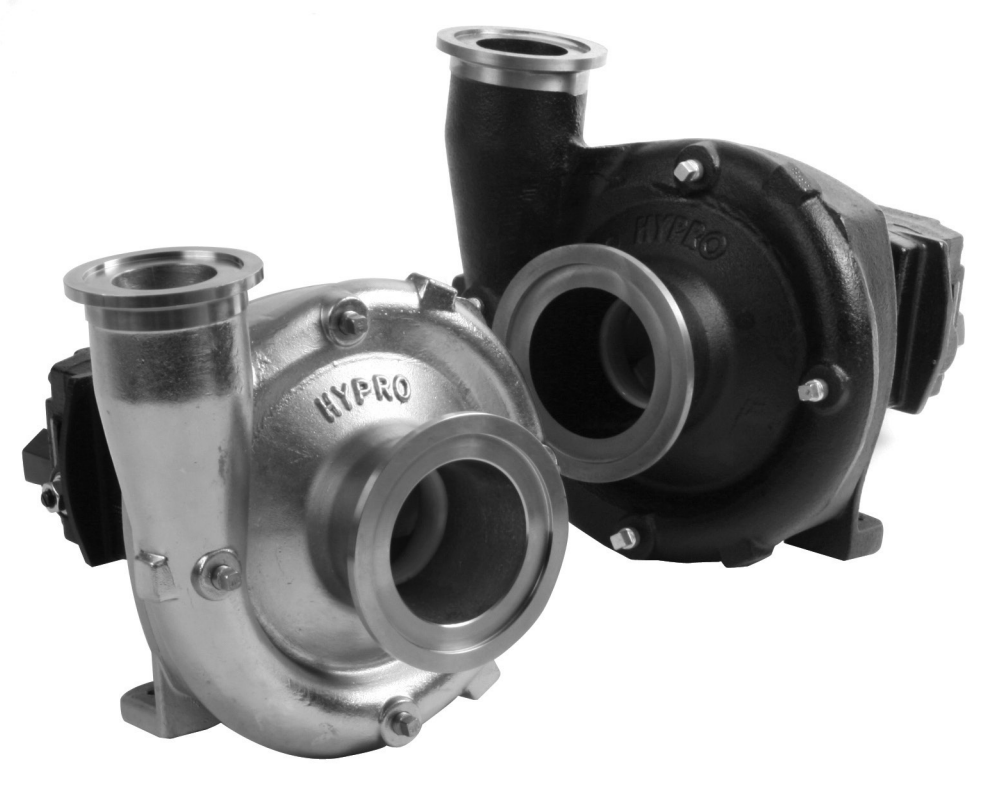

Hypro 9306C-HM1C-3U Centrifugal Pump
Hypro 9306C-HM1C-3U Centrifugal Pump
Brand:
Hypro
Weight:
36.0 lb
Item #
9306CHM1C3U
Hypro 9306C-HM1C-3U Centrifugal Pump
Hypro 9306C-HM1C-3U Centrifugal Pump
Brand:
Hypro
Weight:
36.0 lb
Item #
9306CHM1C3U
Regular price
$1,420.06
Sale price
$1,420.06
Regular price
List Price:
$2,581.93
Unit price
per
Free Shipping on Qualified Orders Over $100
Orders of in-stock products placed withinship out same day. Learn more
Couldn't load pickup availability
Earn 4,260 points with this purchase.
Collapsible content
Product Overview
Hypro 9306C-HM1C-3U Centrifugal Pump
Manufacturer description
This hydraulically-driven, cast iron and stainless steel centrifugal pump achieves a max of 214 gpm (810 lpm) and max of 140 psi
Resources
Features
- Cast iron body. 316 stainless steel (optional) for extended pump life
- Hydraulic motor drive (for open center, closed center and load-sensing systems)
- Max Flow: 283 gpm
- Max Pressure: 127 psi
- Port sizes: 300 x 220 (3U) Universal Flange
- Max. fluid temperature: 140°F/60°C
- Impeller: Cast Iron models Nylon; Stainless Steel models Polypropylene
- Motor: internal gear gerotor
- Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet-HM Series
- Pump seals: Cast Iron models Viton®/ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models Life Guard silicon carbide standard
- Life Guard seals are the industry standard on OEM equipment
- Hydraulic motor seal: double-lip Teflon® and case drain available
- Weight: 26 lbs./11.8 kg
Parts breakdown
Diagram
-
Item # 34300332

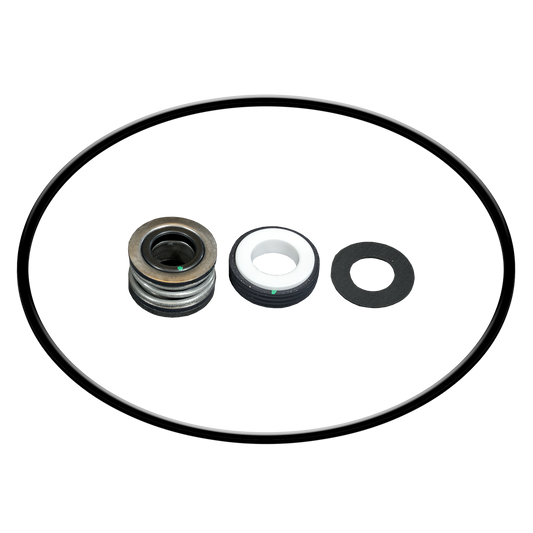

3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
6Regular price $76.51Sale price $76.51 Regular price List Price:Unit price per$94.46 -
Item # 25400806C

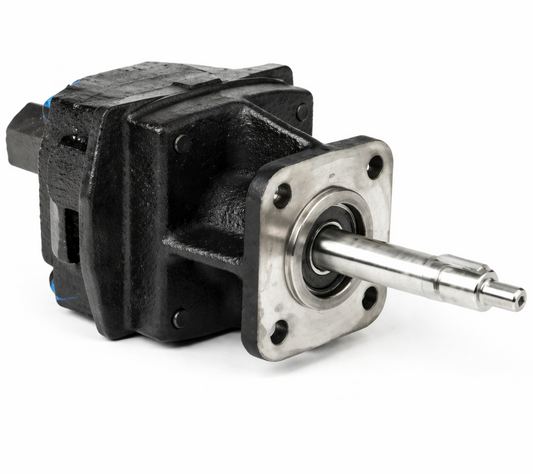

HM1C Model Hydraulic Motor
