Hypro 9303S-HM3C Centrifugal Pump

Hypro 9303S-HM3C Centrifugal Pump

Brand:
Hypro
Weight:
28.4 lb
Item #
9303SHM3C

Regular price $1,846.22
Sale price $1,846.22 Regular price List Price: $3,356.77

Earn 5,539 points with this purchase.

View full details

Collapsible content

Product Overview

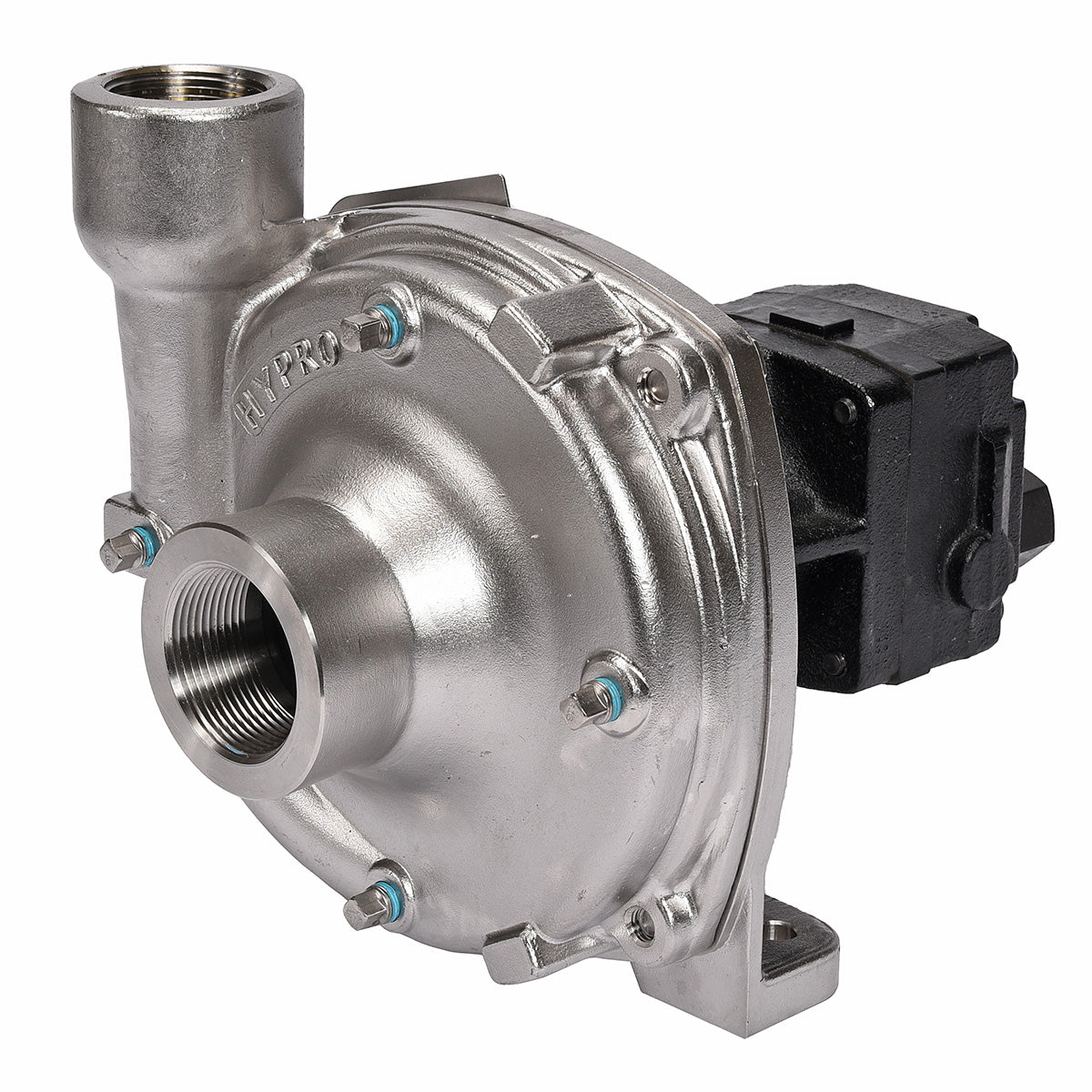

Hypro 9303S-HM3C Centrifugal Pump

125 gpm, 98 psi. Max Hydraulic 24 gpm. For Open/Closed Systems.

1-1/2" NPT inlet, 1-1/4" NPT outlet.

Hypro 9303S-HM3C Centrifugal Pump.

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc.

Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle’s hydraulic system and freeing the PTO for other uses. The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ide

Parts breakdown

Diagram

Diagram parts

Parts list

  • Drain Plug
    • Ref No: 1
    • Part No: 24060016
    • Qty Req: 4
    Our price: $9.66 List price: $11.93
  • Pump Casing (Stainless Series)
    • Ref No: 2
    • Part No: 01509000S
    • Qty Req: 1
    Our price: $455.71 List price: $562.61
  • Pump Casing (Universal Flange Model C-U)
    • Ref No: 2A
    • Part No: 01539000C
    • Qty Req: 1
    Our price: $274.76 List price: $339.21
  • Impeller Nut (Stainless Series)
    • Ref No: 3
    • Part No: 22530006
    • Qty Req: 1
    Our price: $32.49 List price: $40.11
  • Impeller, Poly (9203S, 9302S & 9303P)
    • Ref No: 4
    • Part No: 04029100P
    • Qty Req: 1
    Our price: $61.53 List price: $75.96
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300589
    • Qty Req: 1
    Our price: $256.00 List price: $316.05
  • Mounting Flange
    • Ref No: 8
    • Part No: 07569300S
    • Qty Req: 1
    Our price: $337.61 List price: $416.80
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100125
    • Qty Req: 4
    Our price: $2.05 List price: $2.53
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.46 List price: $1.80
  • Snap Ring
    • Ref No: 11
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Retainer Ring
    • Ref No: 12
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.39 List price: $1.72
  • Ball Bearing for Hypro Pumps
    • Ref No: 13
    • Part No: 20000010
    • Qty Req: 1
    Our price: $11.97 List price: $14.78
  • Cartridge
    • Ref No: 14
    • Part No: 14100131
    • Qty Req: 1
    Our price: $13.36 List price: $16.49
  • O-Ring
    • Ref No: 15
    • Part No: 17200268
    • Qty Req: 2
    Our price: $1.56 List price: $1.93
  • Lip Seal (Only sold in Kit 3430-0748)
    • Ref No: 16
    • Part No: 21040010
    • Qty Req: 1
    Our price: $0.00 List price: $0.00
  • Spacer
    • Ref No: 17
    • Part No: 14100130
    • Qty Req: 1
    Our price: $7.29 List price: $9.00
  • Thrust Bearing Assembly
    • Ref No: 18
    • Part No: 20290014
    • Qty Req: 1
    Our price: $34.77 List price: $42.92
  • Shaft
    • Ref No: 19
    • Part No: 05362500
    • Qty Req: 1
    Our price: $353.10 List price: $435.93
  • Motor Body (Includes Needle Bearing)
    • Ref No: 20
    • Part No: 01502500C
    • Qty Req: 1
    Our price: $150.81 List price: $186.18
  • Bolt
    • Ref No: 21
    • Part No: 22100005
    • Qty Req: 4
    Our price: $0.88 List price: $1.09
  • O-Ring
    • Ref No: 22
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.39 List price: $1.72
  • Dowel Pin (HM3C)
    • Ref No: 23
    • Part No: 16000052
    • Qty Req: 1
    Our price: $29.45 List price: $36.36
  • Dowel Pin (HM3C)
    • Ref No: 24
    • Part No: 16000068
    • Qty Req: 1
    Our price: $13.36 List price: $16.49
  • Gerotor (HM3C)
    • Ref No: 25
    • Part No: 39000024
    • Qty Req: 1
    Our price: $271.46 List price: $335.13
  • Gerotor Housing (HM3C Models) 1" Wide
    • Ref No: 26
    • Part No: 07022500C1
    • Qty Req: 1
    Our price: $212.97 List price: $262.92
  • Motor End Plate, Includes Needle Bearing
    • Ref No: 27
    • Part No: 02542500C2
    • Qty Req: 1
    Our price: $160.01 List price: $197.54
  • Washer
    • Ref No: 28
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.16 List price: $1.43
  • Cap Screw (HM3C Models)
    • Ref No: 29
    • Part No: 22200044
    • Qty Req: 4
    Our price: $3.59 List price: $4.43
  • O-Ring
    • Ref No: 30
    • Part No: 17200108
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Pressure Port Adapter (Includes O-Ring)
    • Ref No: 31
    • Part No: 33600021A
    • Qty Req: 1
    Our price: $25.49 List price: $31.47
  • Tank Port Adapter (Includes O-Ring)
    • Ref No: 33
    • Part No: 33200051A
    • Qty Req: 1
    Our price: $48.00 List price: $59.26
  • Gasket
    • Ref No: 35
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Washer
    • Ref No: 36
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.05 List price: $2.53
  • Lock Nut
    • Ref No: 37
    • Part No: 22500038
    • Qty Req: 1
    Our price: $1.16 List price: $1.43
  • Roll Pin (HM3C)
    • Ref No: 38
    • Part No: 16100055
    • Qty Req: 1
    Our price: $30.35 List price: $37.47
  • Snap Ring
    • Ref No: 39
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
