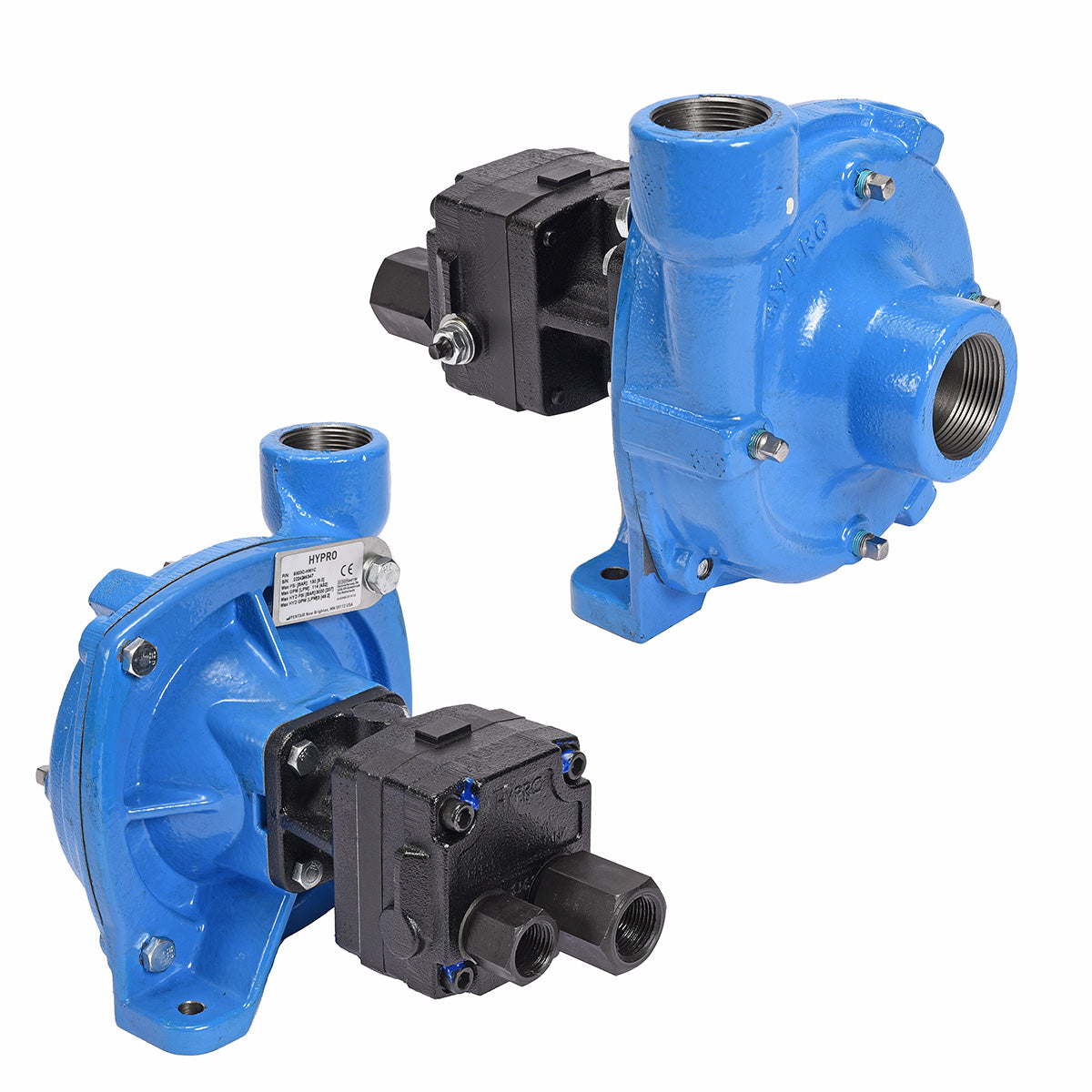

Hypro 9303C-HM5C Centrifugal Pump

Hypro 9303C-HM5C Centrifugal Pump

Brand:
Hypro
Weight:
27.0 lb
Item #
9303CHM5C
Skip to product information
1 of 1

Hypro 9303C-HM5C Centrifugal Pump

Hypro 9303C-HM5C Centrifugal Pump

Brand:
Hypro
Weight:
27.0 lb
Item #
9303CHM5C

Regular price $1,002.69
Sale price $1,002.69 Regular price List Price: $1,823.07

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,008 points with this purchase.

View full details

Collapsible content

Product Overview

The 9303C-HM5C Centrifugal Pump from Hypro provides a convenient pumping performance. Because it can be mounted on a tractor or sprayer, it is easy to use however you need to. The design requires the least amount of mounting space possible. This centrifugal pump is designed to be used with all types of agricultural and industrial fluids, such as insecticides, herbicides, emulsives, and liquid fertilizer.

Manufacturer description

Hypro centrifugal pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. Hypro Series 9300 hydraulic motor-driven centrifugal pumps provide smooth performance. They can be conveniently mounted on the tractor or sprayer, becoming part of the vehicle's hydraulic system and freeing the PTO for other uses. The Hypro close-coupled" design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. The series includes models 9303C-HM1C, 9303S-HM1C, 9303C-HM2C, 9303S-HM2C, 9303C-HM3C, 9303S-HM3C, 9303C-HM4C, 9303S-HM4C, 9303C-HM5C, and 9303S-HM5C.

Features

  • Max flow: 147 gpm
  • Max pressure: 145 psi
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Hydraulic system: Open/Closed, Max 16 gpm
  • Hydraulic motor ports: 1/2" NPT inlet, 3/4" NPT outlet
  • Hydraulic motor seal: Double-lip Teflon®
  • Max fluid temperature: 140°F
  • Weight: 26 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Casing (w / SS wear ring)
    • Ref No: 2
    • Part No: 01509000C
    • Qty Req: 1
    Our price: $260.71 List price: $321.87
  • Pump Casing (Universal Flange Model C-U)
    • Ref No: 2A
    • Part No: 01539000C
    • Qty Req: 1
    Our price: $288.50 List price: $356.17
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.76 List price: $8.34
  • Impeller, Nylon
    • Ref No: 4
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $58.51 List price: $72.24
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.74 List price: $7.09
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300332
    • Qty Req: 1
    Our price: $69.24 List price: $85.48
  • Mounting Flange
    • Ref No: 8
    • Part No: 07509300C
    • Qty Req: 1
    Our price: $153.38 List price: $189.36
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.12 List price: $1.38
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Snap Ring
    • Ref No: 11
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Retainer Ring
    • Ref No: 12
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Ball Bearing for Hypro Pumps
    • Ref No: 13
    • Part No: 20000010
    • Qty Req: 1
    Our price: $12.57 List price: $15.52
  • Cartridge
    • Ref No: 14
    • Part No: 14100131
    • Qty Req: 1
    Our price: $14.02 List price: $17.31
  • O-Ring
    • Ref No: 15
    • Part No: 17200268
    • Qty Req: 2
    Our price: $1.64 List price: $2.03
  • Lip Seal (Only sold in Kit 3430-0748)
    • Ref No: 16
    • Part No: 21040010
    • Qty Req: 1
    Our price: $101.23 List price: $0.00
  • Spacer
    • Ref No: 17
    • Part No: 14100130
    • Qty Req: 1
    Our price: $7.65 List price: $9.45
  • Thrust Bearing Assembly
    • Ref No: 18
    • Part No: 20290014
    • Qty Req: 1
    Our price: $36.51 List price: $45.07
  • Shaft
    • Ref No: 19
    • Part No: 05332500
    • Qty Req: 1
    Our price: $208.55 List price: $257.47
  • Motor Body (Includes Needle Bearing)
    • Ref No: 20
    • Part No: 01502500C
    • Qty Req: 1
    Our price: $158.35 List price: $195.49
  • Bolt
    • Ref No: 21
    • Part No: 22100005
    • Qty Req: 4
    Our price: $0.92 List price: $1.14
  • O-Ring
    • Ref No: 22
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.47 List price: $1.81
  • Dowel Pin (HM1C & HM5C Models)
    • Ref No: 23
    • Part No: 16000044
    • Qty Req: 1
    Our price: $21.67 List price: $26.75
  • Dowel Pin (HM1C Model & HM5C Models)
    • Ref No: 24
    • Part No: 16000037
    • Qty Req: 1
    Our price: $21.67 List price: $26.75
  • Gerotor (HM5C)
    • Ref No: 25
    • Part No: 39000048
    • Qty Req: 1
    Our price: $228.26 List price: $281.80
  • Gerotor Housing (HM5C) 5/8" Wide
    • Ref No: 26
    • Part No: 07042500C1
    • Qty Req: 1
    Our price: $177.27 List price: $218.85
  • Motor End Plate, Includes Needle Bearing
    • Ref No: 27
    • Part No: 02542500C2
    • Qty Req: 1
    Our price: $168.01 List price: $207.42
  • Washer
    • Ref No: 28
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.22 List price: $1.50
  • Cap Screw (HM5C Models)
    • Ref No: 29
    • Part No: 22200032
    • Qty Req: 4
    Our price: $5.10 List price: $6.30
  • O-Ring
    • Ref No: 30
    • Part No: 17200108
    • Qty Req: 1
    Our price: $1.26 List price: $1.56
  • Pressure Port Adapter (Includes O-Ring)
    • Ref No: 31
    • Part No: 33600021A
    • Qty Req: 1
    Our price: $26.76 List price: $33.04
  • Tank Port Adapter (Includes O-Ring)
    • Ref No: 33
    • Part No: 33200051A
    • Qty Req: 1
    Our price: $50.40 List price: $62.22
  • Gasket
    • Ref No: 35
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.98 List price: $6.15
  • Washer
    • Ref No: 36
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.15 List price: $2.66
  • Lock Nut
    • Ref No: 37
    • Part No: 22500038
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Roll Pin (HM1C & HM5C Models)
    • Ref No: 38
    • Part No: 16100031
    • Qty Req: 1
    Our price: $5.27 List price: $6.51
  • Snap Ring
    • Ref No: 39
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.28 List price: $1.58
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 40
    • Part No: 16100012
    • Qty Req: 1
    Our price: $1.49 List price: $1.84
