Hypro 9303C-HM4C-SP Centrifugal Pump

Hypro 9303C-HM4C-SP Centrifugal Pump

Brand:
Hypro
Weight:
38.0 lb
Item #
9303CHM4CSP

Regular price $1,314.78
Sale price $1,314.78 Regular price List Price: $2,390.51

Earn 3,944 points with this purchase.

View full details

Collapsible content

Product Overview

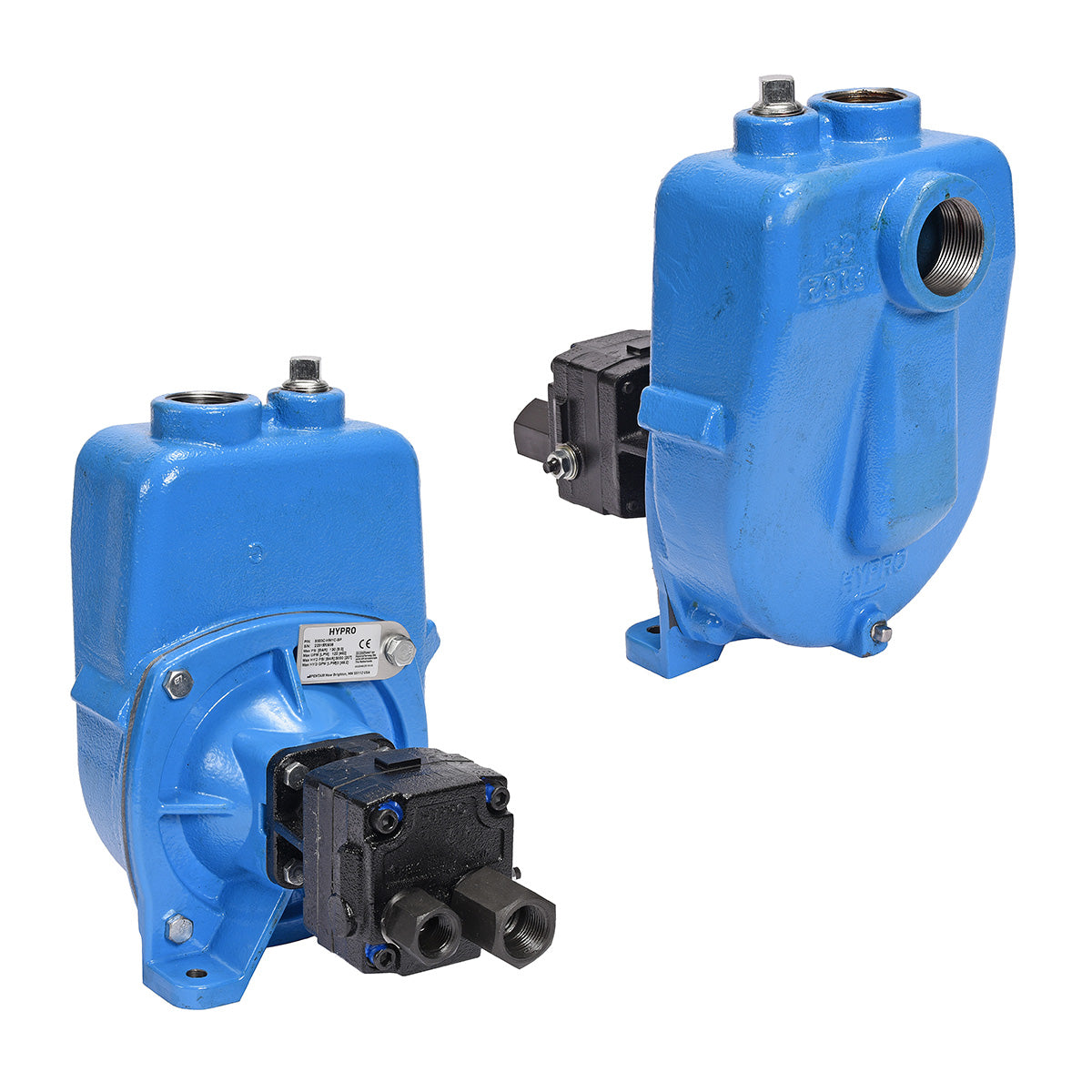

Hypro 9303C-HM4C-SP Centrifugal Pump

99 gpm, 97 psi. May Hydraulic 7 gpm. For Open/Closed Systems.

1-1/2" NPT Inlet, 1-1/4" Outlet. Hydraulic Ports: 1/2" NPT Inlet, 3/4" NPT Outlet.

Hypro self-priming centrifugal pumps handle big, high-capacity spraying jobs and tank filling with ease. They offer outstanding performance without the need for a flooded suction inlet. The pumps are ideal for sprayers that require pump mounting above the carrier tank.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications. Polypropylene pumps are lightweight and provide excellent resistance to corrosive chemicals.

The series includes models 9303C-HM1C-SP, 9303S-HM1C-SP, 9303C-HM2C-SP, 9303S-HM2C-SP, 9303C-HM3C-SP, 9303S-HM3C-SP, 9303C-HM4C-SP, 9303S-HM4C-SP, 9303C-HM5C-SP, and 9303S-HM5C-SP.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pipe Plug
    • Ref No: 1A
    • Part No: 24060001
    • Qty Req: 1
    Our price: $3.78 List price: $4.67
  • Pump Casing (Self-Priming Units)
    • Ref No: 2
    • Part No: 34300480SP
    • Qty Req: 1
    Our price: $406.05 List price: $501.30
  • Impeller Nut (Cast Iron Series)
    • Ref No: 3
    • Part No: 22530002
    • Qty Req: 1
    Our price: $6.43 List price: $7.94
  • Impeller, Nylon
    • Ref No: 4
    • Part No: 04019100P
    • Qty Req: 1
    Our price: $55.73 List price: $68.80
  • O-Ring
    • Ref No: 5
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • 3430-0332 Seal & O-Ring Repair Kit Hypro Cast Iron Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300332
    • Qty Req: 1
    Our price: $65.94 List price: $81.41
  • Mounting Flange
    • Ref No: 8
    • Part No: 07509300C
    • Qty Req: 1
    Our price: $146.08 List price: $180.34
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100020
    • Qty Req: 4
    Our price: $1.06 List price: $1.31
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.46 List price: $1.80
  • Snap Ring
    • Ref No: 11
    • Part No: 18100014
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Retainer Ring
    • Ref No: 12
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.39 List price: $1.72
  • Ball Bearing for Hypro Pumps
    • Ref No: 13
    • Part No: 20000010
    • Qty Req: 1
    Our price: $11.97 List price: $14.78
  • Cartridge
    • Ref No: 14
    • Part No: 14100131
    • Qty Req: 1
    Our price: $13.36 List price: $16.49
  • O-Ring
    • Ref No: 15
    • Part No: 17200268
    • Qty Req: 2
    Our price: $1.56 List price: $1.93
  • Lip Seal (Only sold in Kit 3430-0748)
    • Ref No: 16
    • Part No: 21040010
    • Qty Req: 1
    Our price: $0.00 List price: $0.00
  • Spacer
    • Ref No: 17
    • Part No: 14100130
    • Qty Req: 1
    Our price: $7.29 List price: $9.00
  • Thrust Bearing Assembly
    • Ref No: 18
    • Part No: 20290014
    • Qty Req: 1
    Our price: $34.77 List price: $42.92
  • Shaft
    • Ref No: 19
    • Part No: 05312500
    • Qty Req: 1
    Our price: $273.65 List price: $337.84
  • Motor Body (Includes Needle Bearing)
    • Ref No: 20
    • Part No: 01502500C
    • Qty Req: 1
    Our price: $150.81 List price: $186.18
  • Bolt
    • Ref No: 21
    • Part No: 22100005
    • Qty Req: 4
    Our price: $0.88 List price: $1.09
  • O-Ring
    • Ref No: 22
    • Part No: 17200110
    • Qty Req: 2
    Our price: $1.39 List price: $1.72
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 23
    • Part No: 16000045
    • Qty Req: 1
    Our price: $16.39 List price: $20.24
  • Dowel Pin (HM2C & HM4C Models)
    • Ref No: 24
    • Part No: 16000042
    • Qty Req: 1
    Our price: $16.39 List price: $20.24
  • Gerotor (HM4C Models)
    • Ref No: 25
    • Part No: 39000025
    • Qty Req: 1
    Our price: $210.75 List price: $260.19
  • Gerotor Housing 5/16" Wide (HM4C Model)
    • Ref No: 26
    • Part No: 07032500C1
    • Qty Req: 1
    Our price: $132.41 List price: $163.47
  • Motor End Plate, Includes Needle Bearing
    • Ref No: 27
    • Part No: 02542500C2
    • Qty Req: 1
    Our price: $160.01 List price: $197.54
  • Washer
    • Ref No: 28
    • Part No: 22700039
    • Qty Req: 4
    Our price: $1.16 List price: $1.43
  • Cap Screw (HM2C & HM4C Models)
    • Ref No: 29
    • Part No: 22200045
    • Qty Req: 4
    Our price: $1.65 List price: $2.04
  • O-Ring
    • Ref No: 30
    • Part No: 17200108
    • Qty Req: 1
    Our price: $1.21 List price: $1.49
  • Pressure Port Adapter (Includes O-Ring)
    • Ref No: 31
    • Part No: 33600021A
    • Qty Req: 1
    Our price: $25.49 List price: $31.47
  • Tank Port Adapter (Includes O-Ring)
    • Ref No: 33
    • Part No: 33200051A
    • Qty Req: 1
    Our price: $48.00 List price: $59.26
  • Bypass Adjusting Screw
    • Ref No: 34
    • Part No: 32200029
    • Qty Req: 1
    Our price: $9.91 List price: $12.23
  • Gasket
    • Ref No: 35
    • Part No: 17000047
    • Qty Req: 1
    Our price: $4.75 List price: $5.86
  • Washer
    • Ref No: 36
    • Part No: 22700027
    • Qty Req: 1
    Our price: $2.05 List price: $2.53
  • Lock Nut
    • Ref No: 37
    • Part No: 22500038
    • Qty Req: 1
    Our price: $1.16 List price: $1.43
  • Roll Pin (HM2C & HM4C Models)
    • Ref No: 38
    • Part No: 16100032
    • Qty Req: 1
    Our price: $8.87 List price: $10.95
  • Snap Ring
    • Ref No: 39
    • Part No: 18100026
    • Qty Req: 1
    Our price: $1.22 List price: $1.50
  • Woodruff Key**(1) 540 rpm (2) 1000rpm
    • Ref No: 40
    • Part No: 16100012
    • Qty Req: 1
    Our price: $1.42 List price: $1.75
