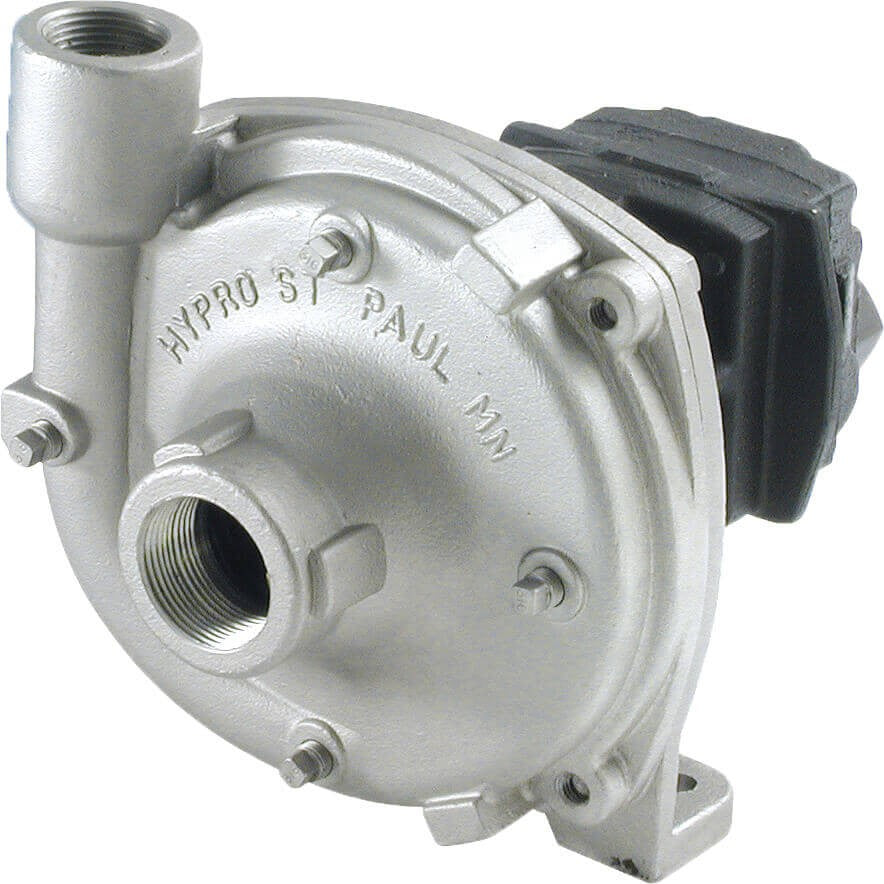

Hypro 9302ST-GM1 Centrifugal Pump

Hypro 9302ST-GM1 Centrifugal Pump

Item Code:
9302STGM1
Weight:
26.0 lb
Manufacturer:
Hypro
Our price:
$1,328.90
List price:
$2,416.18
Overview:

Hypro 9302ST-GM1 Centrifugal Pump

Manufacturer Description:

These high performance pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids: water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers, etc. The smaller ports make them ideal for smaller sprayers and turf machines. The hydraulic-driven motor allows for remote mounting and easy hook up to system hydraulics.

Features:

  • Available in cast iron and 316 stainless steel for extended pump life
  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • Max Flow: 63 gpm
  • Max Pressure: 90 psi
  • Port sizes: 1-1/4" NPT inlet, 1" NPT outlet
  • Max. fluid temperature: 140°F/60°C
  • Impeller: Cast Iron models Nylon; Stainless Steel models Polypropylene
  • Motor: internal gear gerotor
  • Hydraulic ports on GM1 Series: 7/8" 14 UNF #10 SAE
  • Pump seals: Cast Iron models Viton®/ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models Life Guard silicon carbide standard
  • Life Guard seals are the industry standard on OEM equipment
  • Hydraulic motor seal: double-lip Teflon® and case drain available
  • Max. motor psi: 3000 (bar: 207)
  • Weight: 26 lbs./11.8 kg
