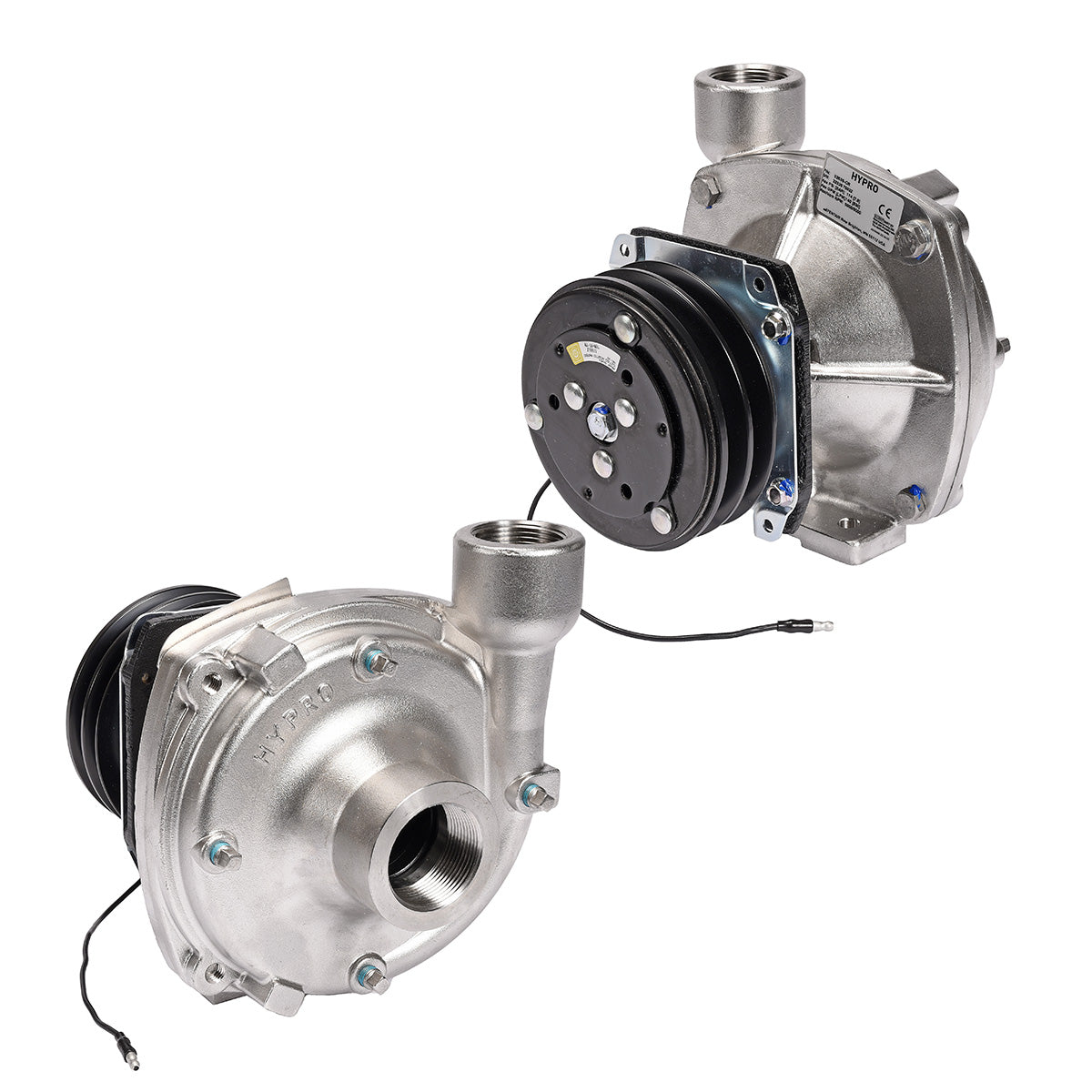

Hypro 9263S-CR Centrifugal Pump

Hypro 9263S-CR Centrifugal Pump

Brand:
Hypro
Weight:
23.0 lb
Item #
9263SCR

Regular price $1,470.04
Sale price $1,470.04 Regular price List Price: $2,672.80

Earn 4,410 points with this purchase.

View full details

Collapsible content

Product Overview

Carry out large-scale spraying jobs easily with the Hypro 9263S-CR Centrifugal Pump. The heavy duty metal housing can handle liquid fertilizer and similar chemicals, including those for weed control as long as they can be liquefied, and even some acids. A versatile sprayer, this model works great for many applications, including liquid transfer, watering delicate areas such as seed beds and filling nurse tanks.

Manufacturer description

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron and stainless steel. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Features

  • Max flow: 140 gpm
  • Max pressure: 114 psi
  • Max speed: 5000 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Stainless steel
  • Seal material: Life Guard silicon carbide (B)
  • Impeller: Poly
  • Shaft: 5/8" solid
  • Pump shaft rotation: CW
  • Max fluid temperature: 140°F
  • Clutch: 12 VDC
  • Amp draw: 45 watts
  • Weight: 23 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Drain Plug
    • Ref No: 1
    • Part No: 24060016
    • Qty Req: 4
    Our price: $9.66 List price: $11.93
  • Pump Casing - Reverse (Stainless Series)
    • Ref No: 2A
    • Part No: 01529000S
    • Qty Req: 1
    Our price: $534.00 List price: $534.00
  • Impeller Nut (Stainless Series)
    • Ref No: 3
    • Part No: 22530006
    • Qty Req: 1
    Our price: $32.49 List price: $40.11
  • Impeller Poly (Stainless Series) (Reversed)
    • Ref No: 4A
    • Part No: 04039100P
    • Qty Req: 1
    Our price: $103.18 List price: $127.38
  • Key
    • Ref No: 5
    • Part No: 16100044
    • Qty Req: 1
    Our price: $8.26 List price: $10.20
  • Gasket
    • Ref No: 6
    • Part No: 17000100
    • Qty Req: 1
    Our price: $5.47 List price: $6.75
  • O-Ring
    • Ref No: 7
    • Part No: 17200083
    • Qty Req: 1
    Our price: $3.94 List price: $4.87
  • Mechanical Seal (Optional Buna-N)
    • Ref No: 8
    • Part No: 21200008
    • Qty Req: 1
    Our price: $33.92 List price: $41.88
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 8
    • Part No: 34300589
    • Qty Req: 1
    Our price: $256.00 List price: $316.05
  • Mounting Flange (Stainless Series)
    • Ref No: 9
    • Part No: 07569200S
    • Qty Req: 1
    Our price: $704.00 List price: $869.13
  • Hex Head Cap Screw
    • Ref No: 10
    • Part No: 22100125
    • Qty Req: 4
    Our price: $2.05 List price: $2.53
  • Slinger Seal
    • Ref No: 11
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.46 List price: $1.80
  • Ball Bearing for Hypro Pumps
    • Ref No: 12
    • Part No: 20000010
    • Qty Req: 2
    Our price: $11.97 List price: $14.78
  • Pump Shaft
    • Ref No: 13
    • Part No: 05059200
    • Qty Req: 1
    Our price: $154.48 List price: $190.71
  • Key
    • Ref No: 14
    • Part No: 16100004
    • Qty Req: 1
    Our price: $1.98 List price: $2.45
  • Retainer Ring
    • Ref No: 15
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.39 List price: $1.72
  • Head Hex Cap Screw
    • Ref No: 16
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.14 List price: $1.41
  • Washer
    • Ref No: 17
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.22 List price: $11.38
  • Spacer
    • Ref No: 18
    • Part No: 14100107
    • Qty Req: 1
    Our price: $22.57 List price: $27.87
  • Magnetic Clutch Assy.
    • Ref No: 20
    • Part No: 25260012
    • Qty Req: 1
    Our price: $516.98 List price: $939.96
  • Set Screw
    • Ref No: 21
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.25 List price: $2.78
  • Clutch Kit
    • Ref No: 22
    • Part No: 34300592
    • Qty Req: 1
    Our price: $641.36 List price: $1,166.10
  • Retaining Ring
    • Ref No: 25
    • Part No: 18100036
    • Qty Req: 1
    Our price: $5.95 List price: $7.35
