Product Overview

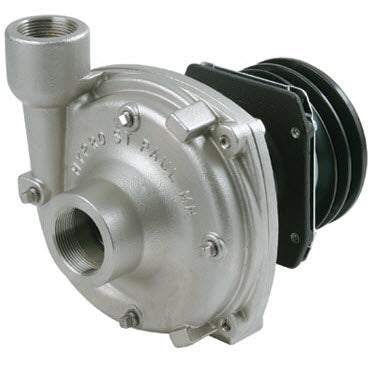

Hypro 9262S-CR Clutch-Driven Stainless Steel Centrifugal Pump

(Image shows 9262S-C)

103 gpm, 170 psi.

1-1/4" NPT Inlet, 1-" NPT Outlet.

Features:

-Max RPM 5000, CW Rotation.

-Available in Cast Iron and 316 Stainless Steel.

-Pedestal mount with DC clutch drive.

-Nylon Impeller in Cast Iron; Polypropylene Impeller in Stainless Steel.

-Amp draw: 45 watts at 12 volts.

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids.

The broad, versatile line includes models with rugged housings of cast iron and stainless steel. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Impeller Nut (Stainless Series)
    • Ref No: 2
    • Part No: 22530006
    • Qty Req: 1
    Our price: $34.12 List price: $42.12
  • Impeller Poly (Stainless Series) (Reversed)
    • Ref No: 3A
    • Part No: 04039100P
    • Qty Req: 1
    Our price: $108.34 List price: $133.75
  • Key
    • Ref No: 4
    • Part No: 16100044
    • Qty Req: 1
    Our price: $8.68 List price: $10.71
  • O-Ring
    • Ref No: 6
    • Part No: 17200083
    • Qty Req: 1
    Our price: $4.14 List price: $5.11
  • 3430-0589 Life Guard Silicon Carbide Seal Repair Kit Hypro Stainless Centrifugal Pumps
    • Ref No: 7
    • Part No: 34300589
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Mounting Flange (Stainless Series)
    • Ref No: 8
    • Part No: 07569200S
    • Qty Req: 1
    Our price: $739.20 List price: $912.59
  • Hex Head Cap Screw
    • Ref No: 9
    • Part No: 22100125
    • Qty Req: 4
    Our price: $2.15 List price: $2.66
  • Slinger Seal
    • Ref No: 10
    • Part No: 14100056
    • Qty Req: 1
    Our price: $1.53 List price: $1.89
  • Ball Bearing for Hypro Pumps
    • Ref No: 11
    • Part No: 20000010
    • Qty Req: 2
    Our price: $12.57 List price: $15.52
  • Pump Shaft
    • Ref No: 12
    • Part No: 05059200
    • Qty Req: 1
    Our price: $162.20 List price: $200.25
  • Key
    • Ref No: 13
    • Part No: 16100004
    • Qty Req: 1
    Our price: $2.08 List price: $2.57
  • Retainer Ring
    • Ref No: 14
    • Part No: 18200013
    • Qty Req: 1
    Our price: $1.47 List price: $1.81
  • Set Screw
    • Ref No: 16
    • Part No: 22300001
    • Qty Req: 3
    Our price: $2.37 List price: $2.92
  • Spacer
    • Ref No: 17
    • Part No: 14100107
    • Qty Req: 1
    Our price: $23.70 List price: $29.26
  • Magnetic Clutch Assy.
    • Ref No: 18
    • Part No: 25260012
    • Qty Req: 1
    Our price: $542.83 List price: $986.96
  • Washer
    • Ref No: 19
    • Part No: 22700092
    • Qty Req: 1
    Our price: $9.68 List price: $11.95
  • Head Hex Cap Screw
    • Ref No: 20
    • Part No: 22100003
    • Qty Req: 1
    Our price: $1.20 List price: $1.48
