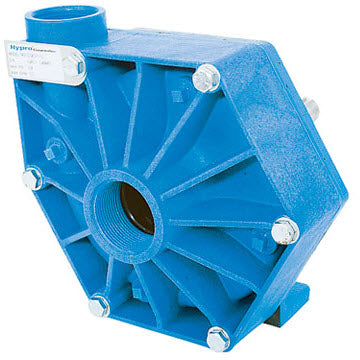

Hypro 9203P-S Centrifugal Pump

Hypro 9203P-S Centrifugal Pump

Item Code:
9203PS
Weight:
13.0 lb
Manufacturer:
Hypro
Our price:
$518.46
List price:
$942.66
Overview:

This Hypro poly centrifugal pump is ideal for high-capacity, large tasks such as spraying wettable powder slurries or liquid fertilizers for weed control. This unit is also useful for various liquid transfer applications. Features include a poly housing, poly impeller, solid shaft, pedestal mounting capability, NPT inlet and outlet, Viton seal, and counter-clockwise rotation.

Manufacturer Description:

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of polypropylene that stand up to strong chemical herbicides. Polypropylene pumps are lightweight and provide excellent resistance to corrosive chemicals.

Features:

  • Max flow: 100 gpm
  • Max pressure: 82 psi
  • Max speed: 4200 rpm
  • Port sizes: 1-1/2" FNPT inlet, 1-1/4" FNPT outlet
  • Housing: Polypropylene
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Polypropylene
  • Shaft: 7/8" solid keyed stainless steel
  • Pump shaft rotation: CCW
  • Max fluid temperature: 140°F
  • Weight: 14 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 07009000P
  • Qty Req: 1
Our price: $52.29 List price: $64.55
  • Ref No: 2
  • Part No: 04039000P
  • Qty Req: 1
Our price: $65.41 List price: $80.75
  • Ref No: 3
  • Part No: 17000101
  • Qty Req: 1
Our price: $6.20 List price: $7.65
  • Ref No: 5
  • Part No: 17210083
  • Qty Req: 1
Our price: $17.93 List price: $22.14
  • Ref No: 6
  • Part No: 07509000P
  • Qty Req: 1
Our price: $23.43 List price: $28.92
  • Ref No: 7
  • Part No: 14100083
  • Qty Req: 1
Our price: $2.12 List price: $2.62
  • Ref No: 8
  • Part No: 07029200C
  • Qty Req: 1
Our price: $272.18 List price: $336.03
  • Ref No: 9
  • Part No: 20080001
  • Qty Req: 2
Our price: $16.89 List price: $20.85
  • Ref No: 11
  • Part No: 05079200
  • Qty Req: 1
Our price: $323.68 List price: $399.60
  • Ref No: 13
  • Part No: 16100004
  • Qty Req: 1
Our price: $1.89 List price: $2.33
  • Ref No: 15
  • Part No: 24060016
  • Qty Req: 4
Our price: $9.20 List price: $11.36
  • Ref No: 16
  • Part No: 22100087
  • Qty Req: 6
Our price: $1.33 List price: $1.64
  • Ref No: 17
  • Part No: 22700041
  • Qty Req: 6
Our price: $1.15 List price: $1.42
  • Ref No: 18
  • Part No: 22500051
  • Qty Req: 1
Our price: $2.25 List price: $2.78
  • Ref No: 19
  • Part No: 22700057
  • Qty Req: 1
Our price: $2.44 List price: $3.01
  • Ref No: 20
  • Part No: 17000097
  • Qty Req: 1
Our price: $8.20 List price: $10.12
  • Ref No: 21
  • Part No: 22500052
  • Qty Req: 1
Our price: $1.74 List price: $2.15
  • Ref No: 22
  • Part No: 22100088
  • Qty Req: 1
Our price: $1.15 List price: $1.42
