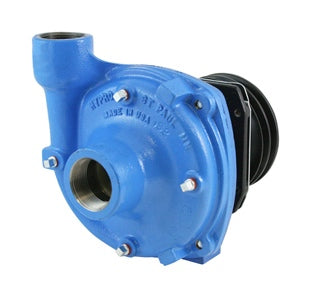

Hypro 9202C Centrifugal Pump

Hypro 9202C Centrifugal Pump

Item Code:
9202C
Weight:
16.9 lb
Manufacturer:
Hypro
Our price:
$413.02
List price:
$750.95
Overview:

For your high-capacity agricultural spraying applications, install this Hypro 9202C Centrifugal Pump in your sprayer system. It's ideally suited to handle liquid fertilizers and distributing weed control solutions as well as filling nursing tanks, watering seed beds or other landscaping, gardening and farming uses. This pump is rated with a maximum pressure of 170 PSI and with an upper flow rate of 103 GPM.

Manufacturer Description:

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron and stainless steel that stand up to strong chemical herbicides. Stainless steel pumps are ideal for use with Roundup® or other acid applications.

Features:

  • Max flow: 103 gpm
  • Max pressure: 170 psi
  • Max speed: 6000 rpm
  • Port sizes: 1-1/4" FNPT inlet, 1" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton®/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Shaft: 5/8" solid
  • Pump shaft rotation: CCW
  • Max fluid temperature: 140°F
  • Weight: 18 lbs

Parts breakdown

 Parts breakdown parts

Parts list

  • Ref No: 1
  • Part No: 01509200C
  • Qty Req: 1
Our price: $274.06 List price: $338.35
  • Ref No: 3
  • Part No: 04019100P
  • Qty Req: 1
Our price: $53.07 List price: $65.52
  • Ref No: 5
  • Part No: 17000100
  • Qty Req: 1
Our price: $5.21 List price: $6.43
  • Ref No: 6
  • Part No: 17200083
  • Qty Req: 1
Our price: $3.76 List price: $4.64
  • Ref No: 9
  • Part No: 22100020
  • Qty Req: 4
Our price: $1.01 List price: $1.25
  • Ref No: 10
  • Part No: 14100056
  • Qty Req: 1
Our price: $1.39 List price: $1.71
  • Ref No: 11
  • Part No: 20000010
  • Qty Req: 2
Our price: $11.40 List price: $14.08
  • Ref No: 12
  • Part No: 05059200
  • Qty Req: 1
Our price: $147.12 List price: $181.63
  • Ref No: 14
  • Part No: 18200013
  • Qty Req: 1
Our price: $1.33 List price: $1.64
