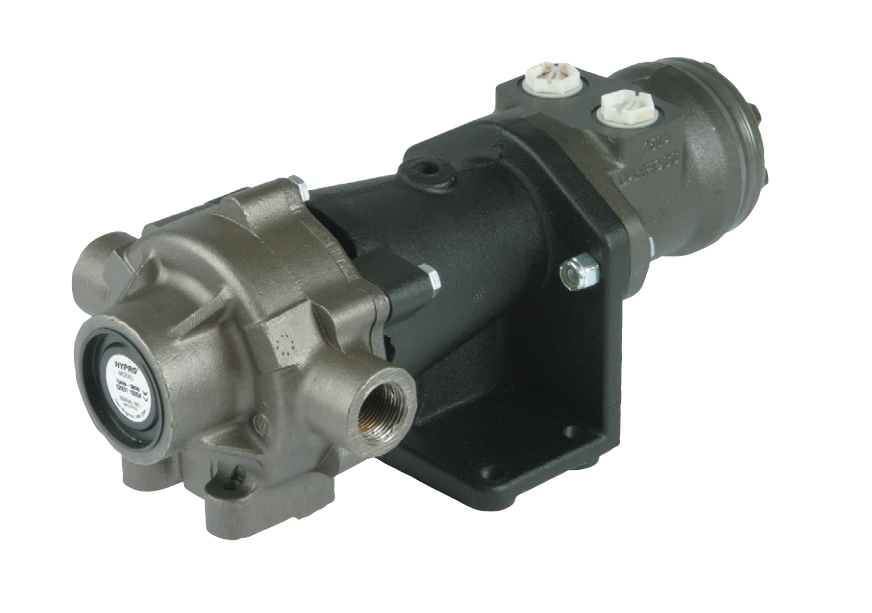

Hypro 7560XL-GM30 Roller Pump

Hypro 7560XL-GM30 Roller Pump

Brand:
Hypro
Weight:
34.0 lb
Item #
7560XLGM30
Skip to product information
1 of 0

Hypro 7560XL-GM30 Roller Pump

Hypro 7560XL-GM30 Roller Pump

Brand:
Hypro
Weight:
34.0 lb
Item #
7560XLGM30

Regular price $1,728.34
Sale price $1,728.34 Regular price List Price: $3,142.43

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 5,185 points with this purchase.

View full details

Collapsible content

Product Overview

Hypro 7560XL-GM30 Roller Pump

Manufacturer description

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps. Construction features include a Cast Iron, Ni-Resist or Silver CastTM body, Super Rotor, 416 stainless steel shaft, sealed factory-lubricated ball bearings, cartridge-type lip seals of Viton or Buna-N, and versatile Super Rollers.(Super Rollers feature the life of polypropylene and the chemical resistance of nylon.) The hydraulically-driven roller pump can be conveniently mounted anywhere and hooked up to system hydraulics, eliminating the need for a PTO or a gas engine to drive the pump.

Features

  • Hydraulic motor drive (for open center, closed center and load-sensing systems)
  • Max flow: 20.8 gpm
  • Max pressure: 300 psi
  • Max RPM: 1000
  • Max hydraulic: 12 gpm
  • Max. fluid temperature: 140°F/60°C
  • Pump port size: 3/4" NPT
  • 1" hose barb inlet fitting for 1000 rpm operation
  • Housing: Silvercast
  • Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
  • Shaft Seals: Viton® standard
  • Rotor: Silvercast
  • Motor port size: -10 SAE (7/8"- 14" UNF)

Parts breakdown

Diagram

Diagram parts

Parts list

  • Bearing Cover
    • Ref No: 1
    • Part No: 23000020
    • Qty Req: 1
    Our price: $1.82 List price: $2.25
  • Main Bearing - Hypro Pumps
    • Ref No: 2
    • Part No: 20080001
    • Qty Req: 2
    Our price: $18.61 List price: $22.98
  • Viton Seal (Std.)
    • Ref No: 3
    • Part No: 21120003
    • Qty Req: 2
    Our price: $20.53 List price: $25.35
  • Buna-N Seal (Optional)
    • Ref No: 3
    • Part No: 21120001
    • Qty Req: 2
    Our price: $18.77 List price: $23.17
  • Body SilverCast with Seal
    • Ref No: 4
    • Part No: 01047500X
    • Qty Req: 1
    Our price: $711.38 List price: $878.25
  • O-Ring Gasket for Endplate
    • Ref No: 5
    • Part No: 17200014
    • Qty Req: 1
    Our price: $2.75 List price: $3.40
  • Super Roller (Standard)
    • Ref No: 6
    • Part No: 10050004
    • Qty Req: 8
    Our price: $4.56 List price: $5.63
  • Polypropylene Roller (Optional)
    • Ref No: 6
    • Part No: 10020004
    • Qty Req: 8
    Our price: $3.87 List price: $4.78
  • Buna-N Roller (Optional)
    • Ref No: 6
    • Part No: 10520004
    • Qty Req: 8
    Our price: $35.44 List price: $43.75
  • Teflon Rollers (Optional)
    • Ref No: 6
    • Part No: 10550004
    • Qty Req: 8
    Our price: $22.96 List price: $28.34
  • Rotor and Shaft Assembly
    • Ref No: 7
    • Part No: 34300745
    • Qty Req: 1
    Our price: $268.80 List price: $331.85
  • Key
    • Ref No: 8
    • Part No: 16100005
    • Qty Req: 1
    Our price: $2.01 List price: $2.48
  • Shaft Bearing Cover
    • Ref No: 10
    • Part No: 23000022
    • Qty Req: 1
    Our price: $1.82 List price: $2.25
  • Spacer
    • Ref No: 11
    • Part No: 14100111
    • Qty Req: 1
    Our price: $10.04 List price: $12.39
  • FKM (Viton) Outlet Gasket
    • Ref No: 14
    • Part No: 18044
    • Qty Req: 2
    Our price: $99.34 List price: $198.67
  • Hydraulic Motor
    • Ref No: 15
    • Part No: 25000028
    • Qty Req: 1
    Our price: $624.65 List price: $1,135.73
  • Bolt
    • Ref No: 19
    • Part No: 22100004
    • Qty Req: 3
    Our price: $1.12 List price: $1.38
