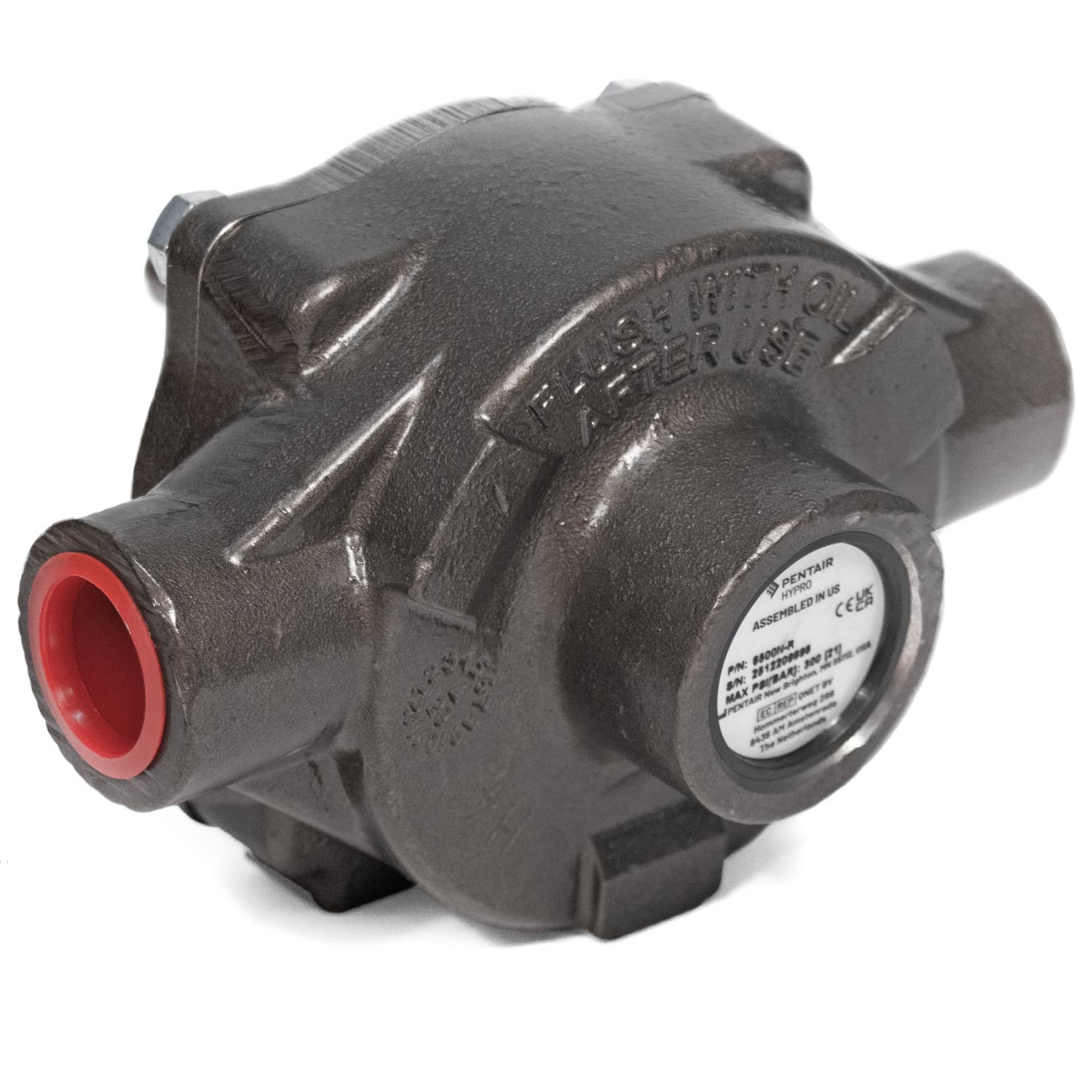

Hypro 6500N-R Roller Pump

22 GPM, 300 PSI, CW rotation

When you need to transfer a variety of agricultural or industrial fluids, turn to Hypro. The Roller Pump allows you to quickly and efficiently spray insecticides, herbicides, liquid fertilizers, aromatic solvents, emulsives, and other chemicals. It features up to 22 gpm, 300 psi and can be run up to 1200 rpm.

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

• Max flow: 22 gpm
• Max pressure: 300 psi
• Max rpm: 1200
• Port sizes: 3/4" NPT
• Pump shaft rotation: CW
• Housing: Ni-Resist
• Rotor: Silvercast
• Roller material: Super rollers standard, Poly and Teflon® available
• Roller quantity: 6
• Shaft seals: Viton® standard, Buna available
• Shaft: 5/8" solid stainless steel
• 9.7 gpm/36.7 lpm at 540 rpm
• 18.2 gpm/68.9 lpm at 1000 rpm
• 21.8 gpm/82.5 lpm at 1200 rpm
• Max fluid temperature: 140°F
• Weight: 9 lbs
