Hypro 1572-SPX Transfer Pump

Hypro 1572-SPX Transfer Pump

Brand:
Hypro
Weight:
65.0 lb
Item #
1572SPX
Skip to product information
1 of 1

Hypro 1572-SPX Transfer Pump

Hypro 1572-SPX Transfer Pump

Brand:
Hypro
Weight:
65.0 lb
Item #
1572SPX

Regular price $1,025.79
Sale price $1,025.79 Regular price List Price: $1,865.08

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 3,077 points with this purchase.

View full details

Collapsible content

Product Overview

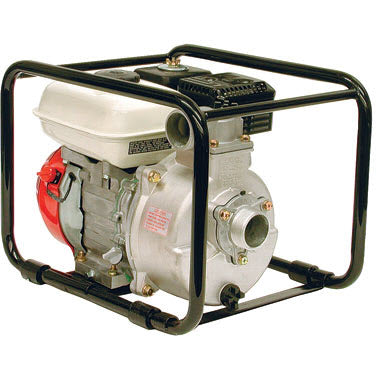

Hypro 1572-SPX Self Priming Aluminum Gas Engine Driven Transfer Pump.

Honda 4 HP Engine.

145 gpm, 50 psi.

2" x 2" Ports. Suction Lift 28 Ft.

Hypro self-priming transfer pumps handle big, high capacity, liquid transfer jobs with ease. Use them for transferring water, liquid fertilizers, and other chemicals compatible with pump materials.

Make short work of other farm jobs: filling nurse tanks, watering seedbeds, and transferring liquids. This self-priming series makes it ideal for de-watering applications.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Casing
    • Ref No: 1
    • Part No: DS501001
    • Qty Req: 1
    Our price: $337.15 List price: $416.24
  • Casing Cover
    • Ref No: 2
    • Part No: DS501004
    • Qty Req: 1
    Our price: $224.78 List price: $277.50
  • Impeller
    • Ref No: 3
    • Part No: DS501009
    • Qty Req: 1
    Our price: $119.34 List price: $147.33
  • Inner Casing
    • Ref No: 4
    • Part No: DS501011
    • Qty Req: 1
    Our price: $198.13 List price: $244.60
  • Discharge Port
    • Ref No: 5
    • Part No: DS501019HN
    • Qty Req: 1
    Our price: $101.95 List price: $125.86
  • Inlet Port
    • Ref No: 6
    • Part No: DS501013N
    • Qty Req: 1
    Our price: $70.11 List price: $86.55
  • Mechanical Seal (Viton)
    • Ref No: 7
    • Part No: 21200036
    • Qty Req: 1
    Our price: $126.29 List price: $155.91
  • O-Ring
    • Ref No: 8
    • Part No: DS501002
    • Qty Req: 1
    Our price: $18.57 List price: $22.93
  • Gasket
    • Ref No: 9
    • Part No: DS501012
    • Qty Req: 1
    Our price: $11.35 List price: $14.01
  • Gasket
    • Ref No: 10
    • Part No: DS501020
    • Qty Req: 1
    Our price: $10.25 List price: $12.66
  • Check Valve
    • Ref No: 11
    • Part No: DS501015
    • Qty Req: 1
    Our price: $37.09 List price: $45.79
  • Plug and O-Ring
    • Ref No: 12
    • Part No: DS501021
    • Qty Req: 2
    Our price: $9.62 List price: $11.88
  • Bolt
    • Ref No: 14
    • Part No: DS501005
    • Qty Req: 4
    Our price: $5.39 List price: $6.66
  • Bolt
    • Ref No: 19
    • Part No: DS501003
    • Qty Req: 4
    Our price: $3.83 List price: $4.73
  • Bolt
    • Ref No: 20
    • Part No: DS501014
    • Qty Req: 4
    Our price: $2.66 List price: $3.28
  • Bolt
    • Ref No: 21
    • Part No: DS801014
    • Qty Req: 3
    Our price: $2.66 List price: $3.28
