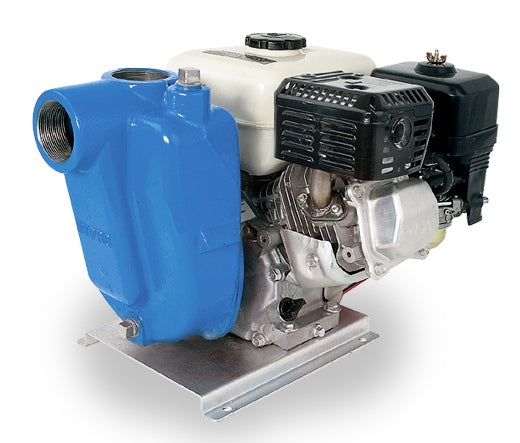

Hypro 1550-SP Centrifugal Pump

Hypro 1550-SP Centrifugal Pump

Brand:
Hypro
Weight:
125.0 lb
Item #
1550SP
Skip to product information
1 of 1

Hypro 1550-SP Centrifugal Pump

Hypro 1550-SP Centrifugal Pump

Brand:
Hypro
Weight:
125.0 lb
Item #
1550SP

Regular price $2,497.80
Sale price $2,497.80 Regular price List Price: $4,163.00

We're here to help!

Let us know if you need assistance finding the right spray equipment

Earn 7,493 points with this purchase.

View full details

Collapsible content

Product Overview

Hypro only makes reliable spraying equipment and the Hypro 1550-SP Centrifugal Pump is no exception. Its high-capacity flow rate makes it easy to distribute water, weed control, fertilizer, or any agricultural chemical. With 155 GPM and 135 PSI, you know you can count on Hypros Centrifugal Pump to help you get the job done.

Manufacturer description

Hypro centrifugal pumps handle big, high-capacity spraying jobs with ease. Use them for spraying liquid fertilizers and other chemicals, including wettable powder slurries for weed control. Make short work of other jobs - filling nurse tanks, watering seed beds, and transferring liquids. The broad, versatile line includes models with rugged housings of cast iron that stand up to strong chemical herbicides. Close-coupled, gas engine-driven. 9 HP Honda gas engine.

Features

  • Gas engine: Honda GX270 9.0 hp recoil start with threaded shaft
  • Pump head: Hypro 1551-SP self priming centrifugal
  • Max flow: 155 gpm
  • Max pressure: 135 psi
  • Port sizes: 2" FNPT inlet, 2" FNPT outlet
  • Housing: Cast iron
  • Seal material: Viton/ceramic standard, Life Guard silicon carbide (B) available
  • Impeller: Nylon
  • Max fluid temperature: 140°F
  • Weight: 105 lbs

Parts breakdown

Diagram

Diagram parts

Parts list

  • Impeller (CCW)
    • Ref No: 3
    • Part No: 04049200P
    • Qty Req: 1
    Our price: $399.73 List price: $493.49
  • Gasket
    • Ref No: 4
    • Part No: 17000121
    • Qty Req: 1
    Our price: $11.92 List price: $14.72
  • O-Ring
    • Ref No: 5
    • Part No: 17200180
    • Qty Req: 1
    Our price: $5.68 List price: $7.01
  • Mechanical Seal (Viton)
    • Ref No: 6
    • Part No: 21200034
    • Qty Req: 1
    Our price: $295.45 List price: $364.75
  • Flange
    • Ref No: 7
    • Part No: 07079200C
    • Qty Req: 1
    Our price: $419.74 List price: $518.20
  • Honda GX270 9 HP Engine (Threaded Shaft)
    • Ref No: 8
    • Part No: GX270UPA2
    • Qty Req: 1
    Our price: $765.00 List price: $850.00
  • Slinger Ring
    • Ref No: 9
    • Part No: 14100091
    • Qty Req: 1
    Our price: $5.86 List price: $7.23
  • Bolt
    • Ref No: 10
    • Part No: 22100086
    • Qty Req: 6
    Our price: $1.51 List price: $1.86
  • Bolt
    • Ref No: 11
    • Part No: 22100098
    • Qty Req: 4
    Our price: $3.13 List price: $3.87
  • Priming Port Plug
    • Ref No: 12
    • Part No: 24060034
    • Qty Req: 1
    Our price: $6.93 List price: $8.56
  • Pump Casing
    • Ref No: 13
    • Part No: 01529075C
    • Qty Req: 1
    Our price: $1,680.05 List price: $2,074.13
  • Pump Shaft
    • Ref No: 18
    • Part No: 4035111
    • Qty Req: 1
    Our price: $4.25 List price: $4.25
  • Plug
    • Ref No: 14
    • Part No: 24060002
    • Qty Req: 1
    Our price: $3.52 List price: $4.34
