Product Overview

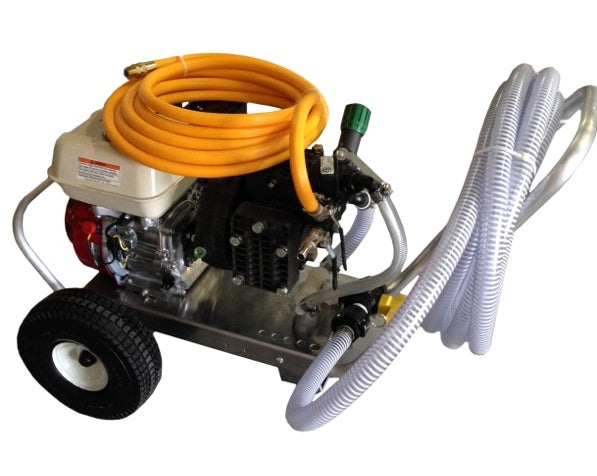

The KHLT4055 Hydrostatic Test Pump is ideal for testing a variety of lines and pipes in industrial settings such as plumbing and construction, and it can even be customized to your specifications. This pump also can be used to move water. Equipped with a Honda GX160 5.5 HP engine and an Udor KAPPA-40/GR diaphragm pump, this model is made to be strong and long-lasting as well as versatile.

Manufacturer description

2-wheel aluminum frame with a Honda GX160 5.5 hp engine coupled to the Udor KAPPA-40/GR diaphragm pump. Includes 12' of suction hose with strainer and 10' of discharge hose.

Features

KHLT4055
  • Aluminum, 2-Wheel
  • 10.5" diameter fully pneumatic studded tires with ball bearings
  • 13" between tires
  • Weight: 22 lbs
  • KAPPA-40/GR:
  • Max flow: 10.5 gpm
  • Max pressure: 560 psi
  • Includes 6010.24 control unit and 5027.75 gearbox with 3/4" hollow shaft for mounting on 5 to 6.5 hp engines
  • Port sizes: 1" HB inlet, (2) 1/2" HB outlet and 3/4" HB bypass
  • Pump shaft rotation: CW and CCW
  • Diaphragms: 2, semi-hydraulic, Desmopan® standard Buna available
  • Housing: Anodized aluminum
  • Max fluid temperature: 140°F Honda GX160 Engine:
  • Engine type: Air-cooled 4-stroke OHV
  • Starting sytem: Recoil starter
  • Shaft: 3/4" solid keyed
  • Bore x stroke: 68 x 45 mm
  • Displacement: 163 cm3
  • Net power output: 4.8 HP (3.6 kW) @ 3600 rpm
  • Net torque: 7.6 lb-ft (10.3 Nm) @ 2500 rpm
  • PTO shaft rotation: Counterclockwise from PTO shaft side
  • Compression ratio: 9.0 : 1
  • Lamp/Charge coil options: 25W, 50W / 1A, 3A, 7A
  • Carburetor: Butterfly
  • Ignition system: Transistorized magneto
  • Lubrication system: Splash
  • Governor system: Centrifugal mechanical
  • Air cleaner: Dual element
  • Oil capacity: 0.61 US qt. (0.58 L)
  • Fuel tank capacity: 3.3 US qts (3.1 liters)
  • Fuel: Unleaded 86 octane or higher
  • Dry weight 33 lbs (15.1 kg)
  • Dimensions: 12.2 in long x 14.3 in wide x 13.6 in high (312 x 362 x 346 mm)
  • Warranty: 3 year commercial warranty (limited to manufacturer defects)
