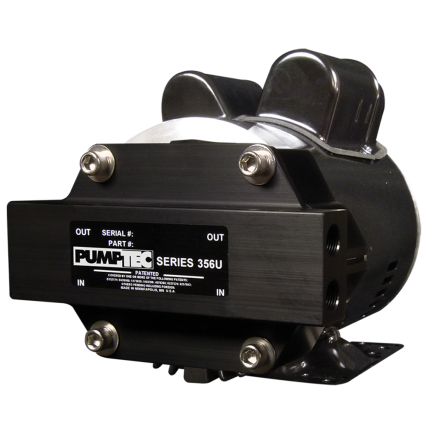

HARD SURFACE PUMP SET, 356U-220/M44, 230 VOLT

HARD SURFACE PUMP SET, 356U-220/M44, 230 VOLT

Brand:
Pumptec
Weight:
55.0 lb
Item #
80836
Skip to product information
1 of 1

HARD SURFACE PUMP SET, 356U-220/M44, 230 VOLT

HARD SURFACE PUMP SET, 356U-220/M44, 230 VOLT

Brand:
Pumptec
Weight:
55.0 lb
Item #
80836

Regular price $1,591.46
Sale price $1,591.46 Regular price List Price: $1,872.31

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 4,774 points with this purchase.

View full details

Collapsible content

Product Overview

With its 3.17 GPM flow rate and a max pressure rating of 1200 PSI, this Pumptec 356U-190/M64 120V Pump & Motor is perfect for your high-pressure sprayer systems. Include with your portable commercial equipment, and you get unmatched durability from a long-lasting pump and motor from a leading manufacturer.
QR codes on the new Pumptec manifolds will take you directly to their website service manuals.

Manufacturer description

Pumptec pump series 356U with plunger type design is the most efficient way possible to pressurize water. This efficiency produces up to 20% more pressure or flow for a given power input compared to competitive pumps. The series offers a variety of pump and motor combinations customized to meet specific application requirements. Typical applications include pressure cleaning,Pest spraying and misting. All pumps are factory lubricated for long-lifePerformance. The only tool to completely disassemble the pump to its basic components is a 3/16" hex wrench. Durability andPerformance results from exclusive use of premium materials. All metallic wetted parts are stainless steel. An aircraft-grade anodized aluminum pump with Teflon hard-coat body is nearly indestructible compared to pumps made of castings. The body offers chemical compatibility with a wide variety of chemicals. Epoxy and other coatings are available for high and low pH applications. Flow and pressure can be optimized to exactly match power input to nozzle size, and offers an assortment of eccentrics for low, medium and high pressure to match your application requirement.
  • Performance Features
  • Long Life
  • High-Pressure
  • High-Efficiency
  • Serviceability
  • Durability
  • Application Flexibility
  • Chemical Compatibility
  • Compact Design
  • Enhanced Priming

Features

  • Voltage: 120 VAC, 120/230 VAC, 230 VAC
  • Max flow: 3.17 gpm
  • Max pressure: 1200 psi
  • Port sizes: (2) 3/8" FNPT inlet, (2) 3/8" FNPT outlet
  • Housing: Anodized aluminum
  • Seals: U-Cup
  • Valves: Stainless steel
  • O-rings: Buna
  • Max draw: 15/7.5
  • Max fluid temperature: 140°F
  • Weight: 48 lbs

Parts breakdown

Diagram

Diagram parts

Parts list
