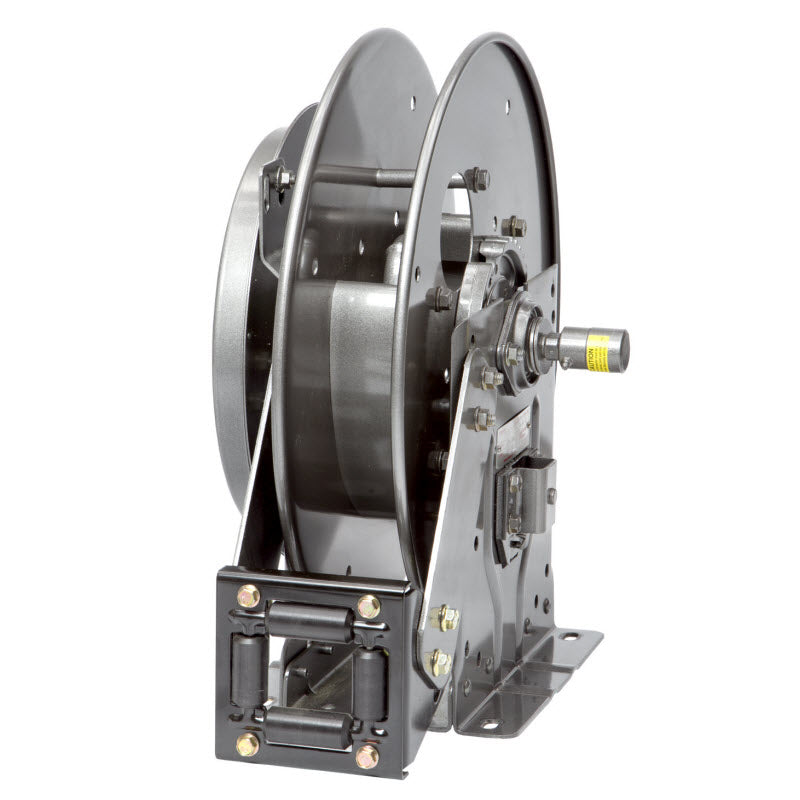

Hannay N716-23-24-15.5J Spring Rewind

Handles 1/4" ID to 1/2" ID Hose

This model holds up to 65' of 3/8" or 1/2" hose. Spring type J, 17 usable turns.

For: Lubrication, Air/Water, Assembly Operations, Washdown, Air Tools & General Industrial Applications

Features:

• Standard N Series has a narrow frame and compact mounting base

• Non sparking ratchet assembly

• Declutching arbor to prevent damage from reverse winding

• Standard inlet 90° balanced pressure swivel joint 1/2" female NPT threads

• Standard outlet 1/2" female NPT threads

• Standard Pressures to 3000 psi (207 bar) (available up to10,000 psi 690 bar)

• Temperatures from -60° F to +250° F (-51° C to +121° C)

• Consult factory for other pressures & temps

• 4-way roller assembly

• Constant Tension is available – consult factory

Download Product Manual
