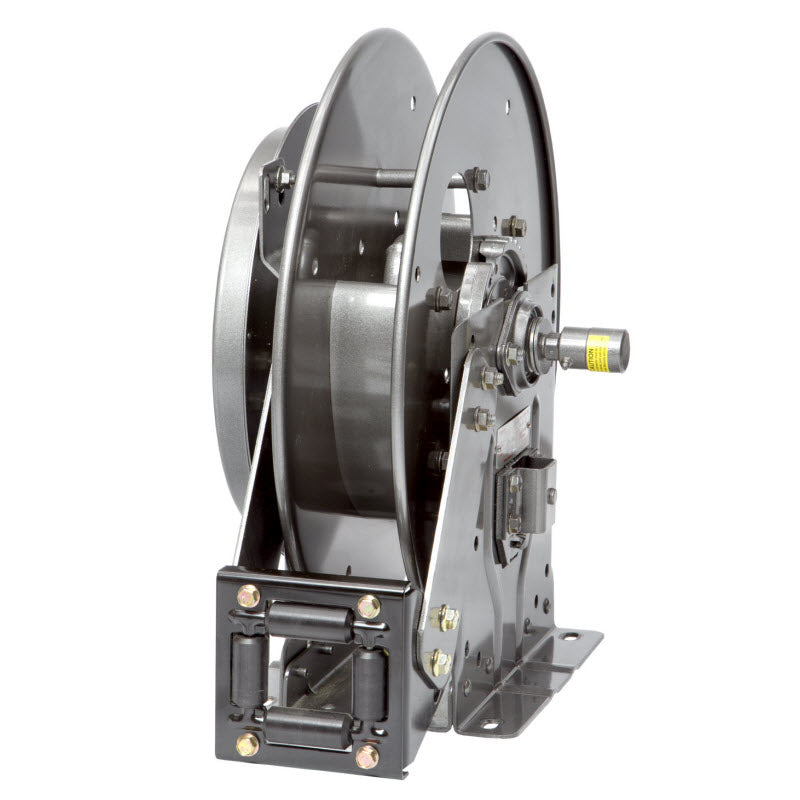

Hannay N716-23-24-15.5G Spring Rewind
Hannay N716-23-24-15.5G Spring Rewind
Handles 1/4" ID to 1/2" ID Hose
This model holds up to 75' of 3/8", 65' of 1/2", or 100' of 1/4" hose. Spring type G, 25 usable turns.
For: Lubrication, Air/Water, Assembly Operations, Washdown, Air Tools & General Industrial
Applications
Features:
• Standard N Series has a narrow frame and compact mounting
base
• Non sparking ratchet assembly
• Declutching arbor to prevent damage from reverse winding
• Standard inlet 90° balanced pressure swivel joint 1/2" female
NPT threads
• Standard outlet 1/2" female NPT threads
• Standard Pressures to 3000 psi (207 bar) (available up to10,000 psi
690 bar)
• Temperatures from -60° F to +250° F (-51° C to +121° C)
• Consult factory for other pressures & temps
• 4-way roller assembly
• Constant Tension is available – consult factory
