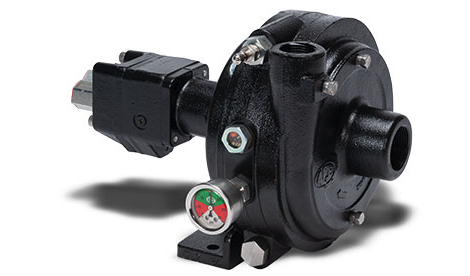

FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)

FMCWS-125-HYD-206-PWM Centrifugal Pump (Oasis™ WetSeal)

Brand:
Ace Pumps
Weight:
51.0 lb
Item #
FMCWS125HYD204

Regular price $1,265.55
Sale price $1,265.55 Regular price List Price: $2,301.00

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 3,797 points with this purchase.

View full details

Collapsible content

Product Overview

The Pro 5 Series has the same compact, close coupled design that you have come to expect with several new features to maximize life and reliability. E-coat corrosion protection and larger bearings provide longer life. Oasis Wet Seal Technology prevents run dry failure and isolates seals from harsh chemicals. Interchangeability of parts within the Pro 5 Series simplifies stock and reduces inventory needed for field support.   

Manufacturer description

  • E-Coated cast iron housings for added corrosion resistance
  • Larger bearings provide longer life
  • Ace Pump's exclusive Oasis WetSeal Technology
  • Optional motor with integrated PWM (pulse width modulated) motor for precision applications
  • The 204 motor requires 4 GPM(15.1 LPM) maximum hydraulic fluid input.
    • Pressure Compensating Closed Center Systems
    • Open Center Systems up to 13 GPM (49.2 LPM) using internal needle valve bypass.


Features

  • Ports -1-¼" suction, 1" discharge
  • Max Flow-  92 GPM (350LPM)
  • Max Pressure- 120 PSI (8.3 BAR)
  • Construction- E- coated Cast Iron
  • Seal- Carbon Ceramic/ FKM
  • Shaft- Stainless Steel
  • Bearings- Sealed for Long Life
  • Impeller- Thermoplastic with Stainless Steel Hub
  • Wear Ring- Stainless Steel

Parts breakdown

Diagram

Diagram parts
