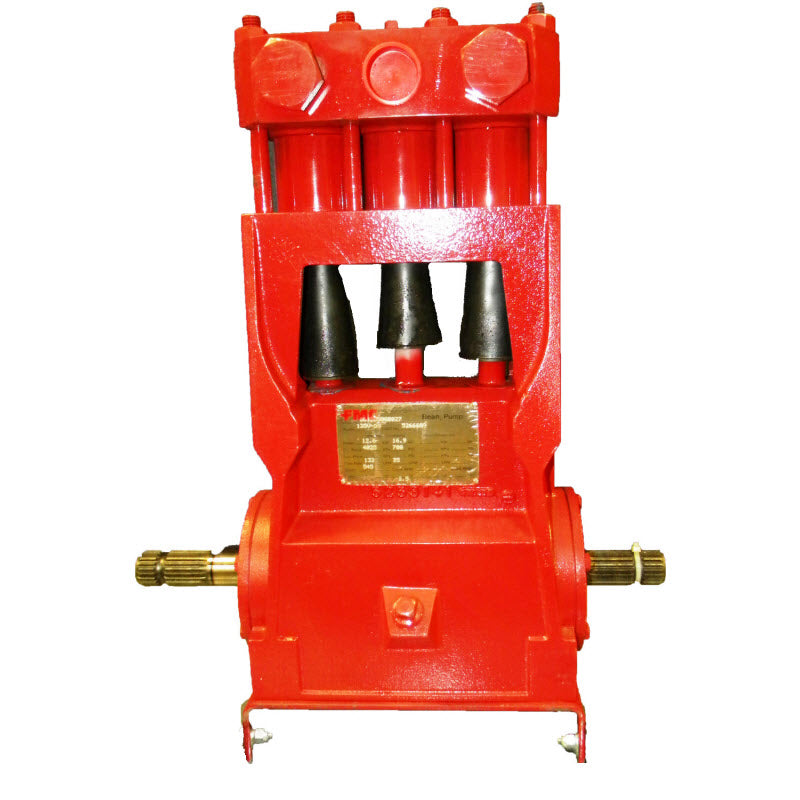

FMC John Bean 130VD Piston Pump

FMC John Bean 130VD Piston Pump

Brand:
FMC/John Bean
Weight:
180.0 lb
Item #
5257505
  • FMC John Bean 130VD Piston Pump
1 1

FMC John Bean 130VD Piston Pump

FMC John Bean 130VD Piston Pump

Brand:
FMC/John Bean
Weight:
180.0 lb
Item #
5257505

$12,588.00
$12,588.00 List Price: $15,983.45

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 37,764 points with this purchase.

See Details

View full details

Product Overview

35 GPM, 700 PSI.

2-1/4" Bore, vertical mounted and double shaft.

All FMC pumps have cast iron cases; positive-action disc-type hardened stainless steel valves; non-wearing ceramic cylinders for long life and corrosion resistance; heavy-duty, oversized ball bearings; spring-loaded seals to keep oil in and dirt out and all working parts are totally enclosed and lubricated in an oil bath.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Pump Case
    • Ref No: 1
    • Part No: 5253742
    • Qty Req: 1
    Our price: $1,686.25 List price: $1,775.00
  • Crankshaft
    • Ref No: 2
    • Part No: 5257504
    • Qty Req: 1
    Our price: $1,116.25 List price: $1,131.36
  • Bearing Housing
    • Ref No: 3
    • Part No: 5254176
    • Qty Req: 2
    Our price: $168.15 List price: $177.00
  • Cone Bearing Timken
    • Ref No: 4
    • Part No: 320125
    • Qty Req: 2
    Our price: $81.00 List price: $81.00
  • Cup Bearing Timken
    • Ref No: 5
    • Part No: 320124
    • Qty Req: 2
    Our price: $60.50 List price: $60.50
  • Bearing Insert (Pair)
    • Ref No: 6
    • Part No: 5257669
    • Qty Req: 3
    Our price: $62.56 List price: $93.60
  • Gasket
    • Ref No: 7
    • Part No: 5254177
    • Qty Req: 2
    Our price: $4.04 List price: $4.50
  • Wrist Pin
    • Ref No: 8
    • Part No: 5262026
    • Qty Req: 3
    Our price: $42.66 List price: $53.88
  • Seal
    • Ref No: 9
    • Part No: 5257492
    • Qty Req: 2
    Our price: $17.20 List price: $20.64
  • Mounting Base
    • Ref No: 11
    • Part No: 5257793
    • Qty Req: 1
    Our price: $95.00 List price: $100.00
  • Magnetic drain plug, 1/4î pipe
    • Ref No: 12
    • Part No: 1101305
    • Qty Req: 1
    Our price: $17.10 List price: $18.00
  • Connecting Rod Assembly
    • Ref No: 13
    • Part No: 5262025
    • Qty Req: 3
    Our price: $296.80 List price: $356.16
  • Bolt
    • Ref No: 14
    • Part No: 5257481
    • Qty Req: 6
    Our price: $14.73 List price: $15.50
  • Bushing
    • Ref No: 16
    • Part No: 5254242
    • Qty Req: 3
    Our price: $31.35 List price: $31.50
  • Crosshead Assembly
    • Ref No: 17
    • Part No: 5259544
    • Qty Req: 3
    Our price: $457.80 List price: $467.18
  • Umbrella Washer
    • Ref No: 18
    • Part No: 5256683
    • Qty Req: 3
    Our price: $34.36 List price: $41.23
  • O-Ring
    • Ref No: 19
    • Part No: 1101176
    • Qty Req: 3
    Our price: $3.60 List price: $4.68
  • Packing Cup Holder
    • Ref No: 20
    • Part No: 8495
    • Qty Req: 3
    Our price: $146.58 List price: $174.31
  • Cylinder Packing, 2-1/4"
    • Ref No: 21
    • Part No: A3434N
    • Qty Req: 3
    Our price: $37.31 List price: $39.60
  • Packing Washer
    • Ref No: 22
    • Part No: 1207289
    • Qty Req: 3
    Our price: $5.46 List price: $5.88
  • Nut, Plunger-Slotted (Brass)
    • Ref No: 23
    • Part No: A5016
    • Qty Req: 3
    Our price: $57.09 List price: $57.09
  • Hex Nut (Brass)
    • Ref No: 24
    • Part No: 8309
    • Qty Req: 3
    Our price: $10.08 List price: $10.08
  • Plug 3/4 Blk. Std.
    • Ref No: 25
    • Part No: 11471
    • Qty Req: 2
    Our price: $3.80 List price: $4.00
  • 5283626 FMC 130/135 Pumps Packing Kit
    • Ref No: 27
    • Part No: 5283626
    • Qty Req: 0
    Our price: $96.62 List price: $101.71
  • Cylinder Gasket
    • Ref No: 27
    • Part No: 1280024
    • Qty Req: 6
    Our price: $3.80 List price: $4.93
  • Discharge Valve Assembly
    • Ref No: 28
    • Part No: 5283587
    • Qty Req: 3
    Our price: $128.25 List price: $135.00
  • Valve Seat
    • Ref No: 29
    • Part No: 5257080
    • Qty Req: 1
    Our price: $57.71 List price: $60.75
  • Valve Spring
    • Ref No: 30
    • Part No: 5283282
    • Qty Req: 1
    Our price: $20.43 List price: $21.50
  • Valve Disc
    • Ref No: 31
    • Part No: 5257079
    • Qty Req: 1
    Our price: $22.56 List price: $23.75
  • Washer
    • Ref No: 32
    • Part No: 5257078
    • Qty Req: 1
    Our price: $9.50 List price: $10.00
  • Snap Ring
    • Ref No: 33
    • Part No: 3265034
    • Qty Req: 1
    Our price: $23.75 List price: $27.96
  • Suction Valve Assembly
    • Ref No: 34
    • Part No: 5283586
    • Qty Req: 3
    Our price: $128.25 List price: $135.00
  • Valve Seat
    • Ref No: 35
    • Part No: 5257289
    • Qty Req: 1
    Our price: $123.50 List price: $130.00
  • 5283588 Valve Kit 125/130/135/L0614SC
    • Ref No: 40
    • Part No: 5283588
    • Qty Req: 0
    Our price: $775.30 List price: $815.00
  • Plug 1-1/4"
    • Ref No: 41
    • Part No: 5260800
    • Qty Req: 2
    Our price: $18.60 List price: $22.32
  • Umbrella
    • Ref No: 42
    • Part No: 5255826
    • Qty Req: 3
    Our price: $9.50 List price: $10.00
  • Sleeve
    • Ref No: 43
    • Part No: 5255823
    • Qty Req: 3
    Our price: $2.85 List price: $2.88
  • Stud
    • Ref No: 45
    • Part No: 5255827
    • Qty Req: 8
    Our price: $17.58 List price: $18.00
  • Ceramic Cylinder Steel Lined, 2-1/4" *
    • Ref No: 46
    • Part No: 1209139
    • Qty Req: 3
    Our price: $261.25 List price: $275.00
  • Base Gasket
    • Ref No: 47
    • Part No: 5254217
    • Qty Req: 1
    Our price: $5.46 List price: $6.34
  • Plug 1"
    • Ref No: 48
    • Part No: 5260799
    • Qty Req: 2
    Our price: $6.65 List price: $7.20
  • Valve Chamber
    • Ref No: 49
    • Part No: 5266484
    • Qty Req: 1
    Our price: $871.90 List price: $1,186.92
  • Shim
    • Ref No: 50
    • Part No: 5254178
    • Qty Req: 0
    Our price: $4.04 List price: $5.00
  • Plug 1/4" Std. Galv.
    • Ref No: 51
    • Part No: 11465
    • Qty Req: 4
    Our price: $3.47 List price: $3.86
