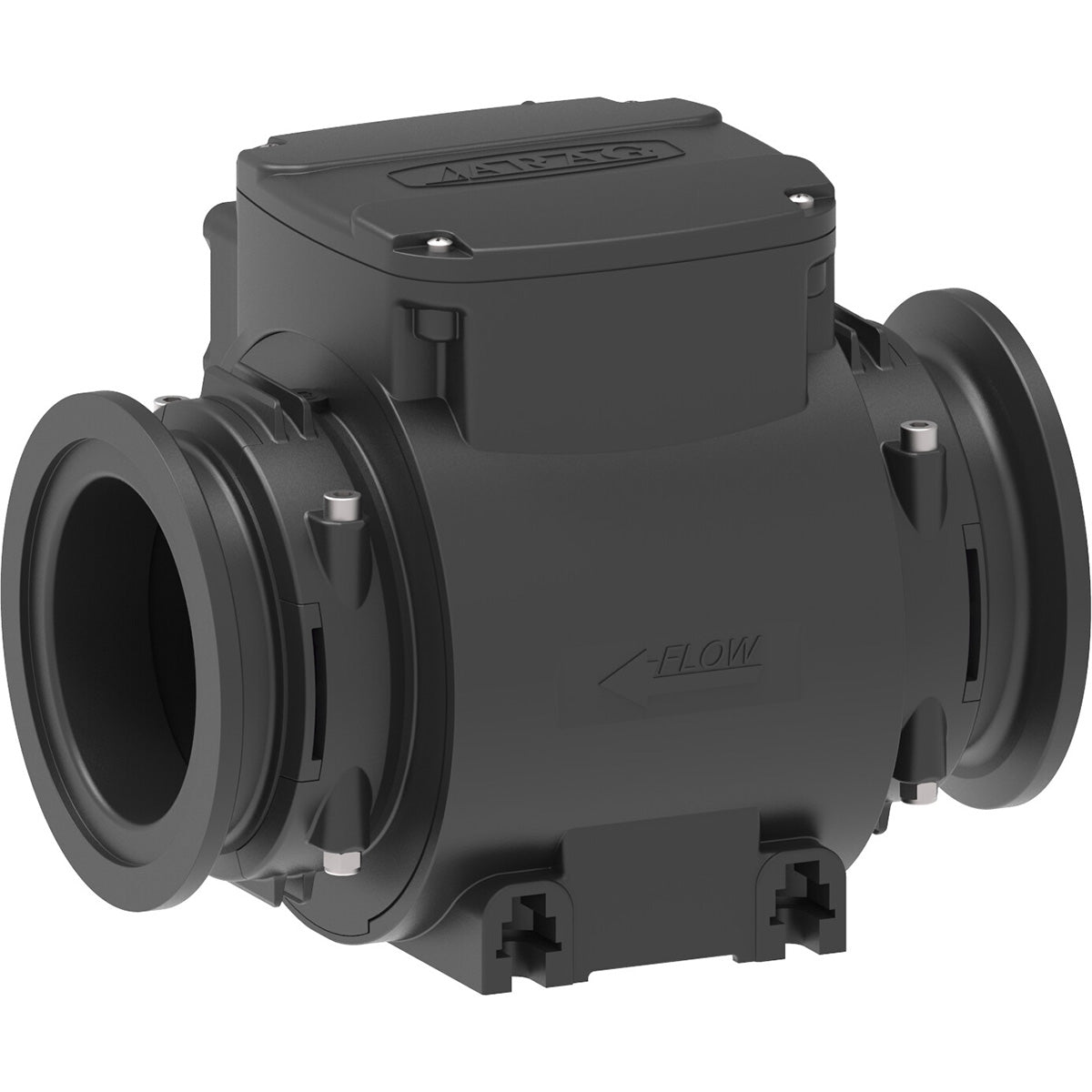

ARAG Orion X Flowmeters are precise and easy to install. The most common flowmeter used in agricultural spraying applications. 3" internal passage and measures flow rates from 16 to 660 gpm.

ARAG is the largest Italian manufacturer of sprayer parts and equipment. Pumps, spray guns, fittings, electronics, etc. - you name and they probably make it!

ORION X is a flowmeter, namely a device allowing to measure the quantity of liquid flowing through it. ORION X is an electromagnetic device, hence there are no moving parts. The VISUALFLOW version, in addition, allows displaying the flowrate and dispensed volume as well as managing the filling of a tank

Download Product Manual

Specs:

• Connection: A-NET
• Ports: 3" Full Port
• Flow rate: 16 to 660 US GPM
• Max Pressure: 72 PSI
• Internal Passage: 3"
• Pulses: 91 pls/Gal

Benefits:

• No mechanical moving parts inside the pipe
• Performances independent from fluid density and viscosity
• Low sensitivity to turbulence
• Electronic cleaning of conductive deposits
• High precision
• Low maintenance

Features:

• Typical error: 0.5% full scale
• Working pressure: up to 5 bar / 72 PSI
• Flowrate up to 660 US GPM.
• Power supply: 9 to 16 VDC
• 0 ÷ 12 VDC pulse output with frequency proportional to rate
• A-net (Can-Bus) connection.
• Output only by flowing fluid
• Operating status LED
• Max consumption: 300 mA
• Parts in contact with fluid are in Nylon® reinforced with fiberglass and AISI 316 stainless steel.
