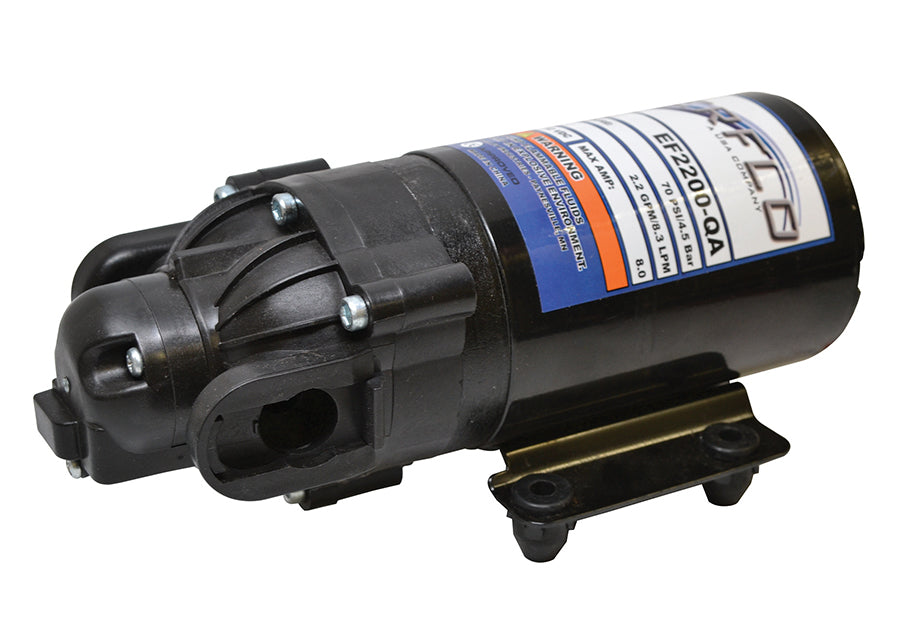

EF2200-QA Everflo 12V Diaphragm Pump w/ Quick Attach Ports

EF2200-QA Everflo 12V Diaphragm Pump w/ Quick Attach Ports

Brand:
Everflo
Weight:
4.7 lb
Item #
EF2200QA
1 1

EF2200-QA Everflo 12V Diaphragm Pump w/ Quick Attach Ports

EF2200-QA Everflo 12V Diaphragm Pump w/ Quick Attach Ports

Brand:
Everflo
Weight:
4.7 lb
Item #
EF2200QA

$141.73
$141.73 List Price: $188.97

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 425 points with this purchase.

See Details

View full details

Product Overview

EF2200-QA Everflo 12V Diaphragm Pump w/ Quick Attach Ports

2.2 GPM, 70 PSI, 8.0 Max Draw

Viton Valves, Santoprene Diaphragm.

Manufacturer description

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Features

  • Polypropylene pump housing and valve plate
  • Zinc plated steel fasteners
  • Painted steel 3” motor shell
  • Honeywell Micro Switch
  • Round-Up ready
  • Self priming up to 8’
  • Maximum fluid temperature 140°F
  • Quick attach ports
  • Inline fuse protection

Parts breakdown

Diagram

Diagram parts

Parts list

  • MOTOR
    • Ref No: 1
    • Part No: EF787378
    • Qty Req: 1
    Our price: $65.50 List price: $65.50
  • BASE PLATE ASSY
    • Ref No: 2
    • Part No: EF780254
    • Qty Req: 1
    Our price: $4.18 List price: $4.64
  • DIAPHRAGM ASSY
    • Ref No: 3
    • Part No: EF795271
    • Qty Req: 1
    Our price: $19.50 List price: $19.50
  • VALVE PLATE ASSY
    • Ref No: 4
    • Part No: EF794989
    • Qty Req: 1
    Our price: $8.10 List price: $8.10
  • QA Pump Head Assembly
    • Ref No: 5
    • Part No: EF787418
    • Qty Req: 1
    Our price: $15.84 List price: $17.60
  • EF2200 Everflo Pressure Switch
    • Ref No: 6
    • Part No: EF788026
    • Qty Req: 1
    Our price: $16.20 List price: $16.20
