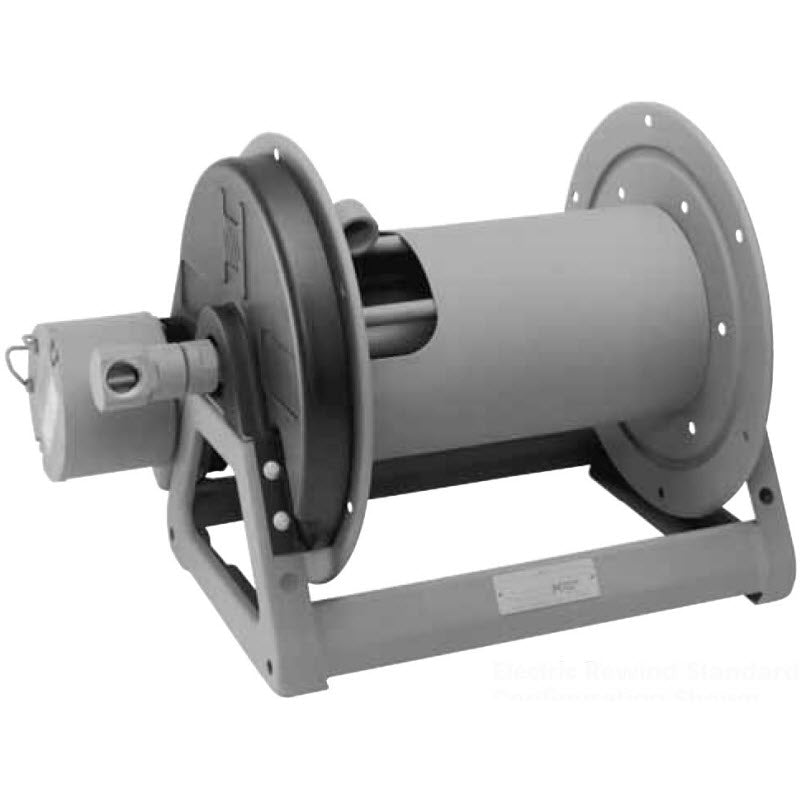

Hannay E4030-17-18 Electric Rewind Hose Reel

22" between the discs. Handles 3/4" to 1" ID hose

E4030-17-18 can hold up to 150' of 3/4" ID hose or 75' of 1" ID hose.

Features:

-Lightweight compact reels designed for long lengths of hose

-Chain and sprocket drive powered by electric, hydraulic or compressed air motor

-Standard inlet is 90º ball bearing swivel joint with 1" female NPT threads

-Comet brake is standard on power rewind reels

-Standard outlet is 1" female NPT threads

-Optional rollers available

-Operating pressure up to 2000 psi

-Operating temperatures from -60° F to +250° F (-51° C to +121° C)

Download Product Manual
