E1536-17-18 Hannay Electric 28

E1536-17-18 Hannay Electric 28" Hose Reel (3000 PSI Max)

Item Code:
E15361718
Weight:
129.0 lb
Manufacturer:
Hannay
Our price:
$690.00
List price:
$724.85
Overview:

The Hannay Electric Hose Reel has a 1/3 HP motor to make winding your hoses back up simple. The lightweight structure is made to keep long hoses neatly wound. It is possible to store up to 475 feet of standard 1/2" ID hose with the Hannay hose reel. The chain and sprocket drive is powered by hydraulic, electric, or compressed air motor.

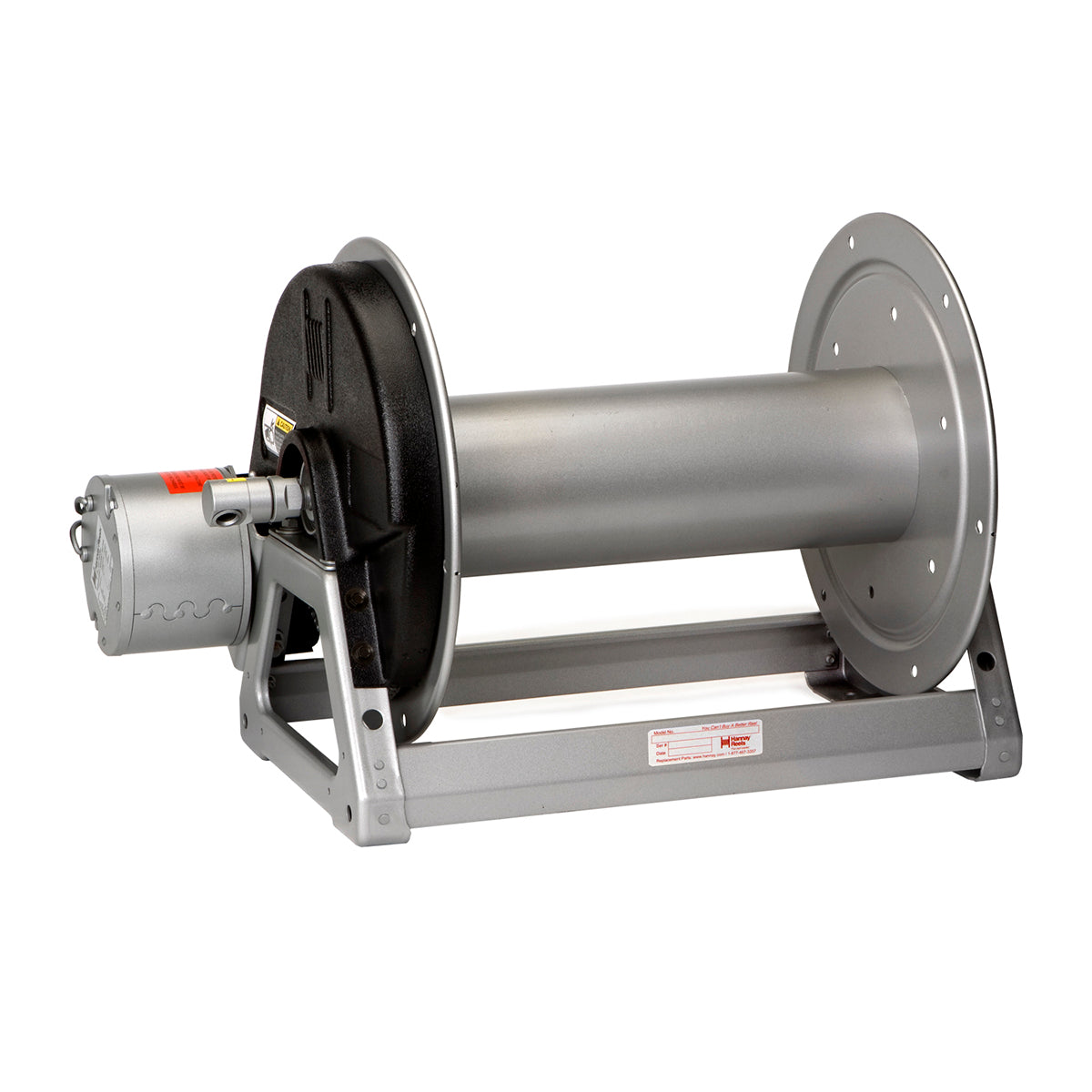

**This model is 28" between the discs. 18" reel shown in picture**

Manufacturer Description:

Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more Ð never retrofitted to the job. That means you can trust Hannay reels to be durable and dependable for years to come.

Features:

  • Rewind: Electric
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Distance between discs: 28"
  • 1/3 hp electric motor (12V power source needed)

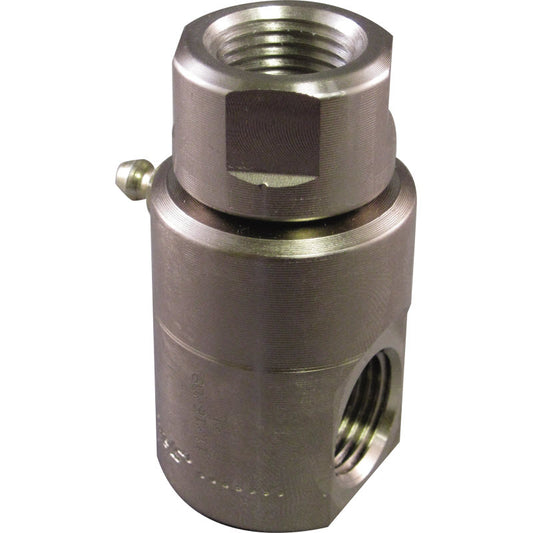

  • Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
  • Standard outlet: 1/2" female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) Ð must specify
  • Temperatures from +20° F to +400° F (-7° C to +204° C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4" to 5/8" ID
  • Capacity of Reel: 350 to 475 feet depending on ID of hose
  • 1/2" ID hose capacity: 475 feet
  • 5/8" ID hose capacity: 350 feet
  • Approximate weight: 53 lbs

Parts breakdown

Parts list

  • Ref No: 7
  • Part No: 99570030
  • Qty Req: 1
Our price: $30.69 List price: $31.00
  • Ref No: 28
  • Part No: 99540007
  • Qty Req: 4
Our price: $1.86
  • Ref No: 28
  • Part No: 99540020
  • Qty Req: 0
Our price: $1.00
  • Ref No: 28
  • Part No: 99650040
  • Qty Req: 2
Our price: $8.37 List price: $9.00
  • Ref No: 55c
  • Part No: 99650013
  • Qty Req: 1
Our price: $3.79
  • Ref No: 55a
  • Part No: 99140051
  • Qty Req: 1
Our price: $46.50 List price: $50.00
  • Ref No: 57b
  • Part No: 99190004
  • Qty Req: 1
Our price: $125.55 List price: $135.00
