E1530-17-18H5MSS Hannay Electric 22

E1530-17-18H5MSS Hannay Electric 22" Hose Reel (Stainless Steel Internals, 5000 PSI Max)

Item Code:
80.0 lb
Our price:
List price:

Hold up to 200' of 1/2" ID or 300' of 3/8" ID Hose with the E1520-17-18H5MSS (upgraded to handle up to 5000 psi) Hannay Electric 12" Hose Reel. This customized reel also has a stainless steel swivel and internal pipe. The motor, push button and solenoid are included.

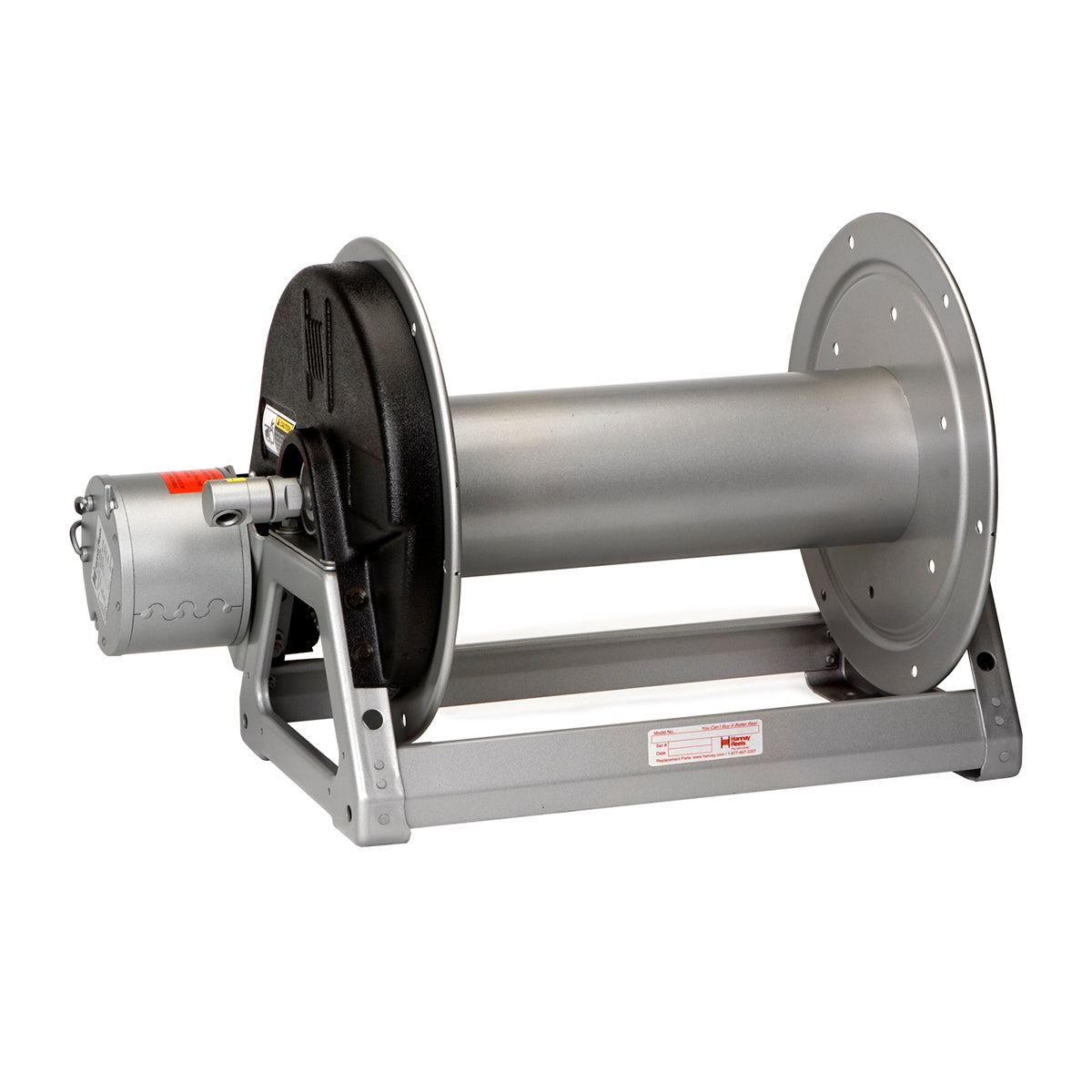

**18" reel shown in picture**

Manufacturer Description:

Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more - never retrofitted to the job. That means you can trust Hannay reels to be durable and dependable for years to come.


  • Rewind: Electric
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Swivel and hub assembly (internal pipe) are stainless steel
  • 1/3 hp 12V electric motor (power source required)
  • Distance between discs: 22"
  • Standard inlet: 90° ball bearing swivel joint, 1/2" female NPT threads
  • Standard outlet: 1/2" female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 5000 psi, available up to 10,000 psi (690 bar) Ð must specify
  • Temperatures from +20° F to +400° F (-7° C to +204° C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4" to 5/8" ID
  • Capacity of Reel: 300 to 600 feet (83.8 to 152.4 meters) depending on ID of hose
  • 1/4" ID hose capacity: 600 feet
  • 3/8" ID hose capacity: 500 feet
  • 1/2" ID hose capacity: 400 feet
  • 5/8" ID hose capacity: 300 feet
  • Approximate weight: 51 lbs
