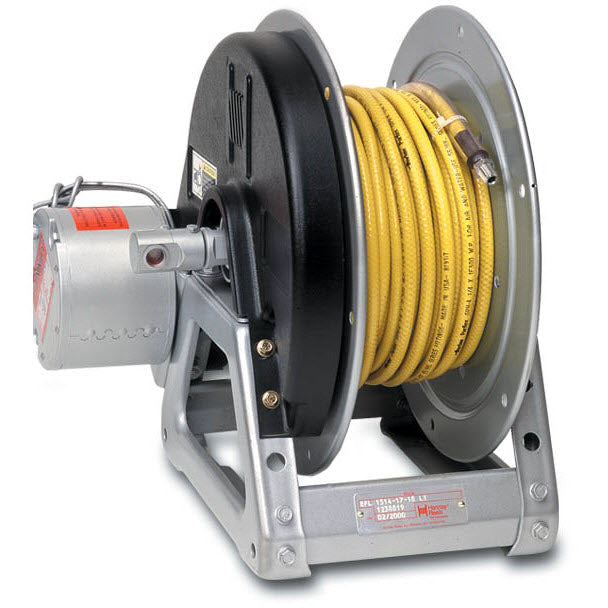

E1514-17-18 Hannay Electric Hose Reel

E1514-17-18 Hannay Electric Hose Reel

Item Code:
E15141718
Weight:
65.0 lb
Manufacturer:
Hannay
Our price:
$600.00
List price:
$645.00
Overview:

Are you building a new spray rig? There's no going back once you become accustomed to working with a USA-made Hannay electric hose reel. The E1514-17-18 model features lightweight construction, electric rewind with solenoid and switch and a 1/3 HP motor. Full diagrams and parts lists are available for easy maintenance.

**Hose shown on reel in picture sold separately**

Manufacturer Description:

Built to order in the Hannay factory located in New York. Lightweight, compact reels designed for long lengths of hose in manual and power rewind. Direct crank rewind is permanently attached. Chain and sprocket drive powered by electric, hydraulic, or compressed air motor. Designed to spec and built of the highest quality materials, our reels stand up to the most demanding conditions of any industry. We offer thousands of hose and cable reels that help improve efficiency, productivity, and safety in your operation by keeping hoses and cables organized and off the floor. The heavy-duty design and construction of our reels ensure that they outlast the competition and save you money. And bolted-on components and conveniently located swivel joints make servicing our reels quick and trouble-free. Every reel we build is created for the industry in which it will be used, from processing to welding to maintenance and more Ð never retrofitted to the job. That means you can trust Hannay reels to be durable and dependable for years to come.

Features:

  • Rewind: Electric
  • Construction: Carbon steel, e-coated and then finished with a modified high performance acrylic enamel paint (metallic graphite color)
  • Distance between discs: 6"
  • 1/3 hp electric motor (12V power source needed)
  • Standard inlet: 90 degree ball bearing swivel joint, 1/2" female NPT threads
  • Standard outlet: 1/2" female NPT threads
  • Optional rollers available: FH3 (open top) and C roller (fully enclosed) assemblies available to mount on hose reel
  • Standard pressures to 3000 psi (207 bar), available up to 10,000 psi (690 bar) Ð must specify
  • Temperatures from +20 F to +400 F (-7 C to +204 C)
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4" to 5/8" ID
  • Capacity of Reel: 50 to 175 feet depending on ID of hose
  • 1/4" ID hose capacity: 175 feet
  • 3/8" ID hose capacity: 125 feet
  • 1/2" ID hose capacity: 75 feet
  • 5/8" ID hose capacity: 50 feet
  • Approximate weight: 45 lbs

Parts breakdown

Parts list

  • Ref No: 7
  • Part No: 99570030
  • Qty Req: 1
Our price: $30.69 List price: $31.00
  • Ref No: 28
  • Part No: 99540007
  • Qty Req: 4
Our price: $1.86
  • Ref No: 28
  • Part No: 99540020
  • Qty Req: 0
Our price: $1.00
  • Ref No: 28
  • Part No: 99650040
  • Qty Req: 2
Our price: $8.37
  • Ref No: 55c
  • Part No: 99650013
  • Qty Req: 1
Our price: $3.79
  • Ref No: 55a
  • Part No: 99140051
  • Qty Req: 1
Our price: $46.50 List price: $50.00
  • Ref No: 57b
  • Part No: 99190004
  • Qty Req: 1
Our price: $125.55 List price: $135.00
