DP-43-P (Poly) Diaphragm Pump

DP-43-P (Poly) Diaphragm Pump

Brand:
John Blue
Weight:
13.0 lb
Item #
DP43P
  • DP-43-P (Poly) Diaphragm Pump
1 1

DP-43-P (Poly) Diaphragm Pump

DP-43-P (Poly) Diaphragm Pump

Brand:
John Blue
Weight:
13.0 lb
Item #
DP43P

$608.12
$608.12 List Price: $1,216.27

Free Shipping on Qualified Orders Over $100

Orders of in-stock products placed within

ship out same day. Learn more

Earn 1,824 points with this purchase.

See Details

View full details

Product Overview

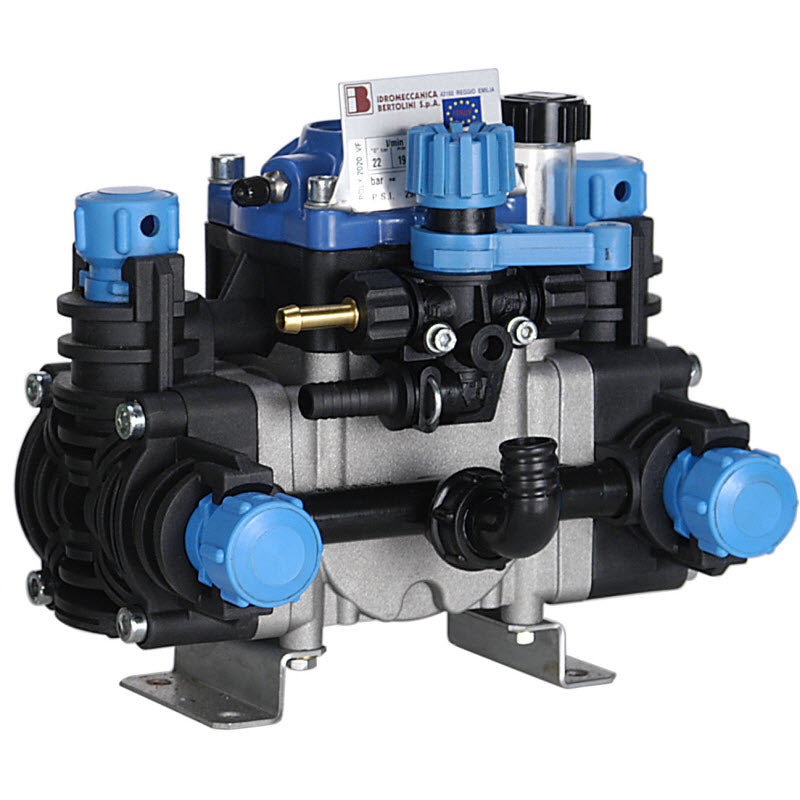

**Regulator shown in picture sold separately**

CDS-John Blue DP-43-P (Poly) Diaphragm Pump

4.3 GPM, 290 PSI

2 Diaphragm pump. Can be driven by PTO, gas engine or electric motor.

Resources

Download Product Manual

Parts breakdown

Diagram

Diagram parts

Parts list

  • Piston Diaphragm
    • Ref No: 1
    • Part No: DP94004031
    • Qty Req: 2
    Our price: $22.57 List price: $30.09
  • Check Valve
    • Ref No: 2
    • Part No: DP94982997
    • Qty Req: 4
    Our price: $21.04 List price: $28.03
  • Pump Head
    • Ref No: 3
    • Part No: DP94030232
    • Qty Req: 2
    Our price: $101.57 List price: $135.42
  • Gasket
    • Ref No: 5
    • Part No: DP82415460
    • Qty Req: 4
    Our price: $6.01 List price: $8.03
  • Outlet Cap
    • Ref No: 6
    • Part No: DP94987897
    • Qty Req: 2
    Our price: $23.15 List price: $30.85
  • Suction Connector
    • Ref No: 8
    • Part No: DP84052100
    • Qty Req: 1
    Our price: $15.50 List price: $19.13
  • O-Ring
    • Ref No: 9
    • Part No: DP80306050
    • Qty Req: 1
    Our price: $3.27 List price: $4.36
  • Inlet Manifold
    • Ref No: 10
    • Part No: DP94986897
    • Qty Req: 1
    Our price: $100.40 List price: $133.86
  • Barb Nut
    • Ref No: 11
    • Part No: SC82004210
    • Qty Req: 1
    Our price: $12.33 List price: $16.43
  • Connecting Rod
    • Ref No: 13
    • Part No: DP94000809
    • Qty Req: 2
    Our price: $49.66 List price: $66.21
  • Piston Sleeve
    • Ref No: 14
    • Part No: DP94000701
    • Qty Req: 2
    Our price: $95.99 List price: $128.00
  • Dampner Body
    • Ref No: 15
    • Part No: DP94986797
    • Qty Req: 1
    Our price: $146.72 List price: $195.62
  • Air Valve
    • Ref No: 17
    • Part No: DP86160500
    • Qty Req: 1
    Our price: $23.76 List price: $31.68
  • Dampener Diaphragm
    • Ref No: 18
    • Part No: DP94004131
    • Qty Req: 1
    Our price: $24.32 List price: $32.41
  • Top Cover
    • Ref No: 19
    • Part No: DP94000309
    • Qty Req: 1
    Our price: $105.28 List price: $140.38
  • Washer
    • Ref No: 20
    • Part No: DP84368500
    • Qty Req: 4
    Our price: $2.87 List price: $3.84
  • Screw
    • Ref No: 21
    • Part No: DP86294500
    • Qty Req: 2
    Our price: $4.09 List price: $5.44
  • Oil Filler
    • Ref No: 24
    • Part No: DP94986697
    • Qty Req: 1
    Our price: $38.03 List price: $50.71
  • Key
    • Ref No: 28
    • Part No: DP80643600
    • Qty Req: 1
    Our price: $20.70 List price: $27.60
  • Ball Bearing
    • Ref No: 31
    • Part No: DP81272500
    • Qty Req: 1
    Our price: $71.25 List price: $87.96
  • Bearing Housing
    • Ref No: 32
    • Part No: DP94033609
    • Qty Req: 1
    Our price: $100.96 List price: $134.61
  • Oil Seal
    • Ref No: 33
    • Part No: DP80209990
    • Qty Req: 1
    Our price: $35.20 List price: $46.94
  • Snap Ring
    • Ref No: 34
    • Part No: DP80136900
    • Qty Req: 1
    Our price: $24.66 List price: $32.88
  • Screw
    • Ref No: 35
    • Part No: DP86318500
    • Qty Req: 4
    Our price: $3.86 List price: $5.15
  • Screw
    • Ref No: 41
    • Part No: DP86205900
    • Qty Req: 4
    Our price: $2.54 List price: $3.38
  • Mounting Rail
    • Ref No: 42
    • Part No: DP94009961
    • Qty Req: 2
    Our price: $64.02 List price: $85.36
  • Screw
    • Ref No: 43
    • Part No: DP86193460
    • Qty Req: 2
    Our price: $4.69 List price: $6.26
  • Outlet Connector
    • Ref No: 44
    • Part No: DP31135751
    • Qty Req: 1
    Our price: $59.44 List price: $79.26
  • O-Ring
    • Ref No: 45
    • Part No: DP80321700
    • Qty Req: 1
    Our price: $2.98 List price: $3.97
  • O-Ring
    • Ref No: 46
    • Part No: DP80308090
    • Qty Req: 1
    Our price: $6.37 List price: $8.50
  • Needle Bearing
    • Ref No: 47
    • Part No: DP81268800
    • Qty Req: 1
    Our price: $57.29 List price: $76.37
  • Spacer
    • Ref No: 48
    • Part No: DP94002632
    • Qty Req: 1
    Our price: $10.07 List price: $13.44
  • Ball Bearing
    • Ref No: 49
    • Part No: DP81252200
    • Qty Req: 1
    Our price: $36.63 List price: $48.85
  • Spacer
    • Ref No: 50
    • Part No: DP94002732
    • Qty Req: 1
    Our price: $5.62 List price: $7.48
  • Connecting Rod Ring
    • Ref No: 52
    • Part No: DP94004776
    • Qty Req: 2
    Our price: $26.69 List price: $35.58
  • Snap Ring
    • Ref No: 53
    • Part No: DP80000300
    • Qty Req: 4
    Our price: $3.38 List price: $4.50
  • Piston Pin
    • Ref No: 62
    • Part No: DP85200400
    • Qty Req: 2
    Our price: $16.98 List price: $22.63
  • Piston
    • Ref No: 63
    • Part No: DP94001708
    • Qty Req: 2
    Our price: $95.74 List price: $127.65
  • Diaphragm Washer/Bolt Kit
    • Ref No: 64
    • Part No: DP94990997
    • Qty Req: 2
    Our price: $50.78 List price: $67.69
  • Screw
    • Ref No: 65
    • Part No: DP86295100
    • Qty Req: 2
    Our price: $4.90 List price: $6.54
  • Screw
    • Ref No: 66
    • Part No: DP86290000
    • Qty Req: 8
    Our price: $3.37 List price: $4.49
  • Oil Filler Cap Assembly
    • Ref No: 68
    • Part No: DP94985597
    • Qty Req: 1
    Our price: $39.51 List price: $52.67
