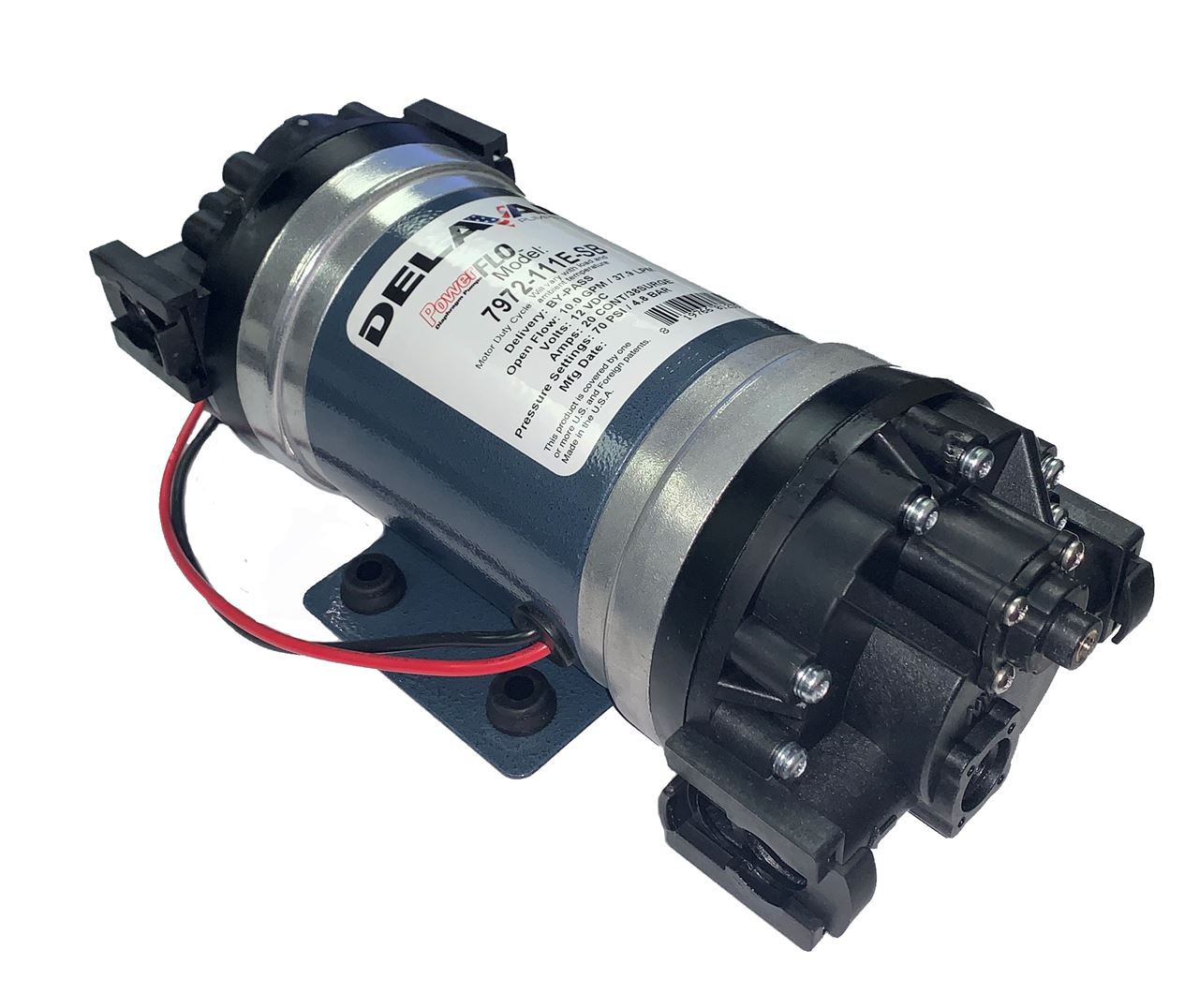

Delavan FB6 Double Pump 7972-111E-SB 12V Electric Diaphragm Pump (Bypass)

Delavan FB6 Double Pump 7972-111E-SB 12V Electric Diaphragm Pump (Bypass)

Brand:
Delavan
Weight:
12.0 lb
Item #
7972111ESB
Skip to product information
1 of 1

Delavan FB6 Double Pump 7972-111E-SB 12V Electric Diaphragm Pump (Bypass)

Delavan FB6 Double Pump 7972-111E-SB 12V Electric Diaphragm Pump (Bypass)

Brand:
Delavan
Weight:
12.0 lb
Item #
7972111ESB

Regular price $303.36
Sale price $303.36 Regular price List Price: $415.56

Earn 910 points with this purchase.

View full details

Collapsible content

Product Overview

The FB6 Double Electric Pump from Delavan is the newest version of their 12V pumps. Quick attach ports and bypass operation make this a great choice for your spray equipment. The santoprene valves and diaphragms provide resistance to corrosion from many types of chemicals, so you are able to pump whatever is necessary, whether it is insecticide or liquid fertilizer.

(Image shown may not match exactly)

Manufacturer description

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The FB6 series are manufactured with Santoprene valves & diaphragms for increased corrosion resistance.

Features

  • Bypass
  • Self-priming up to 14 vertical feet
  • Can run dry without damage
  • Built-in check valve
  • Max flow: 10 gpm (10 gpm at 0 psi)
  • Max pressure: 70 psi (5.3 gpm at 70 psi)
  • Voltage: 12 VDC
  • Component material: Santoprene® valves, Santoprene® diaphragm
  • Port size: 3/4" Quick Attach
  • Max fluid temperature: 140°F
  • Weight: 12 lbs

Parts breakdown

Diagram

Diagram parts

Parts list
