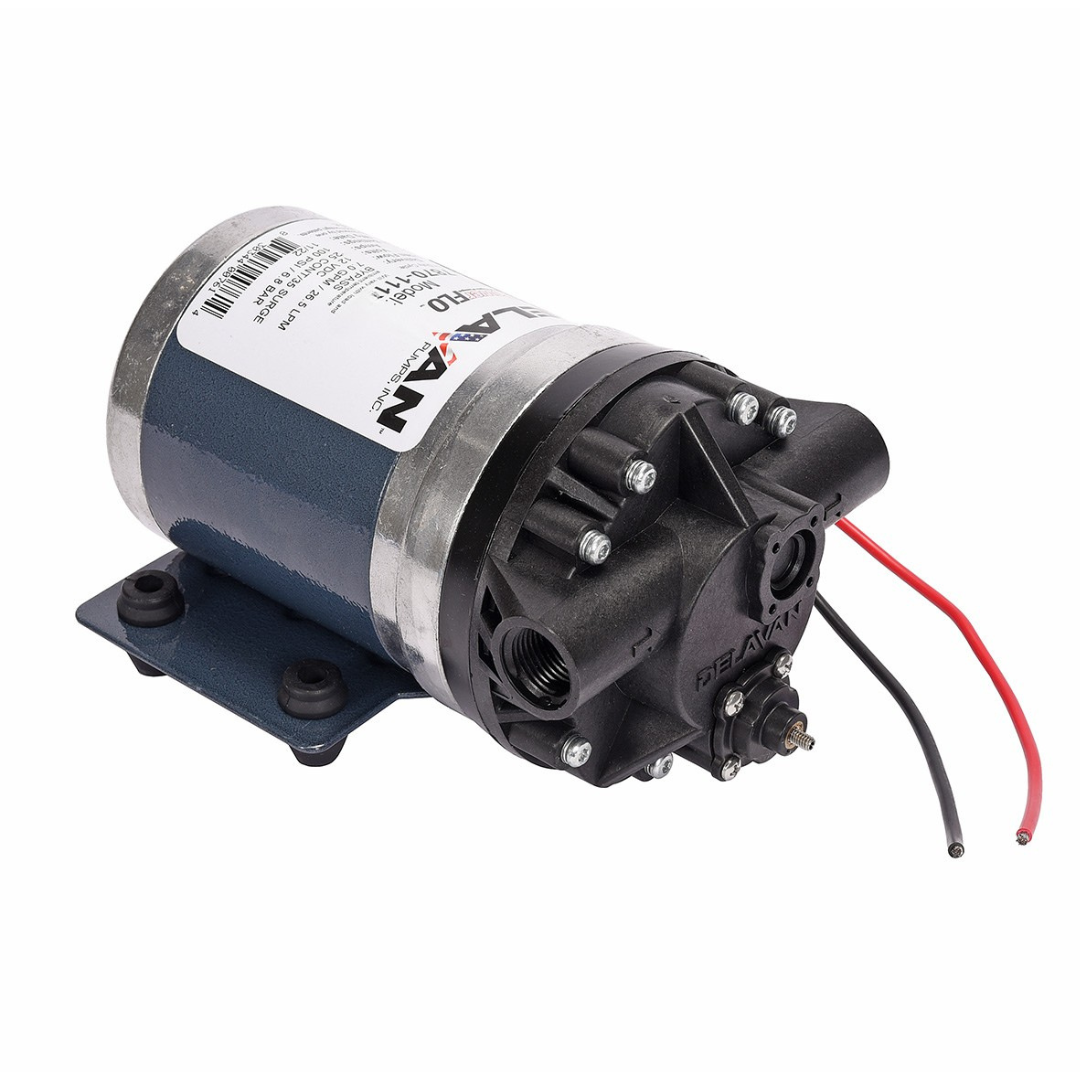

Delavan PowerFLO Electric Diaphragm Pump

(Image shown may not match exactly)

Model:  7870-111E-SB - 12 VDC Bypass

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications.  The FB2 series are 12 VDC and available in both Automatic Demand and Bypass versions.  Pumps are manufactured with Santoprene valves & diaphragms for increased corrosion resistance.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

• Max flow: 7 GPM
• Max pressure: 60 PSI
• Inlet/Outlet: ½" FNPT
• Maximum temperature: 140° F
• Max suction: 14'

• Motor: 12 VDC permanent magnet, thermally protected, splash proof. Wire leads included.
