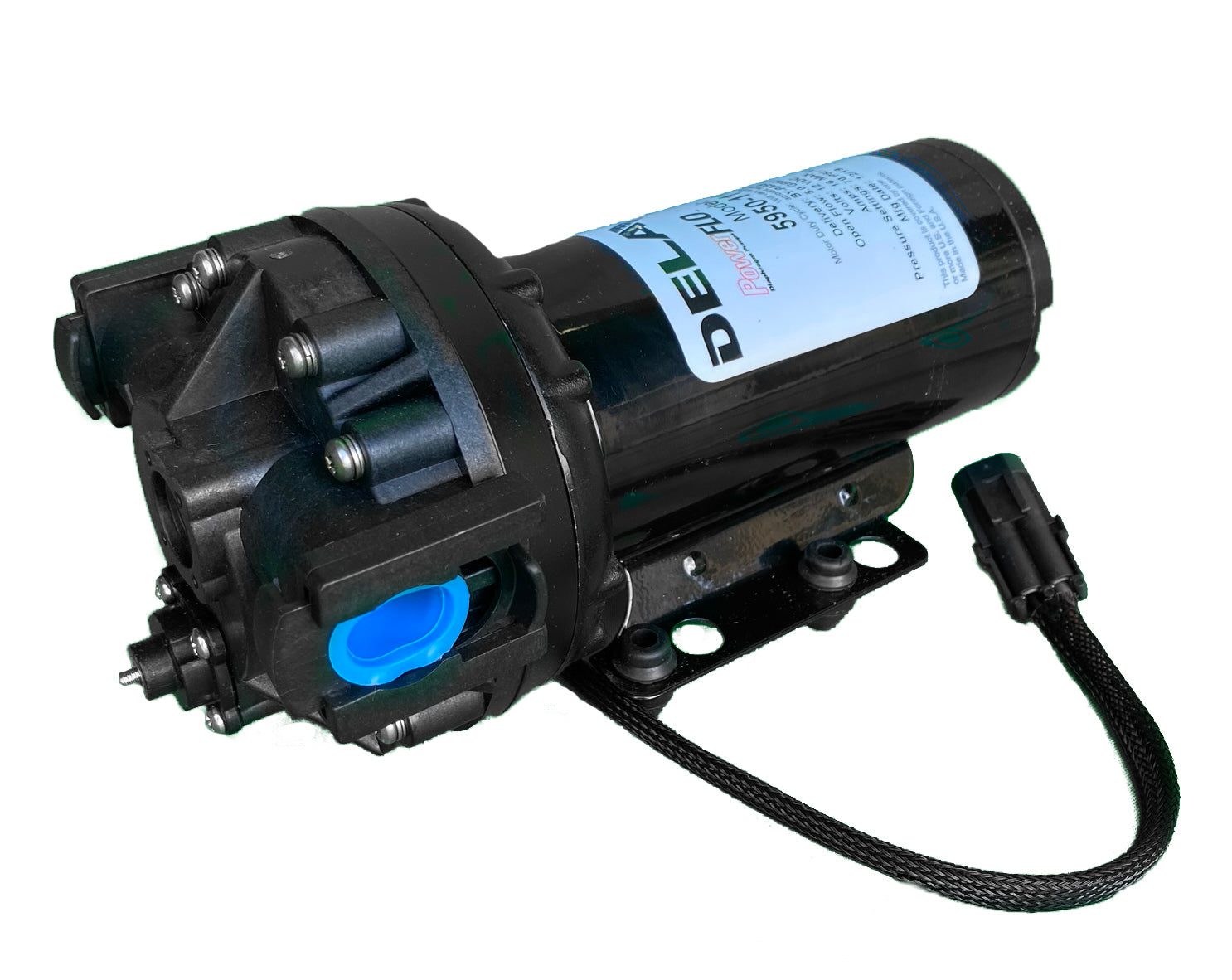

With a max suction lift of 14 feet and maximum temperature of 140 degrees F, this bypass version Delavan PowerFLO electric diaphragm pump is ready to tackle whatever job you have for it. It features a weatherproof electric connector, making it great for outdoor uses. In addition, it is made to resist corrosion due to the Viton valves and Santoprene diaphragm. This series of pumps also gives you options with your choice of 12 VDC or 115VAC.

** PLEASE NOTE: Pump inlet and outlet fittings are sold separately. For options, search “quick attach fittings” using the search bar or browse the related products at the bottom of this page. **

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The 5950 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions. Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Download Product Manual

• Bypass
• Self-priming up to 14 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 5 gpm
• Max pressure: 60 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Port size: 3/4" quick attach
• Max fluid temperature: 140°F
• Weight: 8 lbs
