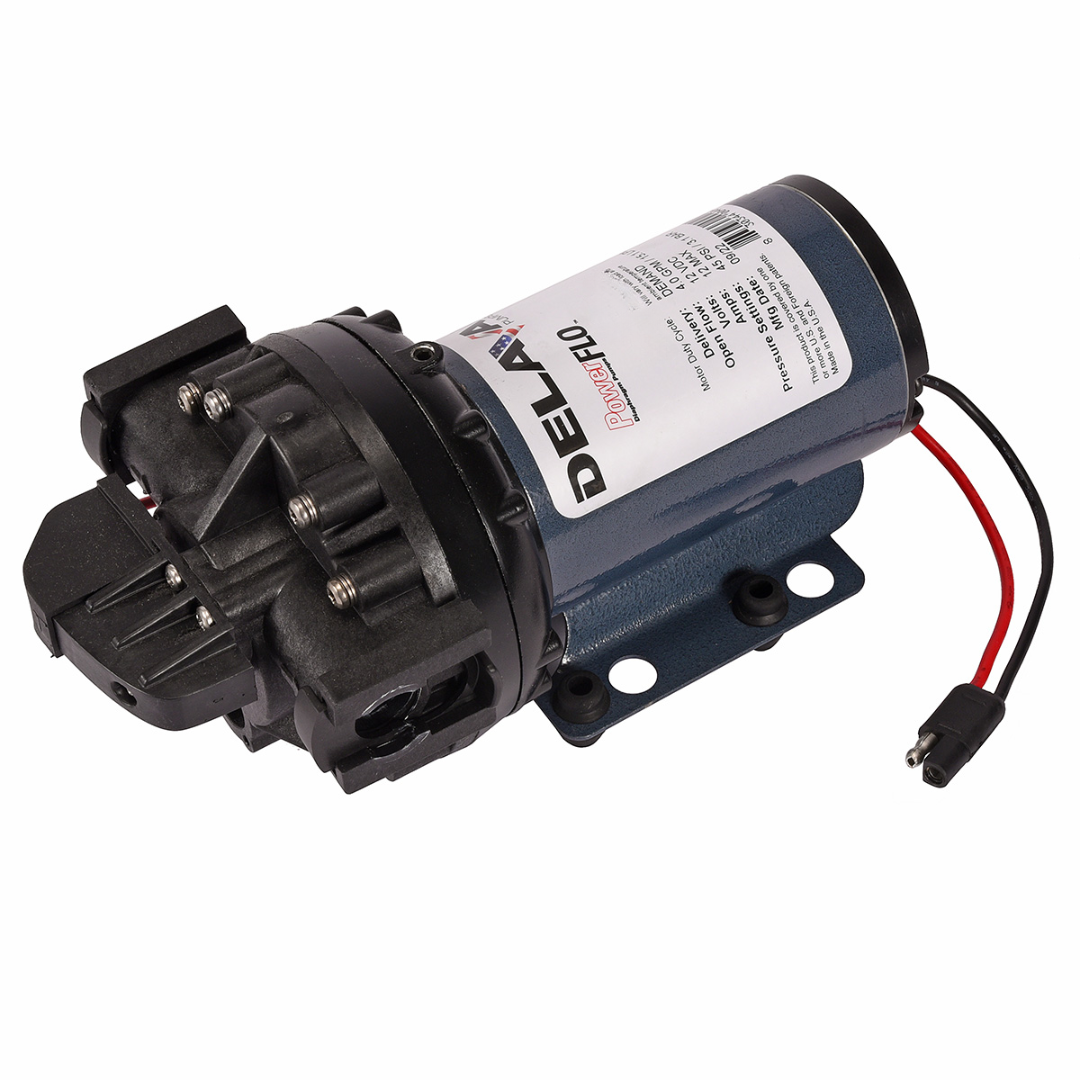

Delavan PowerFLO Electric Diaphragm Pump

(Image shown may not match exactly)

Model:  5930-201C - 12 VDC Automatic Demand

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications.  The 5930 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions.  Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

**The fittings for the pump inlet and outlet are sold separately. For fitting options, search “ quick attach fittings” in search bar.**

Download Product Manual

• Max flow: 3 GPM
• Max pressure: 45 PSI
• Inlet/Outlet: ¾" quick attach
• Maximum temperature: 140° F
• Motor: 12 VDC permanent magnet, thermally protected, splash proof, 2-pin molded connector included.
