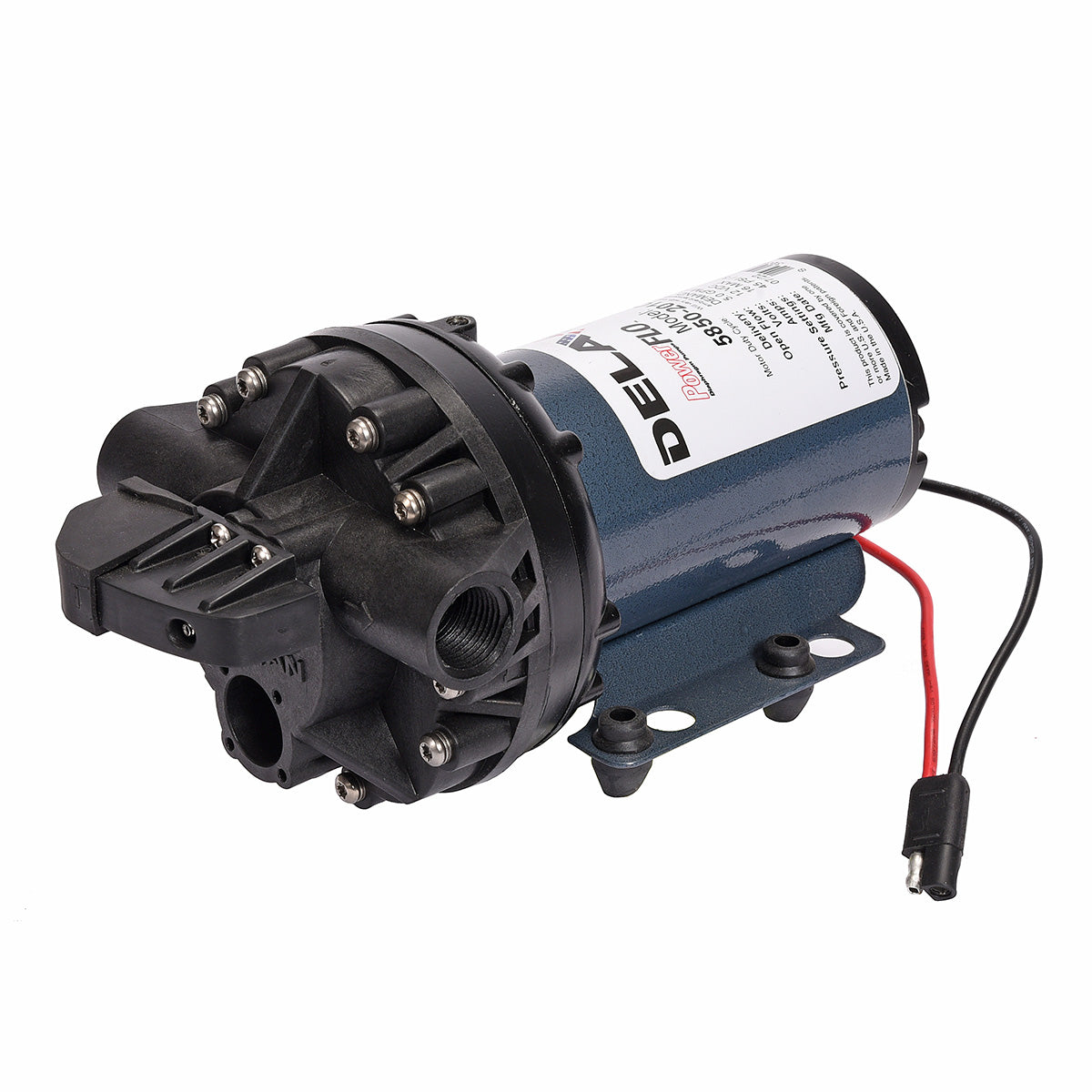

The Electric Diaphragm Pump from Delavan is made to fulfill all your pumping and spraying needs. The 5850 series is available in bypass version as well as automatic demand. The Viton valves and Santoprene diaphragm increase the resistance the internal components have to corrosive agricultural or industrial chemicals. With a pressure capacity up to 45 PSI and 5 GMP, you can count on Delavan's electric diaphragm pump.

**The fittings for the pump inlet and outlet are sold separately. If you are unsure of what you need please contact a customer service representative for assistance.**

Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The 5850 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions. Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Download Product Manual

Max flow: 5 gpm Max pressure: 45 psi Inlet/Outlet: 1/2" FNPT Maximum Temperature: 140°F Max Suction Lift: 14' Motor: 12 VDC permanent magnet, thermally protected, splash proof. 2-pin molded connector included.
