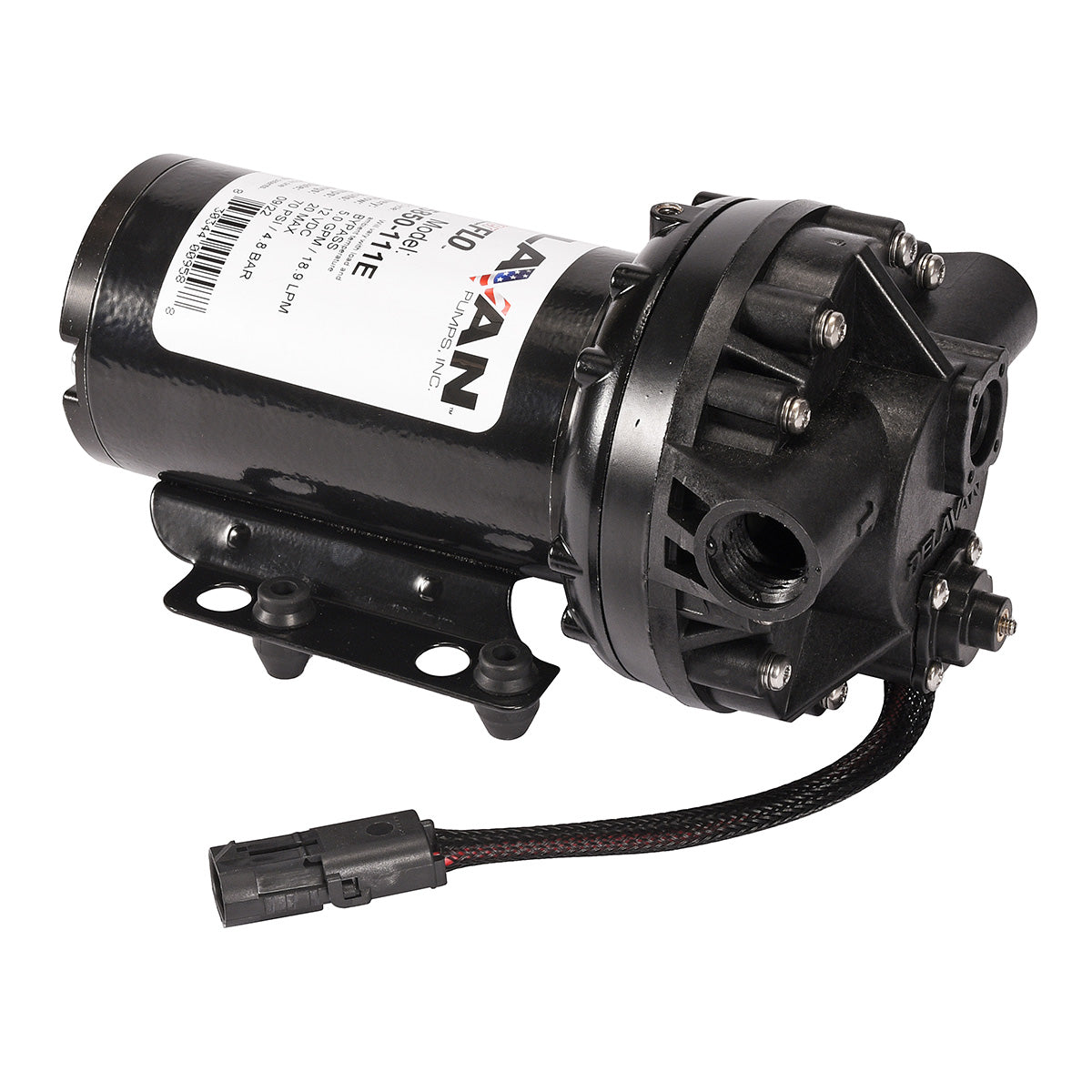

This Delavan 5850-111E PowerFLO Electric Diaphragm Pump is a bypass-version pump designed for low-pressure sprayer applications. It delivers a maximum pressure of 60 PSI and a flow rate of up to 5 GPM. Built with Viton valves and a Santoprene diaphragm, it offers enhanced corrosion resistance and durability. Ideal for industrial, agricultural, and commercial use.

** PLEASE NOTE: Pump inlet and outlet fittings are sold separately. If you are unsure which fittings you need, please contact a customer service representative for assistance. **

 Model: 5850-111E - 12 VDC Bypass with Weatherproof Electric Connector Delavan designs, engineers and manufactures a wide variety of electric pumps for many different applications. The 5850 series are 12 VDC or 115VAC and are also available in both Automatic Demand and Bypass versions. Pumps are manufactured with Viton valves and Santoprene diaphragm for increased corrosion resistance.

Download Product Manual

• Bypass
• Self-priming up to 14 vertical feet
• Can run dry without damage
• Built-in check valve
• Max flow: 5 gpm
• Max pressure: 60 psi
• Voltage: 12 VDC
• Component material: Viton® valves, Santoprene® diaphragm
• Port size: 1/2" FNPT
• Max fluid temperature: 140°F
• Weight: 8 lbs
