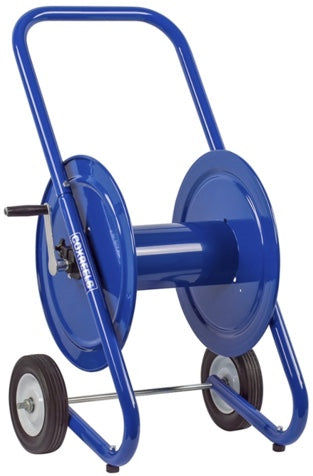

Coxreels 117-4-225-DM "Dolly Mount" 100 Series Hand Crank Manual Hose Reel

Coxreels 117-4-225-DM "Dolly Mount" 100 Series Hand Crank Manual Hose Reel

Brand:
Coxreels
Weight:
39.0 lb
Item #
1174225DM
Skip to product information
1 of 1

Coxreels 117-4-225-DM "Dolly Mount" 100 Series Hand Crank Manual Hose Reel

Coxreels 117-4-225-DM "Dolly Mount" 100 Series Hand Crank Manual Hose Reel

Brand:
Coxreels
Weight:
39.0 lb
Item #
1174225DM

Regular price $417.05
Sale price $417.05 Regular price List Price: $439.00

Earn 1,251 points with this purchase.

View full details

Collapsible content

Product Overview

Coxreels® manufactures their reels right here in the USA. Through performance, technology, and innovation they have perfected their product since opening in 1923. Choose this lightweight, compact 100 series hose reel for your spraying needs. The 117-4-225-DM includes a high quality three piece 1-1/4" steel tube frame structure on wheels and will hold up to 315' of 3/8" ID or 225' of 1/2" ID hose.

Manufacturer description

Coxreels® 100 Series hand crank hose reels are lightweight, compact, versatile reels that perform at working pressures up to 4,000 PSI. Save time and effort while increasing the safety of your work environment. Eliminate the task of manually coiling and uncoiling hose and easily transport the reel. All listed models are supplied less hose. Stainless steel models are available.
  • Fluid path with machined solid brass 90 degree full-flow NPT swivel inlet
  • High quality one piece of 1" steel tube frame structure
  • Hose control bar prevents hose from slipping off the discs
  • Base has holes for temporary or permanent installation
  • Swivel seals are EPDM (available in Nitrile and Viton)
  • Open drum design for no hassle hose wrap
  • Adjustable tension brake to prevent "free-wheeling" during operation, transport or storage
  • Direct hand crank rewind
  • Rolled edges & ribbed discs provide strength and safety

Features

  • Rewind: Manual hand crank
  • Construction: Steel, long lasting, chip resistant and rust inhibiting CPC powder coat finish (blue color)
  • Distance between discs: 12.5"
  • Standard inlet: 90° solid brass full-flow, 1/2" female NPT threads
  • Standard outlet: 1/2" male NPT threads
  • Optional rollers available: 4-way assembly top mount
  • Rated up to pressure of 4000 psi
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 3/8" to 1/2" ID
  • Capacity of Reel: 225 to 315 feet depending on ID of hose
  • 3/8" ID hose capacity: 315 fee
