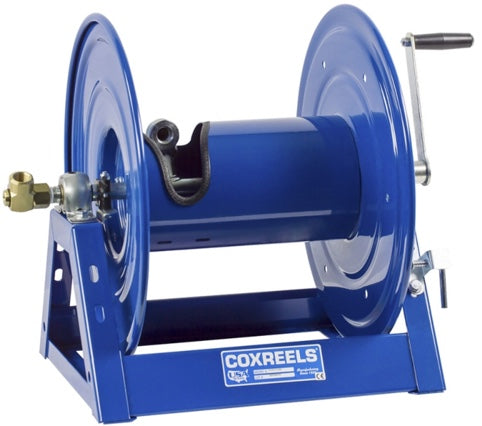

Coxreels 1125-6-50 1125 Series Hand Crank Manual Hose Reel
Overview:
Coxreels® manufactures their reels right here in the USA. Through performance, technology, and innovation they have perfected their product since opening in 1923. Designed with the industry professional in mind - 1125 series reels are durable and user friendly. The 1125-6-50 features a welded "A" frame base and will hold up to 75' of 3/4" ID or 50' of 1" ID hose.
Manufacturer Description:
Coxreels® 1125 Series hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap. All listed models are supplied less hose. Stainless steel models are available.
- Machined solid brass 90 degree full flow NPT swivel (nickel plated steel swivel on 1" models)
- All welded steel "A" frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
- Adjustable tension brake to prevent "free-wheeling" during operation
- Long-handled locking pin to secure reel from rotation during transport or storage
- Solid steel direct hand
Features:
- Rewind: Manual hand crank
- Construction: Steel, long lasting, chip resistant and rust inhibiting CPC powder coat finish (blue color)
- Distance between discs: 15.5"
- Standard inlet: 90° nickel plated steel, 1" female NPT threads
- Standard outlet: 1" female NPT threads
- Optional rollers available: 4-way or 3-way assembly available
- Rated up to pressure of 3000 psi
- Consult factory for other pressures and temperatures
- Hose/Cable Size: 3/4" to 1" ID
- Capacity of Reel: 50 to 75 feet depending on ID of hose
- 3/4" ID hose capacity: 75 feet
