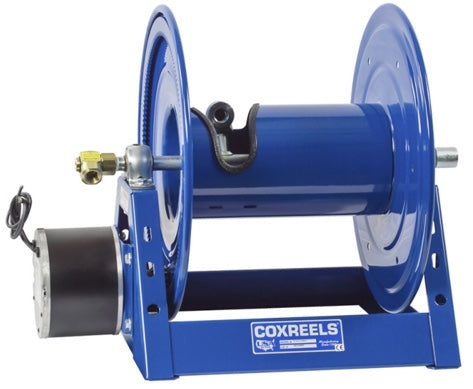

Coxreels® 1125-5-100-E-XXY 1125 Series Electric Hose Reel

Coxreels® 1125-5-100-E-XXY 1125 Series Electric Hose Reel

Brand:
Coxreels
Weight:
55.0 lb
Item #
11255100EXXY
Skip to product information
1 of 1

Coxreels® 1125-5-100-E-XXY 1125 Series Electric Hose Reel

Coxreels® 1125-5-100-E-XXY 1125 Series Electric Hose Reel

Brand:
Coxreels
Weight:
55.0 lb
Item #
11255100EXXY

Regular price $932.90
Sale price $932.90 Regular price List Price: $982.00

Earn 2,799 points with this purchase.

View full details

Collapsible content

Product Overview

Coxreels® manufactures their reels right here in the USA. Through performance, technology, and innovation they have perfected their product since opening in 1923. Designed with the industry professional in mind - 1125 series reels are durable and user friendly. The 1125-5-100-E-XXY electric rewind reel features a welded "A" frame base and will hold up to 200' of 1/2" ID or 100' of 3/4" ID hose.

Manufacturer description

Coxreels® 1125 Series hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap. All listed models are supplied less hose. Stainless steel models are available.
  • Machined solid brass 90 degree full flow NPT swivel (nickel plated steel swivel on 1" models)
  • All welded steel "A" frame construction for superior reel structure
  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
  • Adjustable tension brake to prevent "free-wheeling" during operation
  • Long-handled locking pin to secure reel from rotation during transport or storage
  • Solid steel direct hand crank with smooth round handle
  • Professional grade heavy duty steel construction
  • Durable proprietary CPC powder coat process
  • Rolled edges & ribbed discs provide strength & safety
  • 2 year manufacturer's limited warranty

Features

  • Rewind: Electric
  • Construction: Steel, long lasting, chip resistant and rust inhibiting CPC powder coat finish (blue color)
  • Distance between discs: 12"
  • 1/3 hp electric motor (12V power source needed)
  • Standard inlet: 90° solid brass full-flow, 3/4" female NPT threads
  • Standard outlet: 3/4" female NPT threads
  • Optional rollers available: 4-way or 3-way assembly available
  • Rated up to pressure of 3000 psi
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/2" to 3/4" ID
  • Capacity of Reel: 100 to 200 feet depending on ID of hose
  • 1/2" ID hose capacity: 200 feet
  • 3/4" ID hose capacity: 100 feet
  • Approximate weight: 55 lbs
