Coxreels 112-3-100-CM

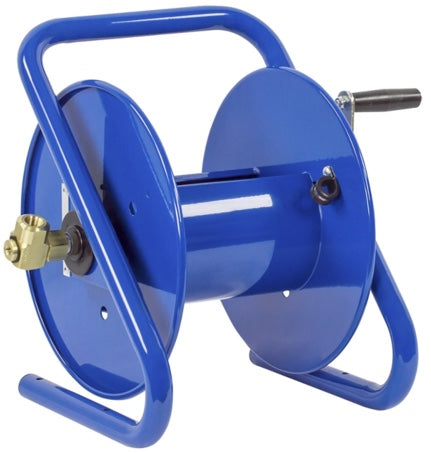

Coxreels 112-3-100-CM "Caddy Mount" 100 Series Hand Crank Manual Hose Reel

Item Code:
1123100CM
Weight:
18.0 lb
Manufacturer:
Coxreels
Our price:
$207.10
List price:
$218.00
Overview:

Coxreels® manufactures their reels right here in the USA. Through performance, technology, and innovation they have perfected their product since opening in 1923. Choose this lightweight, compact 100 series hose reel for your spraying needs. The 112-3-100-CM includes a high quality one piece 1" steel tube frame structure and will hold up to 100' of 3/8" ID hose.

Manufacturer Description:

Coxreels® 100 Series hand crank hose reels are lightweight, compact, versatile reels that perform at working pressures up to 4,000 PSI. Save time and effort while increasing the safety of your work environment. Eliminate the task of manually coiling and uncoiling hose and easily transport the reel. All listed models are supplied less hose. Stainless steel models are available.
  • Fluid path with machined solid brass 90 degree full-flow NPT swivel inlet
  • High quality one piece of 1" steel tube frame structure
  • Hose control bar prevents hose from slipping off the discs
  • Base has holes for temporary or permanent installation
  • Swivel seals are EPDM (available in Nitrile and Viton)
  • Open drum design for no hassle hose wrap
  • Adjustable tension brake to prevent "free-wheeling" during operation, transport or storage
  • Direct hand crank rewind
  • Rolled edges & ribbed discs provide strength and safety

Features:

  • Rewind: Manual hand crank
  • Construction: Steel, long lasting, chip resistant and rust inhibiting CPC powder coat finish (blue color)
  • Distance between discs: 8"
  • Standard inlet: 90° solid brass full-flow, 3/8" female NPT threads
  • Standard outlet: 3/8" male NPT threads
  • Optional rollers available: 4-way assembly top mount
  • Rated up to pressure of 4000 psi
  • Consult factory for other pressures and temperatures
  • Hose/Cable Size: 1/4" to 3/8" ID
  • Capacity of Reel: 100 to 150 feet depending on ID of hose
  • 1/4" ID hose capacity: 150 feet
