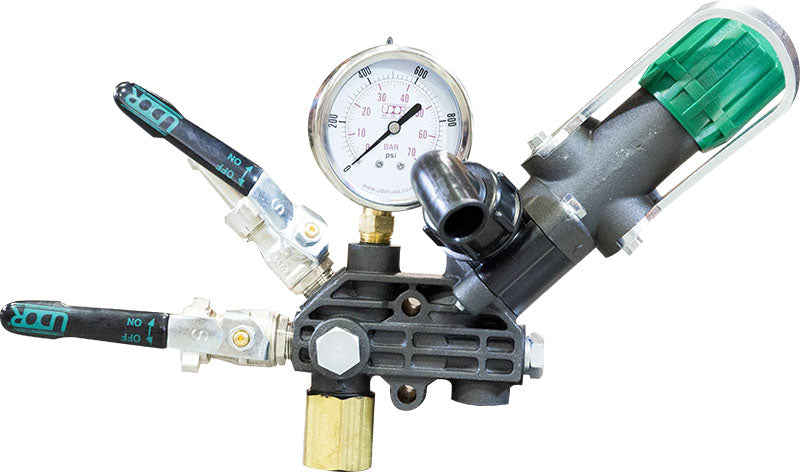

With an included mounting bracket, this Udor pump or remote mounted control unit works great for piston, roller, plunger and diaphragm pumps. Whatever you need, this unit will allow you to easily adjust pressure with its regulator. In addition, the _" hose barb inlet port on the manual dump lever is convenient and easy to use. The unit includes a pressure gauge and two _" ball valve discharge ports.
Remote mounted Universal Control Unit with adjustable pressure regulator & manual dump lever with 3/4" hose barb inlet port. Includes two 1/2" ball valve discharge ports & pressure gauge. For use with diaphragm, plunger, piston or roller pumps. Mounting Bracket is included.
- Remote mount
- Max flow: 20 gpm
- Max pressure: 350 psi
- Port sizes: 3/4" hose barb bypass, two 1/2" hose barb outlets with individual shut-offs
- Pressure gauge: 0-350 psi, color coded, glycerin filled
- Weight: 3 lbs
