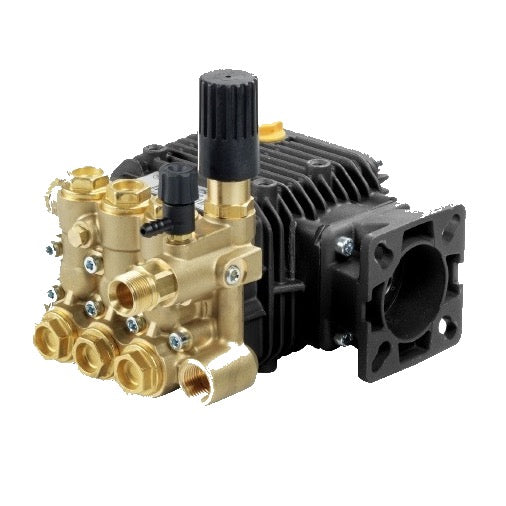

Triplex Plunger Pump

• Direct Drive with Gas Flange 3.0–6.5 HP SAE
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 2,200 PSI
• Max. Pump Speed: 3400 RPM
• Shaft Diameter: 3/4” Hollow
• Max. Horsepower Requirements: 6.5 GHP
• Max. Fluid Temp.: 145°F
• Inlet Ports (2): 1/2” FPT
• Discharge Ports (2): 3/8” FPT
• Drive Side: Reversible crankcase for right- or left-hand mounting
• Forged brass head
• Solid ceramic plungers
• Weight: 13.4 lb.
