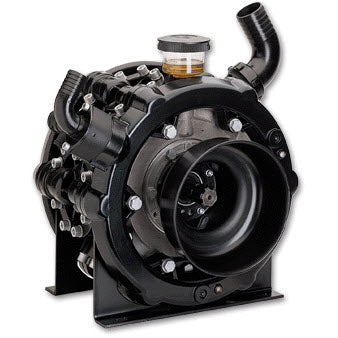

Comet BP305 Diaphragm Pump

Comet BP305 Diaphragm Pump

Brand:
Comet
Weight:
150.0 lb
Item #
BP305
1 1

Comet BP305 Diaphragm Pump

Comet BP305 Diaphragm Pump

Brand:
Comet
Weight:
150.0 lb
Item #
BP305

$3,373.00
$3,373.00 List Price: $5,189.91

Free Shipping on Qualified Orders Over $100

In stock orders placed within

ship out same day. Learn more

Earn 10,119 points with this purchase.

See Details

View full details

Product Overview

Comet BP305 Diaphragm Pump

**Ships Truck Line**

78 gpm, 290 psi, 2-1/4" Inlet & 1-3/4" Outlet

Shaft Ouput:  1-3/8" 6 Spline Male PTO Throughshaft

Comet BP series diaphragm pumps have external plastic or plastic coated manifolds for extra resistance to chemicals.  Designed for low pressure applications such as herbicides, fertilizers and other boom applications.  These pumps are also used in a variety of industrial applications such as dust suppression and hydrostatic testing.

Parts breakdown

Diagram

Diagram parts

Parts list

  • Cap
    • Ref No: 1
    • Part No: 04020143
    • Qty Req: 1
    Our price: $11.29 List price: $13.28
  • O-Ring
    • Ref No: 2
    • Part No: 12100373
    • Qty Req: 1
    Our price: $2.04 List price: $2.40
  • Oil Bowl
    • Ref No: 3
    • Part No: 04210012
    • Qty Req: 1
    Our price: $62.13 List price: $73.09
  • O-Ring
    • Ref No: 4
    • Part No: 12100002
    • Qty Req: 1
    Our price: $0.92 List price: $1.08
  • Reducer
    • Ref No: 5
    • Part No: 28250038
    • Qty Req: 1
    Our price: $23.64 List price: $27.81
  • Pump Crankcase
    • Ref No: 7
    • Part No: 04030131
    • Qty Req: 1
    Our price: $2,290.45 List price: $2,694.65
  • Retaining Clip
    • Ref No: 8
    • Part No: 30200031
    • Qty Req: 1
    Our price: $1.04 List price: $1.22
  • Oil Seal
    • Ref No: 9
    • Part No: 00190068
    • Qty Req: 1
    Our price: $19.95 List price: $23.47
  • B&G Aerosol Delivery Unit Kit (Blue)
    • Ref No: 10
    • Part No: 24000050
    • Qty Req: 2
    Our price: $145.42 List price: $171.08
  • Screw
    • Ref No: 11
    • Part No: 36070220
    • Qty Req: 6
    Our price: $1.84 List price: $2.16
  • Spring Washer
    • Ref No: 12
    • Part No: 28190018
    • Qty Req: 6
    Our price: $0.99 List price: $1.17
  • Ball Bearing
    • Ref No: 13
    • Part No: 04380049
    • Qty Req: 1
    Our price: $201.34 List price: $236.87
  • Spacer
    • Ref No: 14
    • Part No: 06010264
    • Qty Req: 1
    Our price: $13.16 List price: $15.48
  • Connecting Rod Washer
    • Ref No: 15
    • Part No: 28130030
    • Qty Req: 1
    Our price: $71.37 List price: $83.97
  • Connecting Rod Ring
    • Ref No: 16
    • Part No: 00100003
    • Qty Req: 2
    Our price: $85.59 List price: $100.69
  • Needle Bearing
    • Ref No: 17
    • Part No: 04370076
    • Qty Req: 1
    Our price: $889.98 List price: $1,047.04
  • Key
    • Ref No: 18
    • Part No: 16020018
    • Qty Req: 1
    Our price: $4.91 List price: $5.78
  • Throughshaft
    • Ref No: 19
    • Part No: 00010376
    • Qty Req: 1
    Our price: $841.64 List price: $990.17
  • O-Ring
    • Ref No: 24
    • Part No: 12100092
    • Qty Req: 1
    Our price: $8.59 List price: $10.10
  • Support Cover
    • Ref No: 25
    • Part No: 04050064
    • Qty Req: 1
    Our price: $329.66 List price: $387.84
  • Washer
    • Ref No: 26
    • Part No: 28110098
    • Qty Req: 6
    Our price: $0.48 List price: $0.57
  • Screw
    • Ref No: 27
    • Part No: 36070226
    • Qty Req: 6
    Our price: $3.11 List price: $3.66
  • Gasket
    • Ref No: 28
    • Part No: 12090002
    • Qty Req: 1
    Our price: $0.68 List price: $0.80
  • Plug
    • Ref No: 29
    • Part No: 32000001
    • Qty Req: 1
    Our price: $8.25 List price: $9.70
  • Connecting Rod Set
    • Ref No: 30
    • Part No: 02050063
    • Qty Req: 1
    Our price: $628.47 List price: $739.38
  • Piston
    • Ref No: 31
    • Part No: 24090078
    • Qty Req: 6
    Our price: $185.90 List price: $218.70
  • Compression Ring
    • Ref No: 32
    • Part No: 00200003
    • Qty Req: 6
    Our price: $23.90 List price: $28.12
  • Piston Sleeve
    • Ref No: 33
    • Part No: 04000075
    • Qty Req: 6
    Our price: $280.47 List price: $329.97
  • Diaphragm (Buna)
    • Ref No: 34
    • Part No: 18000012
    • Qty Req: 6
    Our price: $40.55 List price: $47.70
  • Diaphragm (Desmopan)
    • Ref No: 34
    • Part No: 18000098
    • Qty Req: 6
    Our price: $49.87 List price: $58.67
  • Disc
    • Ref No: 35
    • Part No: 06020044
    • Qty Req: 6
    Our price: $21.52 List price: $25.32
  • Special Screw
    • Ref No: 36
    • Part No: 36050093
    • Qty Req: 6
    Our price: $24.33 List price: $28.62
  • Connecting Rod Pin
    • Ref No: 37
    • Part No: 30110011
    • Qty Req: 6
    Our price: $37.71 List price: $44.37
  • Snap Ring
    • Ref No: 38
    • Part No: 30200006
    • Qty Req: 12
    Our price: $0.60 List price: $0.70
  • Screw
    • Ref No: 42
    • Part No: 36090157
    • Qty Req: 2
    Our price: $1.33 List price: $1.57
  • Suction Manifold
    • Ref No: 46
    • Part No: 04150043
    • Qty Req: 1
    Our price: $900.12 List price: $1,058.97
  • Washer
    • Ref No: 47
    • Part No: 28110095
    • Qty Req: 12
    Our price: $0.61 List price: $0.72
  • Hexagonal Screw
    • Ref No: 48
    • Part No: 36070219
    • Qty Req: 12
    Our price: $4.54 List price: $5.34
  • Delivery Manifold
    • Ref No: 49
    • Part No: 04150044
    • Qty Req: 1
    Our price: $900.12 List price: $1,058.97
  • O-Ring
    • Ref No: 50
    • Part No: 12100030
    • Qty Req: 2
    Our price: $1.84 List price: $2.17
  • Delivery Hose Tail
    • Ref No: 51
    • Part No: 28030360
    • Qty Req: 1
    Our price: $35.14 List price: $41.34
  • O-Ring
    • Ref No: 52
    • Part No: 12100180
    • Qty Req: 1
    Our price: $0.77 List price: $0.90
  • Hose Tail Fixing Plate
    • Ref No: 54
    • Part No: 24040156
    • Qty Req: 1
    Our price: $23.75 List price: $27.94
  • Bolt
    • Ref No: 55
    • Part No: 36090169
    • Qty Req: 2
    Our price: $1.94 List price: $2.28
  • Plug
    • Ref No: 56
    • Part No: 32000064
    • Qty Req: 1
    Our price: $45.67 List price: $53.73
  • Valve Seat
    • Ref No: 57
    • Part No: 30090125
    • Qty Req: 12
    Our price: $52.34 List price: $61.58
  • Viton O-Ring
    • Ref No: 58
    • Part No: 12100107
    • Qty Req: 12
    Our price: $6.11 List price: $7.19
  • Valve Plunger
    • Ref No: 59
    • Part No: 36040027
    • Qty Req: 12
    Our price: $6.67 List price: $7.85
  • Spring
    • Ref No: 60
    • Part No: 18020196
    • Qty Req: 12
    Our price: $2.70 List price: $3.18
  • Valve Cage
    • Ref No: 61
    • Part No: 12050032
    • Qty Req: 12
    Our price: $12.88 List price: $15.15
  • Gasket
    • Ref No: 62
    • Part No: 12010069
    • Qty Req: 12
    Our price: $4.19 List price: $4.93
  • Valve Assembly
    • Ref No: 63
    • Part No: 12200042
    • Qty Req: 12
    Our price: $57.72 List price: $67.91
  • Pump Manifold
    • Ref No: 64
    • Part No: 32180120
    • Qty Req: 6
    Our price: $280.47 List price: $329.97
  • Washer
    • Ref No: 65
    • Part No: 28110103
    • Qty Req: 48
    Our price: $0.72 List price: $0.85
  • Screw
    • Ref No: 66
    • Part No: 36090158
    • Qty Req: 48
    Our price: $3.27 List price: $3.85
  • Wing Nut
    • Ref No: 70
    • Part No: 12000057
    • Qty Req: 1
    Our price: $18.35 List price: $21.59
  • Elbow
    • Ref No: 71
    • Part No: 28010070
    • Qty Req: 1
    Our price: $45.02 List price: $52.96
  • O-Ring
    • Ref No: 72
    • Part No: 12100387
    • Qty Req: 2
    Our price: $2.61 List price: $3.07
  • Washer
    • Ref No: 74
    • Part No: 28110099
    • Qty Req: 2
    Our price: $1.24 List price: $1.46
  • Hose Adapter
    • Ref No: 75
    • Part No: 28030417
    • Qty Req: 1
    Our price: $37.04 List price: $43.58
  • Throughshaft 1-3/8"-1-3/8"
    • Ref No: 78
    • Part No: 00010396
    • Qty Req: 1
    Our price: $39.04 List price: $45.93
  • 5026.0127 BP265/305 Diaphragm & Valve Kit
    • Ref No: 101
    • Part No: 50260127
    • Qty Req: 1
    Our price: $764.46 List price: $1,092.08
